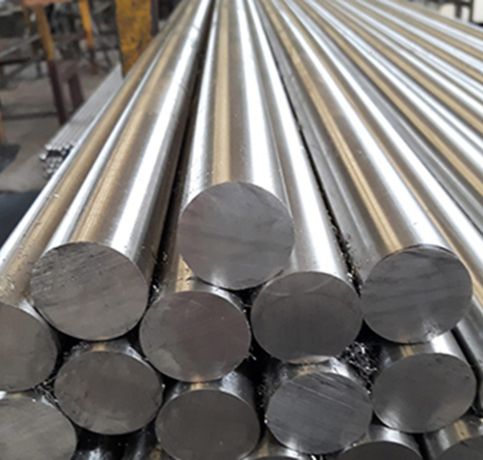

To satisfy the changing needs of the industrial and engineering sectors, George Metals, a reputable manufacturer and supplier in Houston, USA, provides premium-quality stainless steel 316Ti round bars and rods. George Metals, renowned for their dedication to quality and client satisfaction, offers high-performance, corrosion-resistant 316Ti bars that are appropriate for corrosive and high-temperature settings. These bars are perfect for critical applications because they are stabilised with titanium, which increases their resistance to sensitisation. The chemical, marine, and pharmaceutical industries are just a few of the many industries that George Metals guarantees on-time delivery and consistent quality through a robust supply network and adherence to international quality standards.
About 16–18% chromium, 10–14% nickel, and 2–3% molybdenum make up stainless steel 316Ti round bars and rods. Titanium (approximately 0.5%) is added to increase resistance to intergranular corrosion. With a yield strength of 205 MPa and a tensile strength of roughly 515 MPa, this titanium-stabilized grade provides exceptional mechanical strength. Even at high temperatures, it retains good toughness and ductility. Molybdenum is added to improve resistance to pitting and crevice corrosion, which makes it appropriate for harsh settings like chemical processing and the maritime industry.
| Specifications | ASTM A276 / ASME SA276 & ASTM A479 / ASME SA276 |
| Range | 3.17 MM TO 350 MM DIA |
| Dia Meter | 25mm to 152mm |
| Length | 1 to 6 Meters, Custom Cut Lengths |

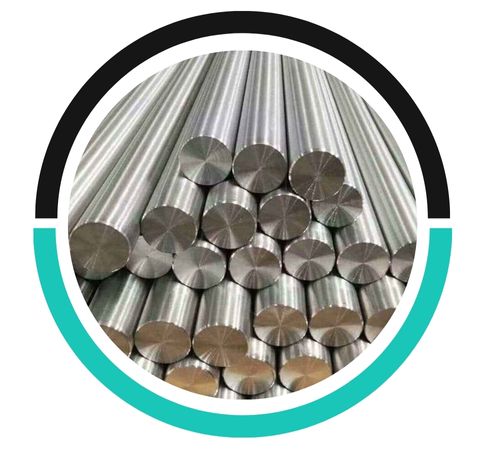

| Finish | Bright, Polish & Black |

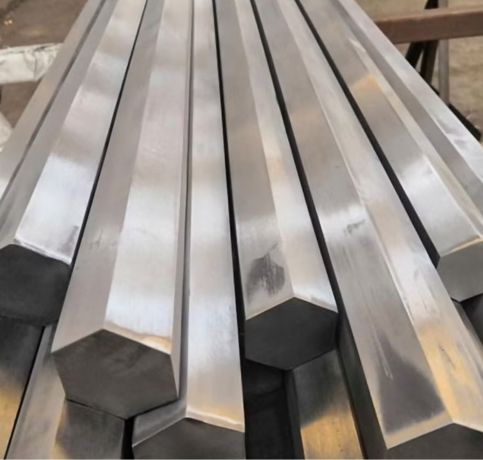

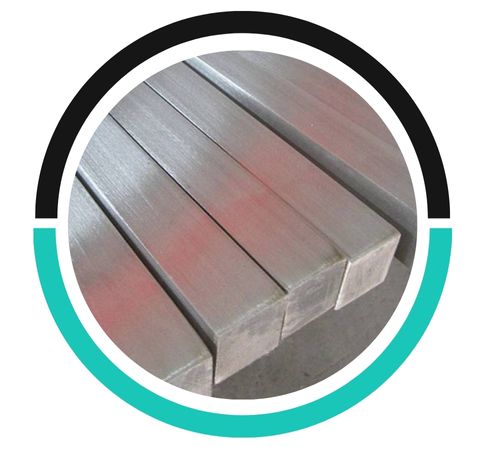

| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging etc |
| Condition | Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316TI | min. | – | – | – | – | – | 16.0 | 2.0-3.0 | 10.0 | – |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | 0.1 | ||
|
Yield Strength
0.2% Proof
(MPa) |
Tensile strength
(MPa)
|
Elongation
(% in 50mm) |
Hardness (HRB) | |
|---|---|---|---|---|
|
MIN |
170 |
485 |
40.00 |
|
|
MAX |
95 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | BS | AFNOR | EN |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 08Ch17N13M2T | 320S31 | Z6CNDT17‐12 | X6CrNiMoTi17-12-2 |
| Density | kg/dm³ | 8 |
|---|---|---|
| Modulus of elasticity | GPa | 200 |
| Thermal conductivity | W/m°C | 15 |
| Heat capacity | J/kg°C | 500 |
| Electrical resistivity | µΩm | 0.75 |
| Poissons ratio | 0.3 |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Industries that demand high corrosion resistance and heat stability frequently use stainless steel 316Ti round bars and rods. Heat exchangers, pressure vessels, chemical tanks, and flue gas cleaning systems are examples of common applications. Because of its resistance to corrosion caused by chloride, 316Ti is the material of choice in the marine industry. Because it can tolerate high temperatures and maintain hygienic conditions, it is also widely used in the food processing and pharmaceutical industries. It is appropriate for welded structures in high-temperature settings due to the titanium addition, which guarantees structural longevity and integrity, especially in petrochemical and power generation facilities.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
