With decades of experience in the field, George Metals, a prominent manufacturer and supplier of premium metal products, is headquartered in Houston, USA. George Metals, which specializes in providing a wide range of advanced metal solutions, is renowned for its outstanding performance and dependability. The Tool and Die Steel H13 Bar, which is well-known for its exceptional strength and heat resistance, is one of its most notable products. George Metals is trusted in a variety of industries, including manufacturing, automotive, and aerospace. The company is dedicated to providing materials that are more precise, long-lasting, and perform well under extreme stress.

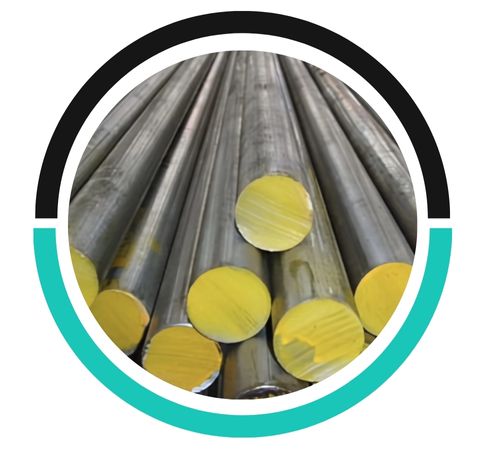

Die steel and tools The exact alloy composition of George Metals’ H13 Bars is as follows: 0.4% carbon, 5.2% chromium, 1.3% molybdenum, 1.0% vanadium, 0.3% manganese, 0.3% silicon, and trace amounts of phosphorus and sulfur. These components provide exceptional heat tolerance, wear resistance, and toughness. Mechanical characteristics of H13 steel bars include remarkable resistance to heat shock, tensile strength of up to 1,450 MPa, and hardness of 45–55 HRC. They are perfect for demanding applications in harsh, high-heat working environments because of their exceptional machinability and strength retention at high temperatures.
| ASTM A681 | C | Mn | P | S | Si | Cr | V | Mo | ||||||
| H13 | 0.32 | 0.45 | 0.2 | 0.6 | 0.03 | 0.03 | 0.8 | 1.25 | 4.75 | 5.5 | 0.8 | 1.2 | 1.1 | 1.75 |
| DIN ISO 4957 | C | Mn | P | S | Si | Cr | V | Mo | ||||||
| 1.2344 /X40CrMoV5-1 | 0.35 | 0.42 | 0.25 | 0.5 | 0.03 | 0.02 | 0.8 | 1.2 | 4.8 | 5.5 | 0.85 | 1.15 | 1.1 | 1.5 |
| JIS G4404 | C | Mn | P | S | Si | Cr | V | Mo | ||||||
| SKD61 | 0.35 | 0.42 | 0.25 | 0.5 | 0.03 | 0.02 | 0.8 | 1.2 | 4.8 | 5.5 | 0.8 | 1.15 | 1.0 | 1.5 |
| Properties | Metric | Imperial |
| Tensile strength, ultimate (@20°C/68°F, varies with heat treatment) | 1200 – 1590 MPa | 174000 – 231000 psi |
| Tensile strength, yield (@20°C/68°F, varies with heat treatment) | 1000 – 1380 MPa | 145000 – 200000 psi |
| Reduction of area (@20°C/68°F) | 50.00% | 50.00% |
| Modulus of elasticity (@20°C/68°F) | 215 GPa | 31200 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Country | USA | German | Japan |
| Standard | ASTM A681 | DIN EN ISO 4957 | JIS G4404 |
| Grades | H13 | 1.2344/X40CrMoV5-1 | SKD61 |
| Properties | Conditions | ||
|---|---|---|---|
| T (ºC) | Treatment | ||
| Thermal expansion | 10.4 x 10-6/ºC | 20-100 | – |
| Thermal conductivity | 28.6 W/mK | 215 | – |
When choosing Tool and Die Steel H13 bars, consider factors such as hardness, heat resistance, wear resistance, toughness, machinability, and the specific requirements of the application, including temperature and load conditions.
Tool and Die Steel H13 bars offer limited corrosion resistance due to their high alloy content, but they can still be susceptible to rusting in harsh environments. To improve corrosion resistance, they may require additional surface treatments like coating or regular maintenance to prevent degradation.
H13 Tool and Die Industries that demand extreme toughness, heat resistance, and wear durability frequently use steel bars. They are perfect for hot-working applications like extrusion tools for metals like magnesium, zinc, and aluminum, die-casting molds, and forging dies. They work well with plastic injection molds, punches, shear blades, and cutting tools because of their stability at high temperatures. H13 bars offer superior resistance to wear and thermal cracking, guaranteeing accuracy and durability in tooling operations. Because of these characteristics, they are crucial in the manufacturing, automotive, and aerospace industries where tools must withstand high levels of stress and frequent thermal cycling.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
