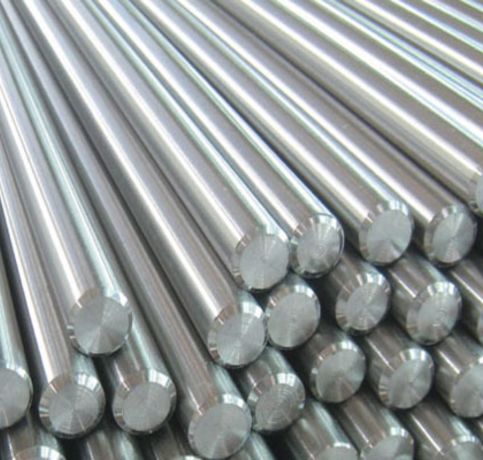

A well-known manufacturer and supplier with headquarters in Houston, Texas, George Metals specializes in providing high-performance metal solutions that meet a range of industrial needs. Our precision-engineered titanium round bars meet international quality standards and provide remarkable strength, light weight, and corrosion resistance. These bars serve vital industries like aerospace, marine, chemical processing, and medicine and come in a variety of grades, sizes, and finishes. George Metals guarantees that every product fulfills the highest standards due to its dedication to dependability and superior performance. Our Titanium Round Bars offer the perfect balance of robustness and effectiveness for high-pressure or high-temperature applications.

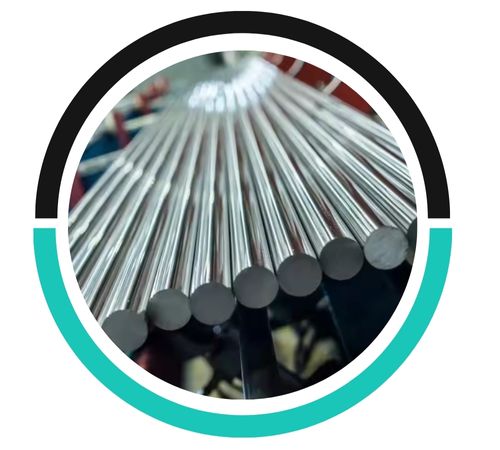

Solid cylindrical bars made mostly of pure titanium or titanium alloys are known as titanium round bars, and they are sold by George Metals. Grade 2 bars have a moderate strength and outstanding corrosion resistance because they are composed of nearly 99% pure titanium. 90% titanium, 6% aluminum, and 4% vanadium make up Grade 5, or Ti-6Al-4V, an alloy that is renowned for its exceptional strength and functionality. These bars are biocompatible, have a low density, and a high strength-to-weight ratio. Their mechanical characteristics ensure long-lasting performance in a variety of crucial industrial applications, making them appropriate for use in harsh environments that call for corrosion resistance, lightweight design, and durability.
| Grade | Gr 1, Gr 2, Gr 3, Gr 4, Gr 5, Gr 7, Gr 9, Gr 12, Gr 23, TA1-TA4, TA7-TA10, TA15-TA18, GR1-GR5, GR6,GR7, GR9, GR11, GR12, TI-6AL-4V, TI-6AL-4VELI,GR23 | |||||
| Sizes | Minimum diameter: 0.040 inch or 1.00 mm Maximum diameter: 14.000 inch or 400.00 mm | |||||
| Standard | ASTM F136, ASTM B348, ASTM F136, ASTM F67, AMS4928, ISO-5832-2(3), MIL-T-9047G, JIS etc | |||||
| Type | Ti square bar, Ti round bar, Ti hexagonal bar, Ti flat bar, Titanium Alloy Bars, Ti Billets, Forgings, and Forging Stock | |||||
| Condition | R/M /Y | |||||
| AMS Specificaton of Titanium Round Bar | AMS-T-9047 (6AL-6V-2SN), AMS-T-9047 (CP-70 GR.4), ASTM B348 (Grade 5), ASTM B348 (Grade 2), ASTM B348 (Grade 4), ASTM B348 (Grade 23), ASTM F67 (Grade 2), ASTM F67 (Grade 4), ASTM F136, ASTM F1472, MIL-T-9047 (6AL-4V), MIL-T-9047 (6AL-4V ELI), MIL-T-9047 (6AL-6V-2SN), MIL-T-9047 (CP-70 GR.4), DMS 1570, DMS 1583, AMS 4971, AMS 4921, AMS 4928, AMS 4930, AMS 4965, AMS 4967, AMS 4978, AMS 4979, AMS 6930, AMS 6931, AMS 6935, AMS 6936, AMS-T-9047 (6AL-4V), AMS-T-9047 (6AL-4V ELI) and More. | |||||
| Titanium Round Bar Uses |
|
|||||
| Titanium Round Bar Order & Packing Information | ||||||
| Min. Order: 10 Pieces (or please enquire for your customized order) Trade Terms: FOB, CIF Payment Terms: L/C, T/T Packing: as per requirement Place of Origin: Mumbai, India Means of Transport: Land, Ocean Delivery Date: one or two week Package: in wooden crate with plastic caps on each end. | ||||||
| Titanium Alloy Round Bar Grades | Commercially Pure Titanium and Titanium Alloys: 6Al-4V ELI | 6Al-4V | 6Al-6V-2SN | 6Al-2SN-4ZR-6MO | 7Al-4Mo Grade 1 | Grade 2 | Grade 4 | Grade 17 | |||||
|
Hardness, Brinell |
120 |
120 |
annealed |
|
Hardness, Knoop |
132 |
132 |
Estimated from Brinell. |
|
Hardness, Rockwell B |
70 |
70 |
annealed |
|
Hardness, Vickers |
122 |
122 |
Estimated from Brinell |
|
Tensile Strength, Ultimate |
240 MPa |
34800 psi |
– |
|
Tensile Strength, Yield |
170 – 310 MPa |
24700 – 45000 psi |
– |
|
Elongation at Break |
24 % |
24 % |
– |
|
Reduction of Area |
35 % |
35 % |
– |
|
Modulus of Elasticity |
105 GPa |
15200 ksi |
In Tension |
|
Compressive Modulus |
110 GPa |
16000 ksi |
– |
|
Poisson’s Ratio |
0.37 |
0.37 |
– |
|
Charpy Impact |
310 J |
229 ft-lb |
V-notch |
|
Shear Modulus |
45 GPa |
6530 ksi |
– |
|
Physical Properties |
Metric |
English |
|
Density |
4.51 g/cc |
0.163 lb/in³ |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51 g/cc | 0.163 lb/in³ |
|
STANDARD |
WERKSTOFF NR. |
UNS |
|
Titanium |
3.7035 / 3.7165 / 3.7235 |
R50400 / R56400 / R52400 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
Cold Drawn and Polish | 3.00 – 75.00 | 1/8 – 3.00 | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 – 75.00 | 5/6 – 2.50 | h8-h9-h10-h11 |
Peeled and Polished | 40.00 – 150.00 | 1.50 – 6.00 | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 – 50.00 | 3/4 – 2.00 | h9-h10-h11 |
Titanium Alloy Bars Standard lengths of 2010 mm up to 200 mm. Cut to size on request (tolerance +2/-0 mm).
5.0 | 45.0 |
6.0 | 50.0 |
7.0 | 55.0 |
8.0 | 60.0 |
9.0 | 65.0 |
10.0 | 70.0 |
12.0 | 75.0 |
16.0 | 80.0 |
20.0 | 90.0 |
25.0 | 100.0 |
30.0 | 130.0 |
35.0 | 160.0 |
40.0 | 201.0 |
Titanium Round Bars are commonly used in aerospace, medical, automotive, and chemical industries due to their strength, corrosion resistance, and lightweight properties.
Titanium Round Bars offer exceptional strength-to-weight ratio, excellent corrosion resistance, and high durability, making them ideal for demanding applications in extreme environments.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@georgemetals.us
Many industries that need materials that are strong, lightweight, and resistant to corrosion use titanium round bars. They are used in engine parts, fasteners, and structural elements in the aerospace industry. Because they are biocompatible, the medical industry uses them for surgical instruments, implants, and prosthetics. These bars are perfect for creating heat exchangers, pumps, and valves that operate in corrosive, harsh environments in chemical processing and maritime applications. Titanium bars are also used in the energy, automotive, and defense industries for components that must perform well in harsh conditions. They are a popular option where strength, stability, and longevity are crucial due to their adaptability and dependability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
