Based in Chennai, India, Vinit Stainless is a well-known producer and supplier of Titanium Grade 7 Bars and Rods. Known for providing high-performance titanium products, we provide precisely engineered bars and rods that satisfy international quality standards to a variety of industries. Particularly in extremely acidic and reducing environments, titanium Grade 7, an alloy of titanium and a trace amount of palladium, provides exceptional corrosion resistance. At Vinit Stainless, we offer specialised dimensions and specifications to meet a range of industrial requirements, providing reliable and reasonably priced titanium solutions to industries like chemical processing, marine, power generation, and pollution control.
Commercially pure titanium is used to make Titanium Grade 7 bars and rods, which have 0.12% to 0.25 percent palladium added for increased corrosion resistance. Titanium (balance), oxygen (maximum 0.25%), nitrogen (maximum 0.03%), hydrogen (maximum 0.015%), carbon (maximum 0.08%), iron (maximum 0.30%), and palladium are among the constituents. With a tensile strength of about 345 MPa, yield strength of about 275 MPa, and elongation of more than 20%, Grade 7 provides mechanical qualities comparable to Grade 2. This alloy is perfect for harsh chemical environments and crucial engineering applications because it combines exceptional formability, weldability, and corrosion resistance.
| Grade | ASTM B348 Ti Gr7 Flat Bar |
|---|---|

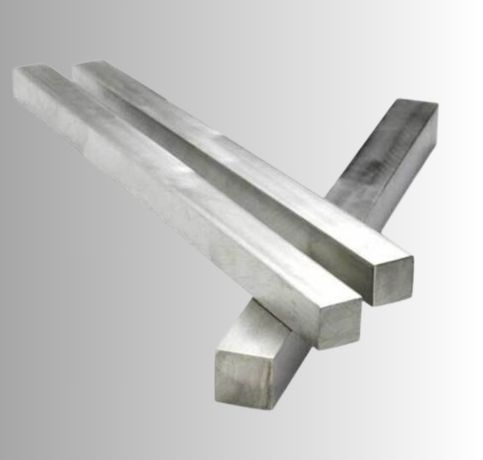

| Titanium Grade 7 Square bar size | 4 to 100mm |

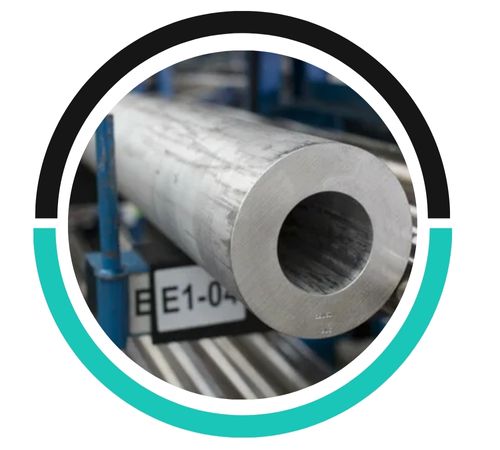

| Titanium Alloy Grade 7 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

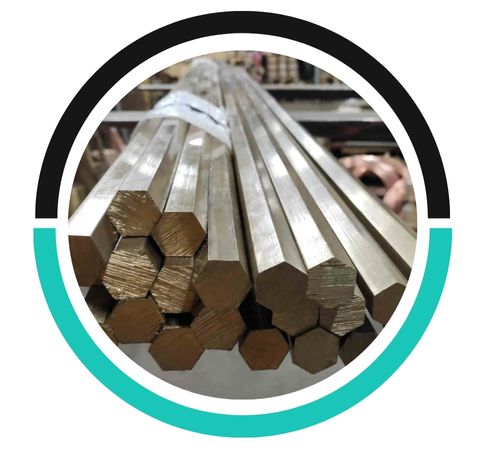

| CP Titanium Alloy Gr7 Hex Bar size | 2-100mm A/F |
| Titanium Grade 7 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

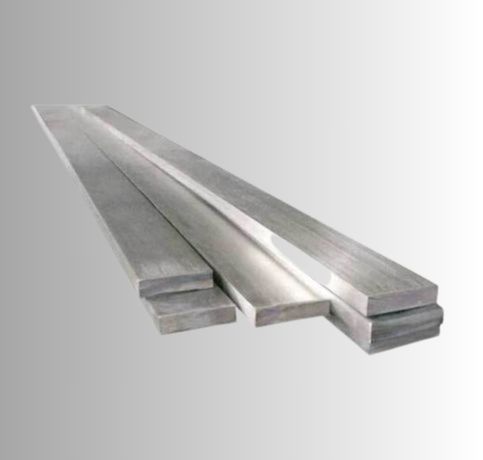

| Titanium Alloy Grade 7 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| CP Titanium Alloy Gr7 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Titanium Grade 7 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Titanium Alloy Grade 7 Section | 3.0 to 12.0mm thickness |

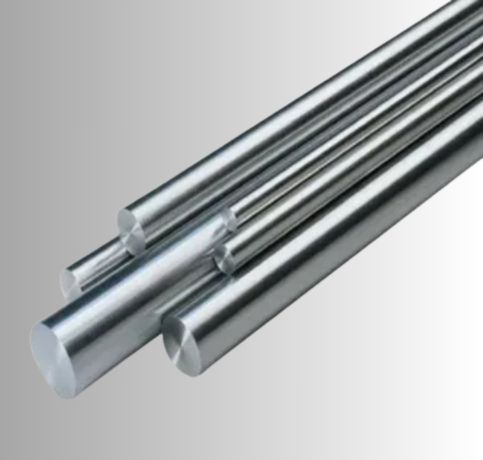

| CP Titanium Alloy Gr7 Round bar size | Diameter: 3-~800mm |
| Titanium Grade 7 Billet Size | 1/2″ to 495mm Diameter |
| Titanium Alloy Grade 7 Round Bar Standard Dimensions | Diameter / Height: |
| Titanium Grade 7 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Titanium Alloy Grade 7 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| CP Titanium Alloy Gr7 Technique | Titanium Grade 7 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Titanium Grade 7 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |

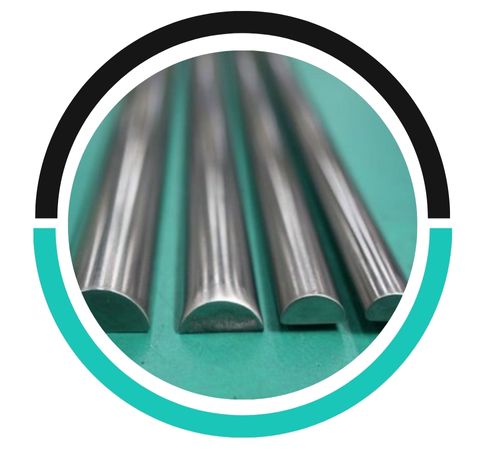

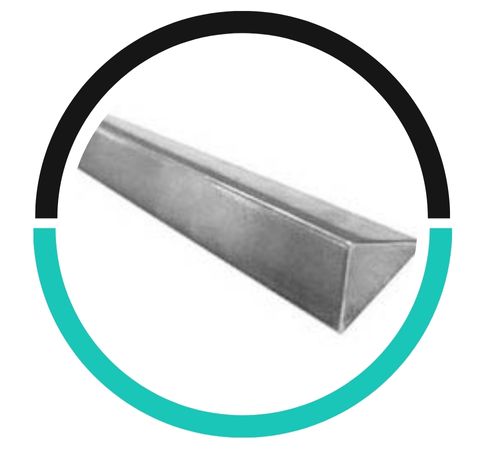

| Form | Titanium Grade 7 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Titanium Grade 7 Round bar conforms to NACE MR0175/ISO 15156 | |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 7 | 3.7235 | R52400 |
| Grade | C | Fe | N | Ti | H | O | Pd |
| Titanium Gr. 7 | 0.08 max | 0.30 max | 0.03 max | Balancen | 0.0150 max | 0.25 max | 0.20 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.163 lb/in3 | 1668 °C | Psi – 39900 , MPa – 275 | Psi – 59500 , MPa – 410 | 20 % |
| Density | Melting Range | Modulus of Elasticity (Tension) | Specific Heat | Mean Coefficient of Expansion | Thermal conductivity | Electrical Resistivity |
| kg/m3 | °C | GPa | J/kg. °C | x10 -6 / °C | W / m. °C | micro-ohm.m |
| 4,507 | 1668± 10 | 103 | 519 | 8.41 | 11.4 | 0.420 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |

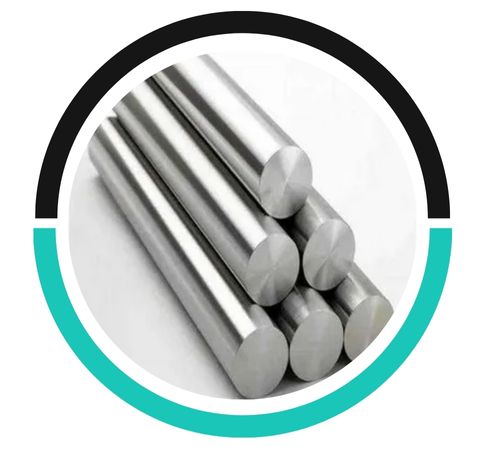

| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 7 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, Titanium Grade 7 Bars and Rods can be recycled. Titanium is highly recyclable without significant degradation of its properties, making it an environmentally sustainable material for reuse in various applications.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@georgemetals.us
No, Titanium Grade 7 Bars and Rods do not attract magnets. Titanium, including Grade 7, is a non-ferromagnetic material, meaning it has little to no magnetic properties and is not attracted to magnets.
In industries where resistance to corrosive environments is crucial, titanium grade 7 bars and rods are widely used. They are perfect for chemical processing facilities, desalination systems, and marine applications because of their exceptional resistance to reducing acids, chlorides, and saltwater, which is made possible by the addition of palladium. Reactor systems exposed to aggressive media, pressure vessels, and heat exchangers also use them. Because of its ductility and weldability, Grade 7 can be used for intricate fabrication in power plants and pollution control systems. It is also used in food processing and pharmaceutical equipment, where corrosion resistance and hygienic practices are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
