Based in Houston, Texas, George Metals is a top producer and supplier of premium titanium grade 6 bars and rods. Focussing on cutting-edge materials and precision engineering, we offer premium titanium products that are renowned for their exceptional strength, resistance to corrosion, and lightweight nature. Ti-5Al-2.5Sn, also referred to as titanium grade 6, is perfect for high-performance applications where performance and durability are crucial. Customers in the chemical, aerospace, and marine industries rely on George Metals to deliver certified, high-purity titanium solutions that meet precise specifications and are supported by dependable customer service and prompt delivery.
About 90% of Titanium Grade 6 Bars/Rods (Ti-5Al-2.5Sn) are made of titanium, with 2.5% tin and 5% aluminium serving as important alloying components. High strength, outstanding weldability, and good corrosion resistance—particularly in oxidising environments—are all provided by this alpha-phase alloy. The alloy has a yield strength of about 827 MPa, a tensile strength of about 895 MPa, and an elongation of about 10-15%. Titanium Grade 6 is perfect for structural and pressure-containing components in harsh environments like aerospace and marine applications because it performs well at high temperatures and keeps its mechanical integrity.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

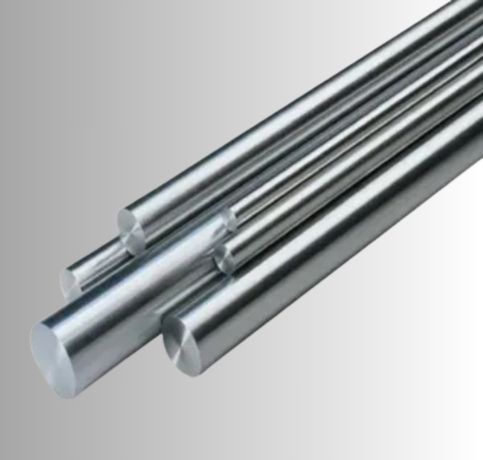

| Round bar size : | Diameter: 3-~800mm |

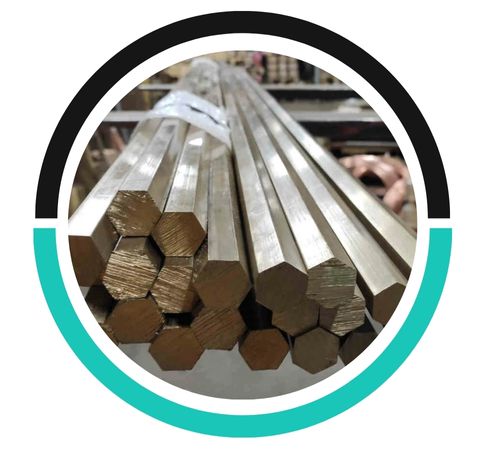

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

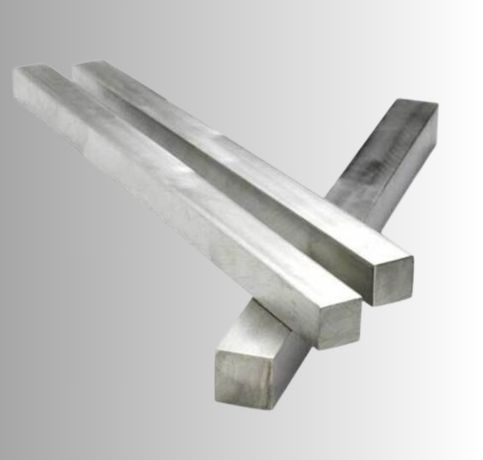

| Square bar size : | 4 to 100mm |

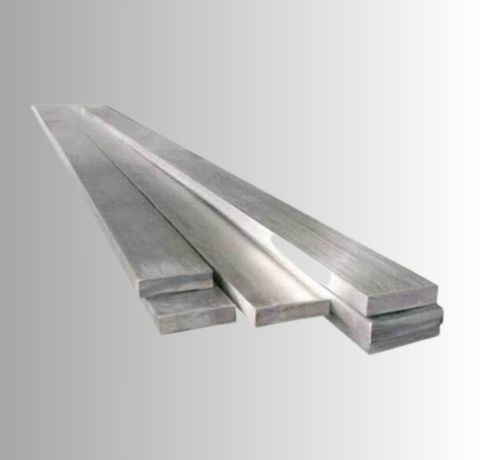

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 6 | 3.7114 | R54520 |
| Grade | C | Fe | N | Ti | H | O | Al | Sn |
| Titanium Gr. 6 | .08 max | 0.50 max | .05 max | Balance | .0175 – .020 | .20 max | 4.0 – 6.0 | 2.0 – 3.0 |
| Element | Min.Tensile(KSI) | Min.Yield(KSI) | Hardness | Tensile Modulus | Poisson’s Ratio |
| Ti Grade 6 | 50 | 40 | 14.9 | 103 GPa | 0.34-0.10 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 6 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@georgemetals.us
Titanium Grade 6 Bars and Rods provide excellent strength-to-weight ratio, outstanding corrosion resistance, high-temperature stability, and good formability, making them ideal for high-performance applications.
Titanium Grade 6 Bars and Rods offer superior strength, corrosion resistance, and weldability, along with excellent performance in high-temperature and aggressive environments, making them suitable for critical industrial applications.
Applications requiring a blend of high strength, low weight, and exceptional corrosion resistance frequently use titanium grade 6 bars and rods. Because of their strength-to-weight ratio and ability to withstand heat, they are widely used in the aerospace industry for airframe and engine components. These rods are perfect for shafts, propulsion systems, and structural elements exposed to saltwater in the marine industry. They are also utilised in power generation systems, heat exchangers, automotive performance parts, and equipment for chemical processing. Titanium Grade 6 is particularly useful in settings where oxidative stress and high temperatures are frequent occurrences.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
