With its main office in Houston, Texas, George Metals is a top producer, supplier, and exporter of high-end titanium Grade 4 bars and rods. Our Titanium Grade 4 products come in a range of sizes, shapes, and finishes and are designed to satisfy the diverse requirements of international industries. These bars and rods are well-known for their exceptional strength, resistance to corrosion, and lightweight design, making them perfect for applications in the marine, medical, and aerospace industries. In order to ensure durability and dependability in the most demanding operating environments, we at George Metals are committed to providing products that meet the highest quality and performance standards.
With its main office in Houston, Texas, George Metals is a top producer, supplier, and exporter of high-end titanium Grade 4 bars and rods. Our Titanium Grade 4 products come in a range of sizes, shapes, and finishes and are designed to satisfy the diverse requirements of international industries. These bars and rods are well-known for their exceptional strength, resistance to corrosion, and lightweight design, making them perfect for applications in the marine, medical, and aerospace industries. In order to ensure durability and dependability in the most demanding operating environments, we at George Metals are committed to providing products that meet the highest quality and performance standards.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

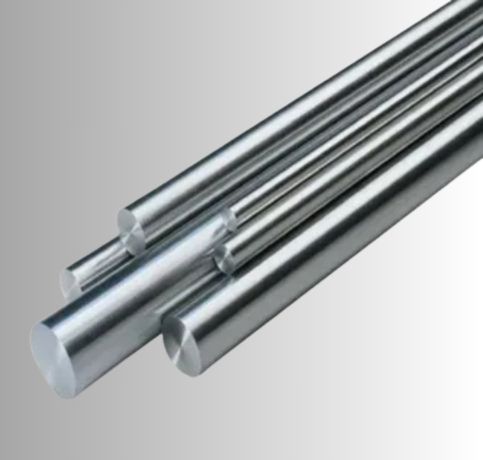

| Round bar size : | Diameter: 3-~800mm |

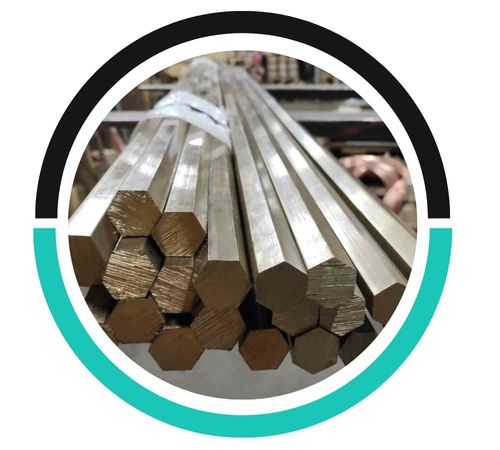

| Hex Bar size : | 2-100mm A/F |

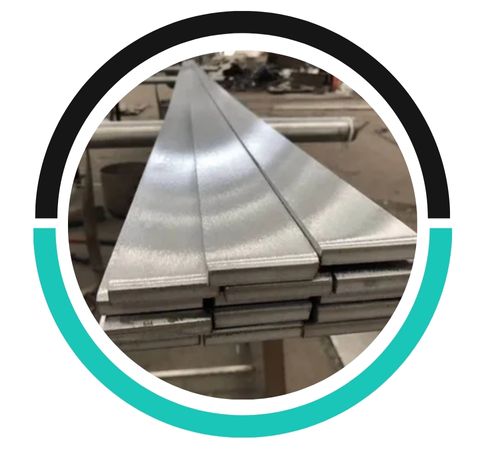

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

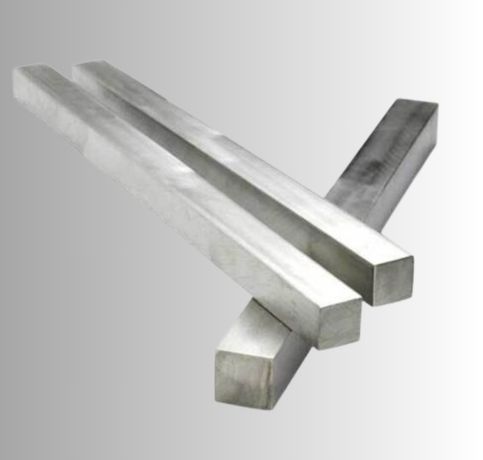

| Square bar size : | 4 to 100mm |

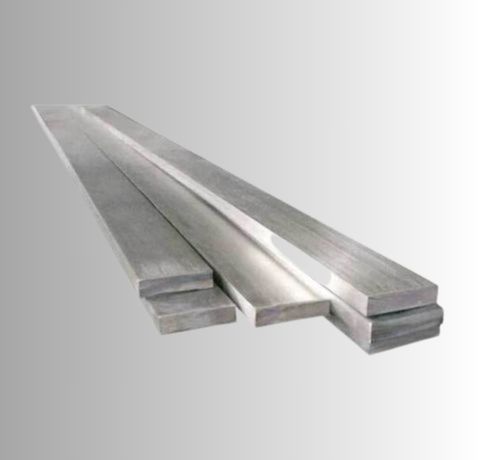

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

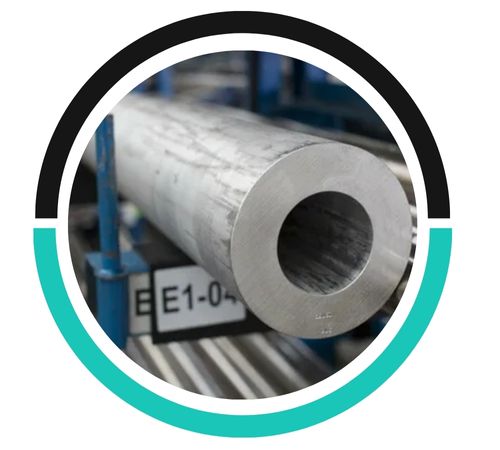

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 4 | 3.7065 | R50700 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 4 | 0..08 max | 0.05 max | 0.40 max | 0.015 max | Bal | 0.50 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 552 | 25 % | 15 % | 100 |
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat (BTU/lb-°F) | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.163 | 2.87 | 119 | 0.127 | 0.00000478 | 3020 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |

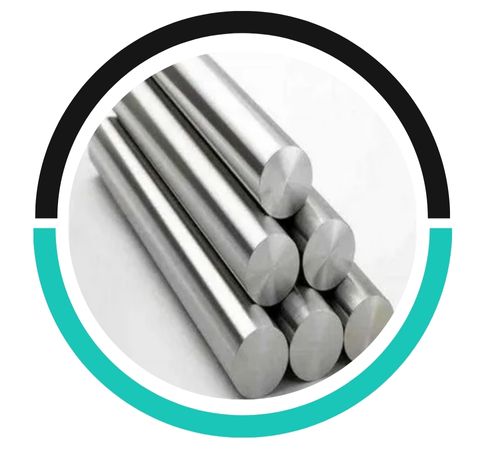

| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 4 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@georgemetals.us
Titanium Grade 4 Bars and Rods are composed of 90% titanium, 6% aluminum, and 4% vanadium, offering excellent strength, corrosion resistance, and durability.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
Industries that require a high strength-to-weight ratio, exceptional corrosion resistance, and biocompatibility frequently use titanium grade 4 bars and rods. They are utilized for engine parts, fasteners, and structural elements in the aerospace sector. Because of its exceptional biocompatibility and durability, Grade 4 titanium is perfect for orthopedic pins, implants, and surgical instruments in the medical field. These rods are used in heat exchangers, processing equipment, and structures exposed to seawater in the chemical and marine industries. They are also used in sports, defense, and automotive equipment where dependable operation in harsh environments is essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
