Based in Houston, Texas, George Metals is a top producer and supplier of high-end titanium Grade 3 bars and rods. Our specialty is providing a broad range of titanium products in different sizes and shapes that are customized to satisfy a variety of industry specifications. Our Grade 3 titanium bars and rods are manufactured with superior materials and cutting-edge techniques to provide exceptional strength, durability, and resistance to corrosion. These products are widely used in the chemical processing, marine, and aerospace industries and are perfect for demanding environments. George Metals is a reliable partner for high-performance titanium solutions because of its unwavering dedication to quality, performance, and customer satisfaction.
Titanium UNS R50550 Bars and Rods are a medium-strength, commercially pure titanium alloy, offering a balance of strength, ductility, and corrosion resistance. Composed of approximately 98.8% titanium, with small amounts of iron (0.3%), oxygen (0.2%), nitrogen (0.03%), and hydrogen (0.015%), Titanium Grade 3 is highly resistant to corrosion in seawater, chemicals, and other harsh environments. It has improved strength compared to Grade 1 and Grade 2 titanium, making it suitable for applications requiring higher strength and durability, such as in aerospace, chemical processing, and marine industries. Its excellent formability and weldability make it ideal for a variety of industrial uses.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

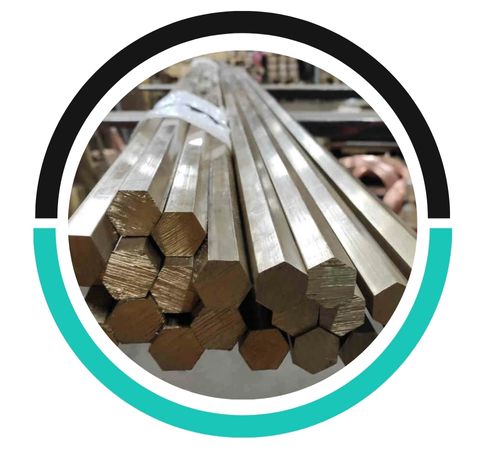

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

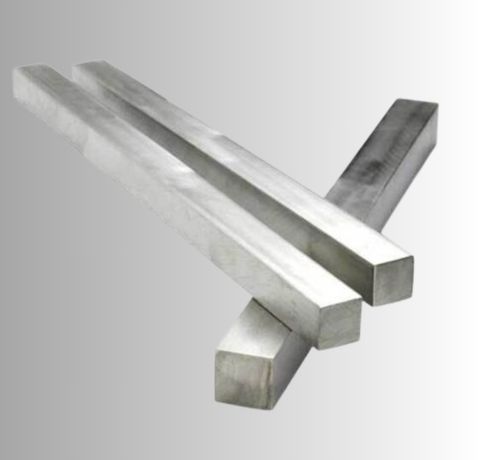

| Square bar size : | 4 to 100mm |

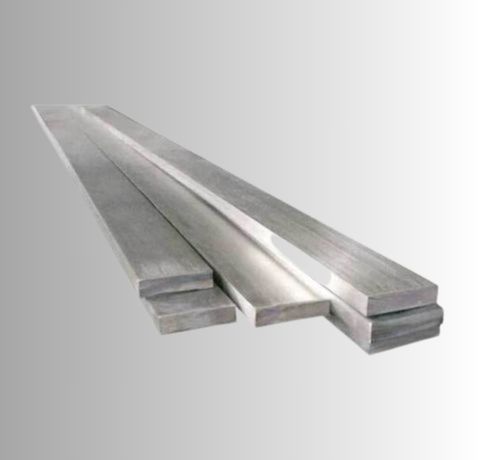

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

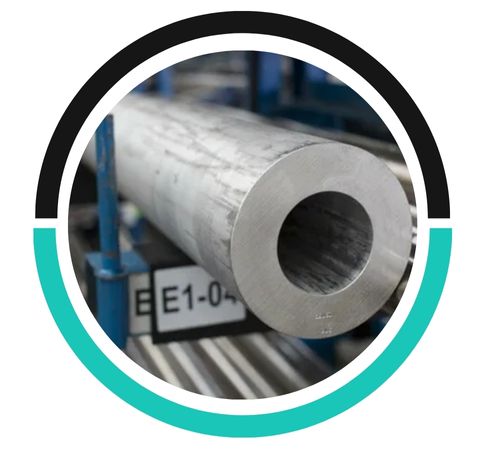

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 3 | 3.7055 | R50550 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 3 | 0..08 max | 0.05 max | 0.35 max | 0.015 max | Bal | 0.30 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 450 | 30 | 18 % | 90 |
| Density | 0.163 lbs/in³ ,(4.51 g/cm³) |
| Mean Coefficient of Thermal Expansion | in/in/°F (mm/m/°C): 70- 212°F (20- 100°C) 4.78 x 10-6(8.6) |
| Thermal Conductivity | BTU-in/h-ft-°F (W/m-°K): At 70°F (21°C): 138 (19.9) |
| Modulus of Elasticity, ksi (MPa) | 15.2 x 10³ (105 x 10³) in tension |
| Melting Point | 3020°F (1660°C) |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |

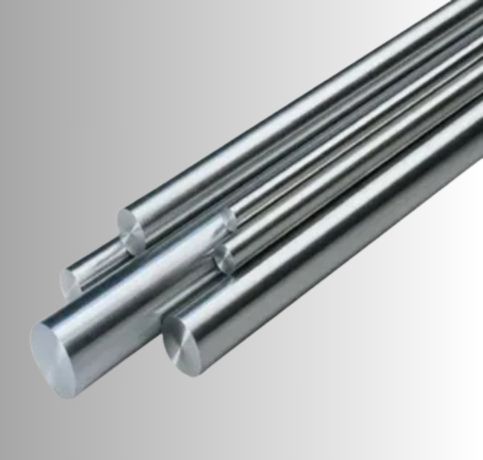

Titanium Grade 3 Round Bars Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, Titanium Grade 3 has excellent corrosion resistance in aggressive environments like seawater, chemicals, and high-temperature settings, making it ideal for marine and chemical processing industries.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@georgemetals.us
Industries that value strength, resistance to corrosion, and biocompatibility frequently use titanium grade 3 bars and rods. Because of their excellent strength-to-weight ratio, they are utilized in aerospace for fasteners, engine parts, and structural elements. They are used in heat exchangers, process piping, and tanks that come into contact with corrosive materials in the chemical industry. Their ability to withstand corrosion in seawater makes them perfect for offshore installations and shipbuilding. Their durability and biocompatibility make them appropriate for use in surgical instruments and implants in the medical field. In harsh operating conditions, their adaptability guarantees dependable performance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
George Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Houston, USA
