Houston, Texas-based George Metals is a well-known producer and supplier of high-quality titanium grade 11 bars and rods, providing dependable solutions for sectors needing exceptional mechanical dependability and corrosion resistance. We provide Titanium Grade 11 (UNS R50250), a commercially pure titanium alloy with improved corrosion resistance because of its palladium content. We are renowned for providing high-performance materials that satisfy international standards. Our precisely designed bars and rods are perfect for industrial, marine, and chemical applications. At George Metals, we provide cutting-edge titanium products to a variety of industries with a dedication to quality, customisation, and prompt delivery.
Titanium Grade 11 Bars and Rods are made mostly of titanium (≥99.5%) with trace amounts of palladium (0.12–0.25%), which greatly increases corrosion resistance, particularly in environments that are reducing and mildly oxidising. This commercially available pure titanium alloy has an elongation of at least 24%, a yield strength of about 275 MPa, and a tensile strength of approximately 345 MPa. It has outstanding impact toughness, ductility, and weldability. While Grade 11 and Grade 1 have comparable mechanical qualities, Grade 11 exhibits better corrosion resistance, especially in acidic or chloride environments, which makes it perfect for demanding industrial applications.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

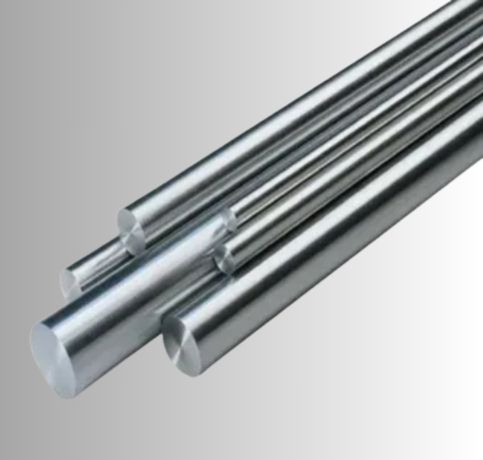

| Round bar size : | Diameter: 3-~800mm |

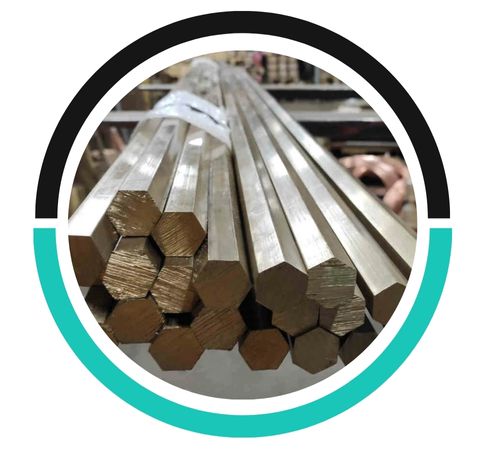

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |

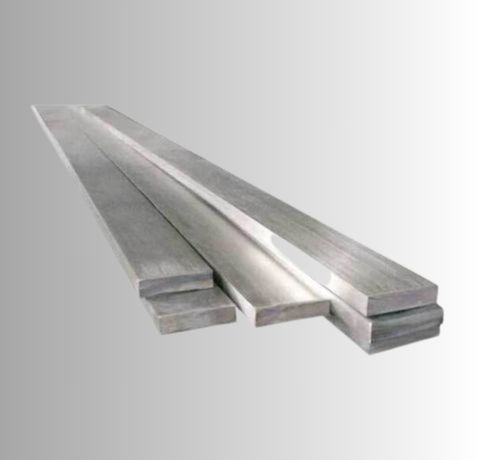

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 11 | 3.7225 | R52250 |
| Grade | C | Fe | N | Ti | H | O |
| Titanium Gr. 11 | 0.08 max | 0.20 max | 0.03 max | Balance | 0.015 max | 0.18 max |
| Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.163 lb/in3, (4.51 g/cm3) | 240 | 170 | 24 % |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
|---|---|---|---|---|---|---|---|---|
| Titanium Gr 11 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@georgemetals.us
Common titanium grades for bar manufacturing include Grade 1, Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 11, and Grade 12, each offering unique strength and corrosion resistance.
Industries that need outstanding corrosion resistance in harsh conditions frequently use titanium grade 11 bars and rods. Common uses include pulp and paper mills, chemical processing facilities, and chlorate production facilities, where machinery is subjected to media that are acidic or high in chlorides. Because it provides superior defence against seawater corrosion and crevice attack, Grade 11 is also utilised in heat exchangers, desalination systems, offshore oil and gas structures, and marine components. Long-lasting performance in both oxidising and reducing conditions is made possible by its high ductility and weldability, which make it perfect for lined tanks, tubing systems, and pressure vessels.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
