Providing premium-grade titanium components for demanding industrial applications, Vinit Stainless is a top manufacturer and supplier of Titanium Gr 5 Forgings in Chennai, India. Grade 5 titanium, also referred to as Ti-6Al-4V, is the most commonly used titanium alloy because of its remarkable strength, low weight, and superior resistance to corrosion. At Vinit Stainless, we guarantee accurate, high-performance forgings by using state-of-the-art forging technology and upholding strict quality standards. We provide tailored solutions for industries like aerospace, automotive, marine, oil & gas, and biomedical, both domestically and abroad, with a strong emphasis on customer satisfaction.
About 90% titanium, 6% aluminium, and 4% vanadium make up titanium Gr 5 forgings (Ti-6Al-4V). The strength and corrosion resistance of this alpha-beta alloy are superbly balanced. It has an elongation of roughly 10%, a yield strength of about 828 MPa, and a tensile strength of about 895 MPa. Grade 5 is widely used in high-performance applications where corrosion resistance and mechanical durability are crucial. It is well-known for its high strength-to-weight ratio, outstanding fatigue resistance, and good weldability when annealed.
| Specifications | ASTM B381, ASME SB381 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | R56400 |
Durability of Titanium Grade 5 forgings is ensured by proper heat treatment, controlled forging process, precise die design, alloy composition, and maintaining optimal surface finish, enhancing strength, corrosion resistance, and fatigue resistance.
Titanium Gr 5 forgings are commonly used in aerospace, automotive, medical, marine, and defense industries, providing high strength, corrosion resistance, and lightweight properties for critical components and high-performance applications.

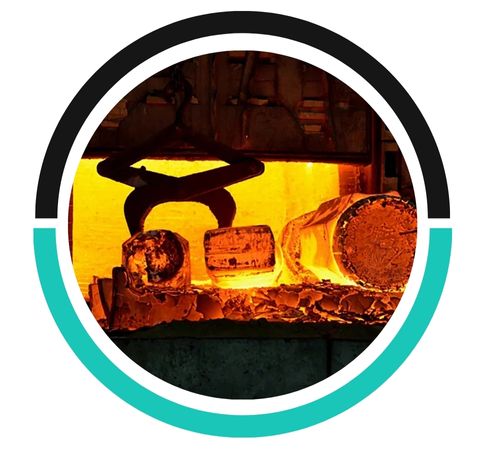

Closed-die forging in Titanium Gr 5 production involves shaping titanium by compressing it between two shaped dies, ensuring precise dimensions, high strength, and improved material properties for demanding applications.
Titanium Gr 5 forgings are widely used in fields where corrosion resistance, exceptional strength, and lightweight properties are essential. They are used in structural elements, turbine engines, and airframes in the aerospace industry. They are used in the automotive industry for performance components such as suspension systems, valves, and connecting rods. Grade 5 is used by the marine and offshore industries for parts that are subjected to saltwater conditions. Because of its biocompatibility, it is utilised in the biomedical industry for orthopaedic devices and surgical implants. It also finds use in chemical processing, sports equipment, and power generation, where durability, strength, and heat resistance are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
