With its headquarters in Chennai, India, Vinit Stainless is a reputable producer and supplier of titanium gr 2 forgings, providing top-notch titanium goods that adhere to international industrial standards. Titanium Grade 2, which is widely used in many important applications, is renowned for its balance of strength, corrosion resistance, and formability. At Vinit Stainless, we use cutting-edge forging methods and strict quality assurance to produce robust, precisely designed parts that satisfy client requirements. Leading industries around the world, including aerospace, chemical processing, marine, power generation, and medical equipment manufacturing, have recognised us for our dedication to innovation, dependability, and on-time delivery.
Commercially pure titanium with good corrosion resistance and moderate strength is used to make titanium Gr 2 forgings. Titanium (min 99.2%), oxygen (max 0.25%), nitrogen (max 0.03%), hydrogen (max 0.015%), carbon (max 0.08%), and iron (max 0.30%) make up the typical chemical composition. It has a yield strength of about 275 MPa, a tensile strength of about 344 MPa, and an elongation of more than 20%. Grade 2 titanium balances mechanical performance with ease of fabrication, making it perfect for structural and pressure-handling applications in chemically aggressive environments. It also has good weldability and formability.
| Specifications | ASTM B381, ASME SB381 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |

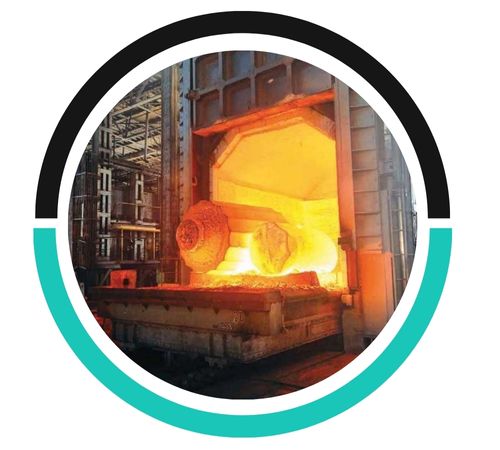

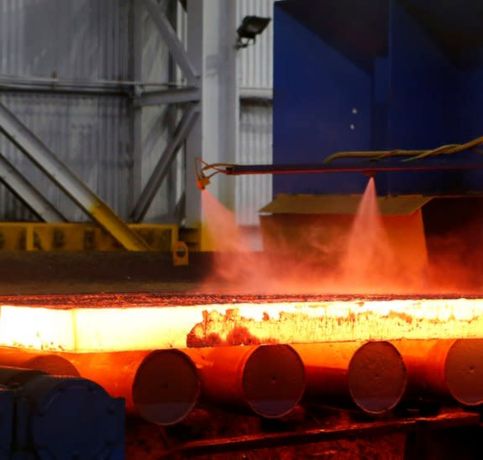

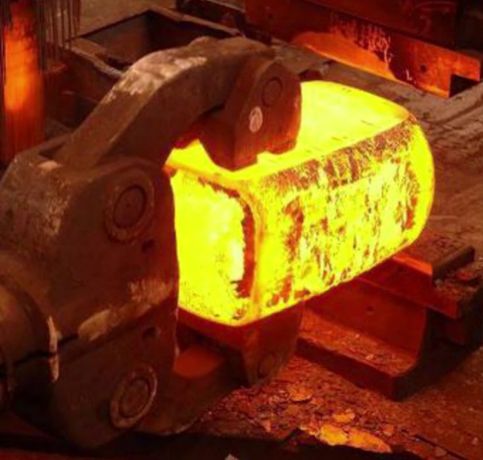

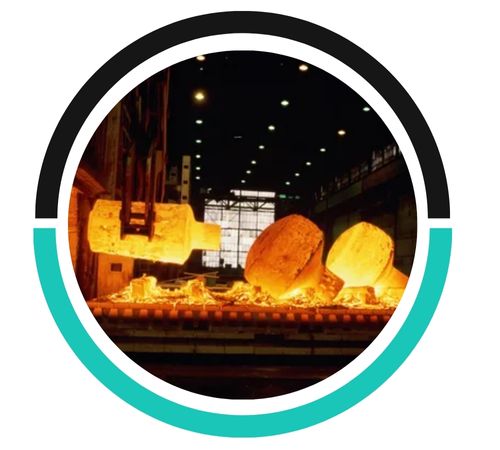

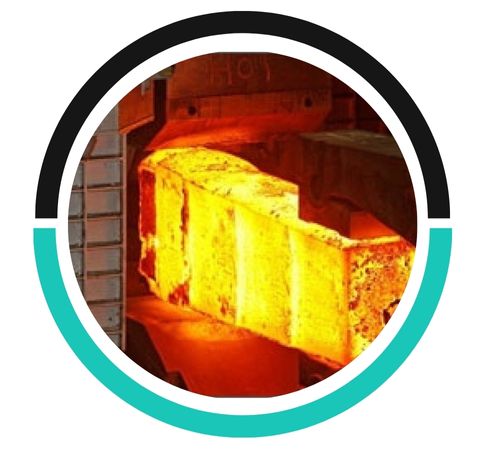

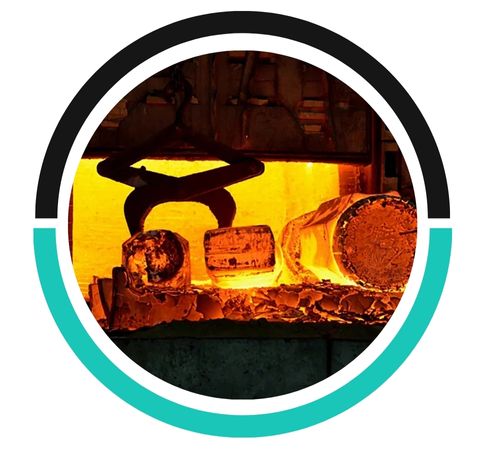

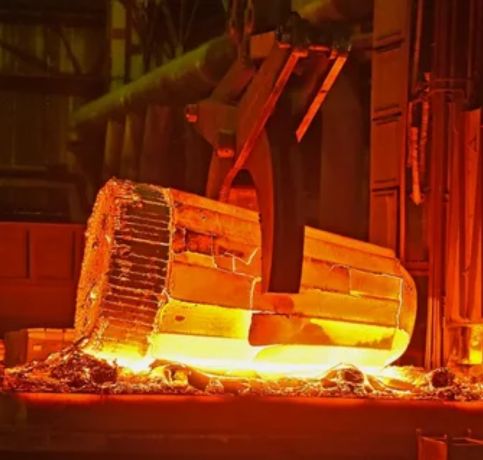

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| ASTM B381 R50400 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
The durability of Titanium Gr 2 forgings is ensured by factors like high corrosion resistance, excellent strength-to-weight ratio, superior fatigue resistance, heat treatment, proper alloy composition, and precision manufacturing processes.
Titanium Gr 2 forgings are commonly used in aerospace, chemical processing, marine, medical, automotive, and power generation industries due to their corrosion resistance, strength, and lightweight properties.

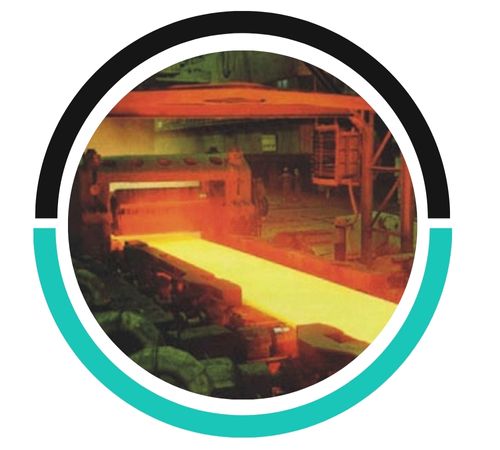

Open-die forging for Titanium Gr 2 components involves shaping the metal by pressing it between two flat dies. It allows for high strength, uniformity, and precise control, making it ideal for complex, large components.
Industries that demand strength, resistance to corrosion, and dependability place a high value on titanium Gr 2 forgings. Because of their resistance to chlorides and acidic media, they are frequently utilised for heat exchangers, tanks, and pipes in chemical processing facilities. Grade 2 forgings are utilised in offshore structures, desalination plants, and seawater systems in maritime environments. Airframe parts and hydraulic systems are examples of aerospace applications. Its biocompatibility for implants and surgical instruments is advantageous for medical applications. It is also utilised in electroplating, power generation, and automotive components where long-term structural integrity and corrosion resistance are essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
