Delivering high-performance tantalum R05255 bars and rods for vital industrial applications is the area of expertise for George Metals, a leading manufacturer and supplier with headquarters in Houston, USA. Our tantalum products, which are renowned for their precision engineering and quality control, offer remarkable corrosion resistance, especially in extremely harsh chemical environments. Niobium-stabilized tantalum R05255 is perfect for high-temperature equipment, pressure vessels, and heat exchangers. Customers in the chemical, aerospace, and electronics sectors trust our products because they meet the strict ASTM B365 standards. Reliability, material purity, and prompt worldwide delivery are our top priorities at George Metals.

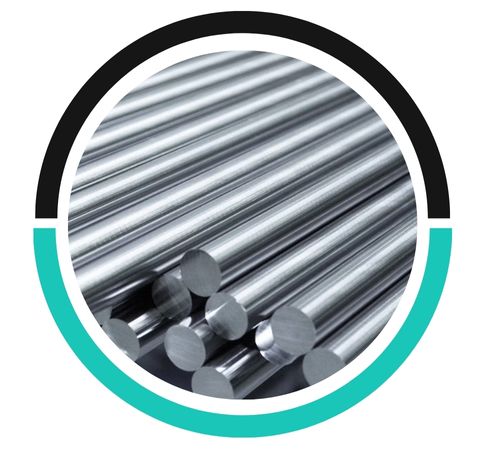

Tantalum R05255 Bars and Rods are made of tantalum alloyed with a trace amount of niobium (roughly 2.5%) to improve corrosion resistance and fabricability. This alloy maintains remarkable chemical inertness, especially in hot, concentrated acids, and satisfies ASTM B365 requirements. Tensile strength of about 207 MPa, yield strength of about 138 MPa, and elongation of more than 30% in annealed condition are examples of mechanical properties. Because of its exceptional ductility, weldability, and thermal stability, R05255 can be used in harsh, corrosive, and hot conditions where material integrity and strength are crucial.
| Specification | ASTM B365, ASME SB365 |

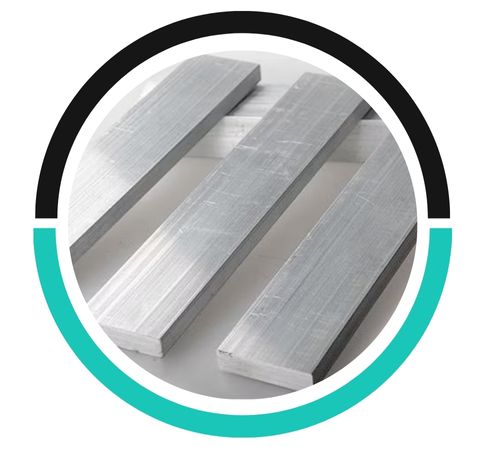

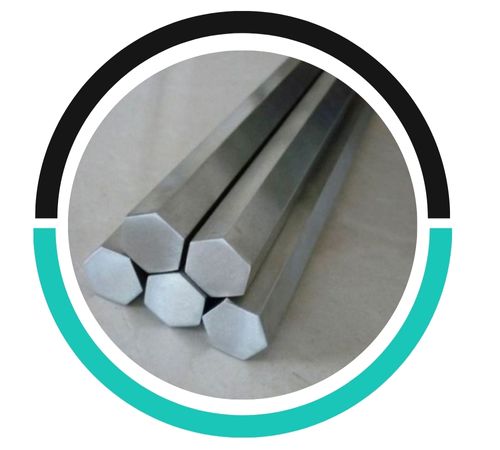

| Tantalum Bar Form | Tantalum Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |

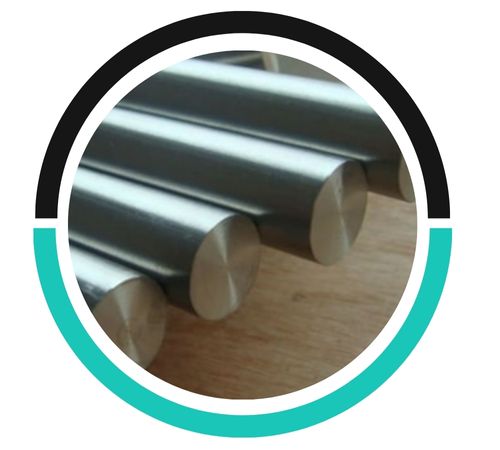

| Tantalum Round Bar Diameter | 0.125″ (3.18mm)~2.5″ (63.5mm) |
| Length | 2-12m |
| Purity | ≥99.95% or 99.99% |
| Tantalum Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Tantalum | C | O | N | H | Nb | Fe | Ti | W | Mo | Si | Ni | Ta |
| R05255 | 0.010 | 0.015 | 0.010 | 0.0015 | 0.100 | 0.010 | 0.010 | 9.0 – 11.0 | 0.020 | 0.005 | 0.010 | Remainder |
| Grade | Tensile strength δbpsi (MPa)， ≥ | Yield strength δ0.2， psi (MPa)，≥ | Elongation in 1″/2″ gage length， ％， ≥ |
|---|---|---|---|
| R05255 | 70000 (481) | 60000 (414) | 15 |
| 3/16” (4.76mm) | 25mm | 2.1/2” (63.5mm) |
| ¼” (6.35mm) | 1” (25.4mm) | 2.3/4” (69.85mm) |
| 5/16” (7.94mm) | 1.1/8” (28.58mm) | 3” (76.2mm) |
| 3/8” (9.53mm) | 30mm | 3.1/4” (82.55mm) |
| 10mm | 1.1/4” (31.75mm) | 3.1/2” (88.9mm) |
| 12mm | 1.3/8” (34.93mm) | 4” (101.6mm) |
| ½” (12.7mm) | 1.1/2” (38.1mm) | 4.1/2” (114.3mm) |
| 15mm | 40mm | 5” (127mm) |
| 5/8” (15.88mm) | 1.3/4” (44.45mm) | 5.1/2” (139.7mm) |
| ¾” (19.05mm) | 2” (50.8mm) | 6” (152.4mm) |
| 20mm | 2.1/8” (53.98mm) | 7” (177.8mm) |
| 7/8” (22.23mm) | 2.1/4” (57.15mm) | 8” (203.2mm) |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |

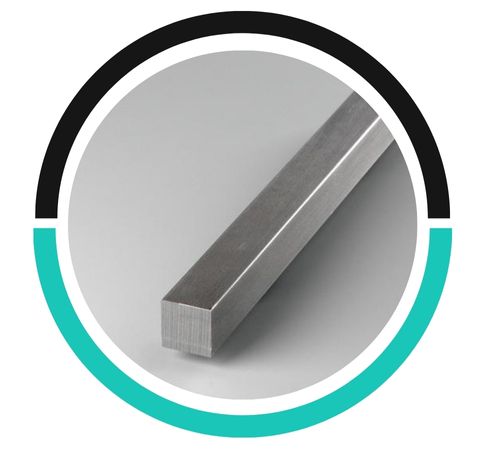

Yes, Tantalum R05255 Bars and Rods are available in various sizes, diameters, and forms, including round, square, and hexagonal shapes, customizable to meet diverse industrial requirements.
Yes, Tantalum R05255 Bars are highly customizable, allowing modifications in size, length, diameter, surface finish, and tolerances to meet specific application and industry requirements.
Chemical processing facilities make extensive use of tantalum R05255 bars and rods, particularly for equipment exposed to highly corrosive acids such as hydrochloric, sulphuric, and nitric acid. Heat exchangers, lined reactors, evaporators, and condenser tubing are examples of common applications. R05255 is prized in the aerospace sector for its high melting point and resistance to oxidation, which make it appropriate for high-temperature structural components and combustion chamber linings. Because of its exceptional purity and stability, it is also utilised in the production of semiconductors, medical components, and superconducting applications. It is a material of choice in critical environments due to its exceptional corrosion resistance and ease of fabrication.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
