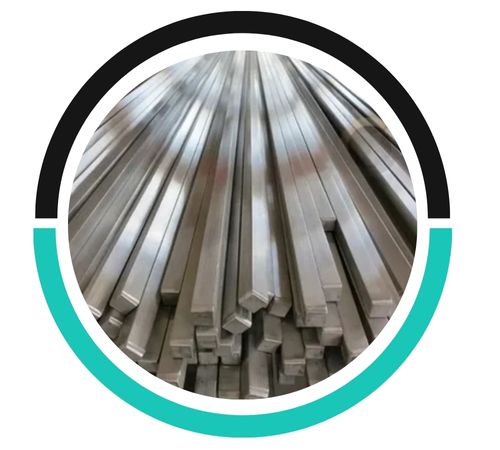

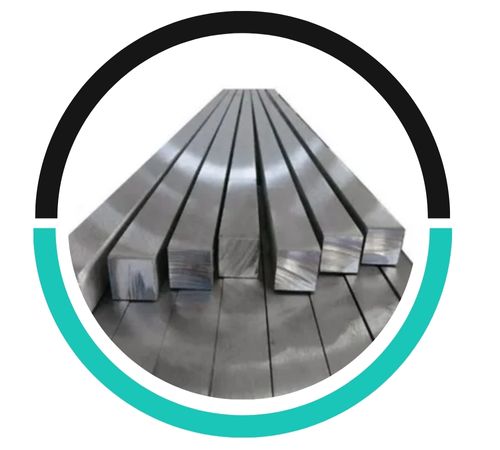

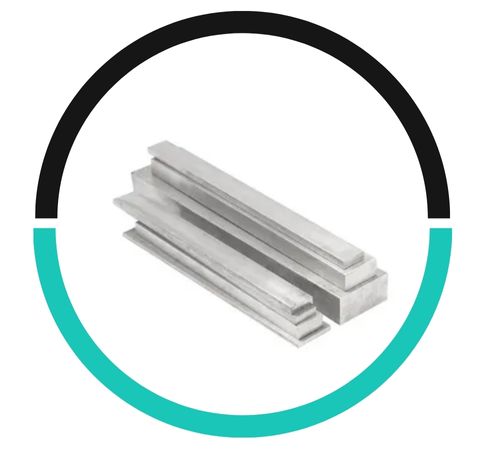

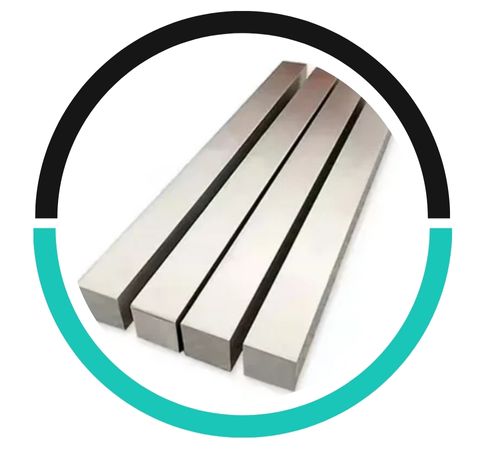

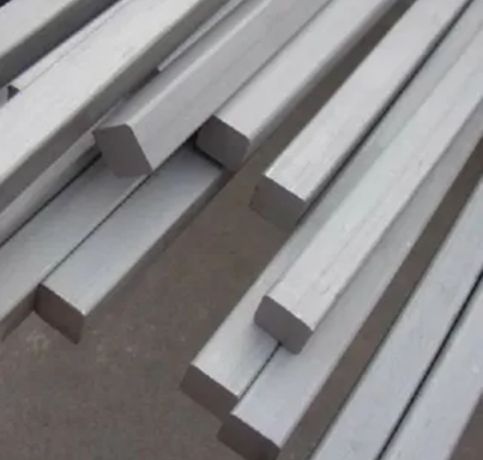

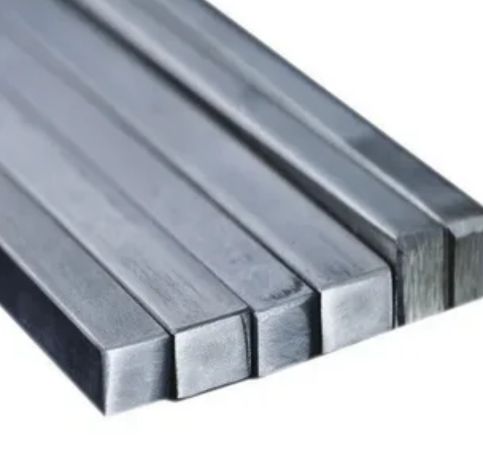

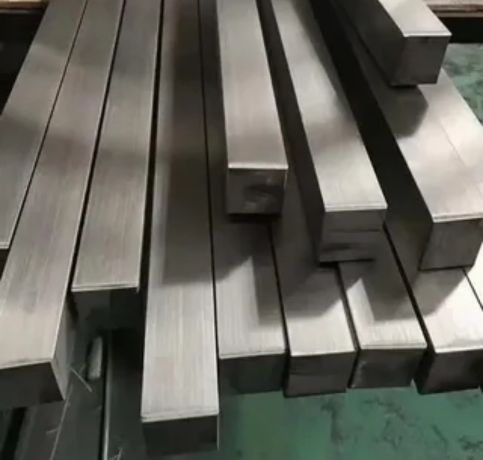

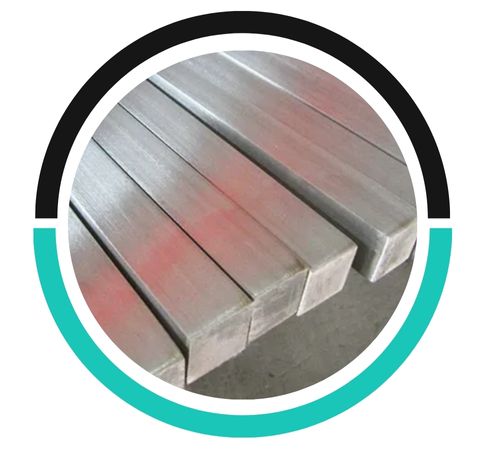

Stainless Steel 431 Square Bars and Rods are among the premium stainless steel products that George Metals, a reputable manufacturer and supplier with headquarters in Houston, USA, produces and supplies. George Metals serves a variety of industrial sectors, including engineering, aerospace, marine, and defence, with an emphasis on accuracy and longevity. Their SS 431 bars and rods are renowned for their exceptional toughness, corrosion resistance, and mechanical strength. These products are made in accordance with strict quality standards and come in a range of sizes and finishes to satisfy the needs of individual clients. In both domestic and foreign markets, George Metals is renowned for its consistent supply, affordable prices, and prompt delivery.
Stainless Steel 431 Square Bars/Rods are made of martensitic stainless steel, which has a low carbon content of about 0.20% and contains 15.0–17.0% chromium and 1.20–2.50% nickel. The strength and corrosion resistance of this alloy are well-balanced. It can be heat-treated to produce strength of roughly 600 MPa and high tensile strength, usually between 850 and 1000 MPa. Additionally, the material has good toughness and moderate resistance to corrosion, particularly in mildly corrosive and marine environments. After hardening and tempering, its strength, machinability, and hardness all considerably increase.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 431 | 0.20 | 17.00-15.00 | 1.00 | 2.50-1.25 | 0.040- | 0.030 | 1.00 |
| Element | Density | Electrical Resistivity | Modulus of Elasticity |
| SS 431 | 0.2800 lb/inch³ | 70° Ohms (circ mil./ft.) | 29.0 X 10^3 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 431 | 1.4057 | S43100 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Industries that need a combination of high strength, toughness, and moderate corrosion resistance frequently use stainless steel 431 square bars and rods. Marine shafts, aircraft parts, pump and valve parts, fasteners, and chemical equipment are examples of common applications. 431 is perfect for structural applications in marine and aerospace engineering because of its good mechanical qualities and moderate resistance to corrosive environments. Turbine blades, paper mill equipment, and oil and gas tools also use it. Long service life and dependability are ensured by its hardening ability, which makes it appropriate for parts that are subjected to high levels of stress, wear, and impact.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
George Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Houston, USA
