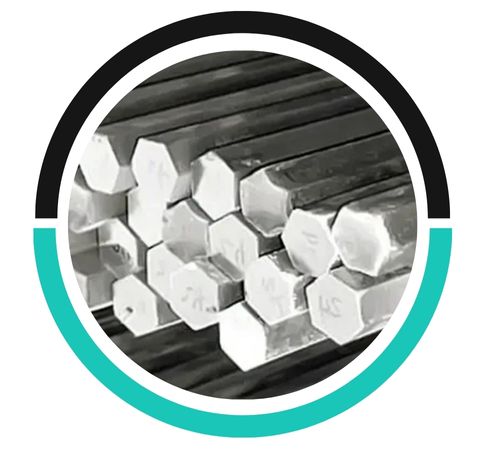

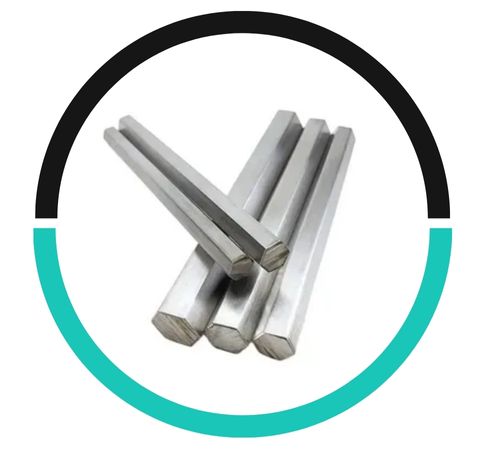

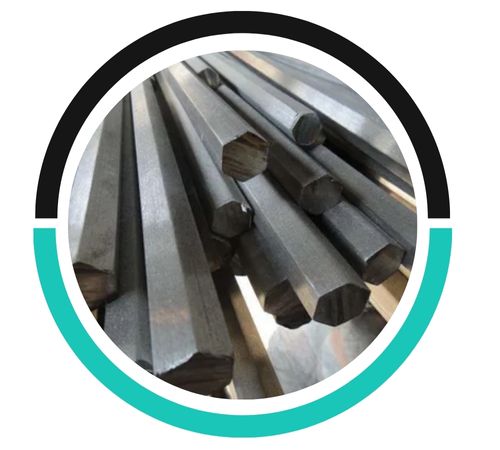

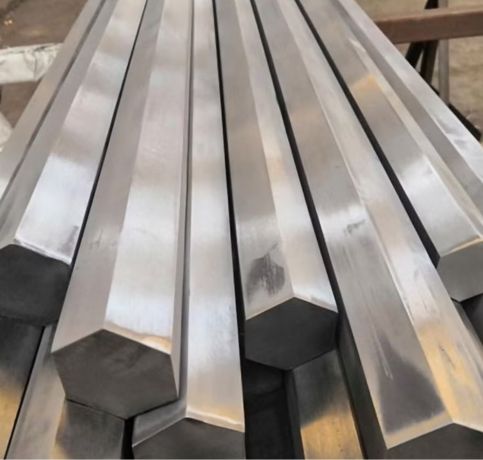

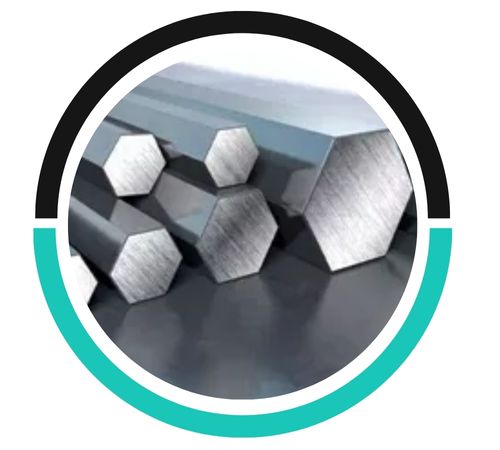

George Metals, based in Houston, USA, is a reliable manufacturer and supplier of Stainless Steel 416 Hex Bars, delivering high-quality, precision-machined bars designed for tough industrial applications. This material, known for being a free-machining martensitic stainless steel, boasts excellent machinability, solid mechanical strength, and decent corrosion resistance. The hex bars are crafted to comply with ASTM A582 and other international standards, ensuring tight tolerances and consistent finishes. George Metals offers 416 hex bars in various sizes and lengths, catering to industries like automotive, industrial machinery, defense, and general engineering, where high-speed machining and precise dimensions are crucial.
Stainless Steel 416 Hex Bars typically contain around 12–14% Chromium, with added sulfur (0.15–0.35%) to enhance machinability, along with trace amounts of manganese, phosphorus, and silicon. This martensitic alloy achieves a tensile strength ranging from 550–760 MPa and can reach a hardness of up to 35 HRC after heat treatment. While its corrosion resistance isn’t as high as austenitic grades, it performs admirably in dry and mildly corrosive settings. George Metals guarantees precise heat treatment and machining, resulting in hex bars that exhibit outstanding surface quality and mechanical consistency for critical machining and assembly tasks.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 416 | 0.15 | 14.0 – 12.0 | 1.25 | – | 0.06 | 0.15 | 1 |
| Element | Density, lb/in3 | Melting Point | Electrical Resistivity |
| SS 416 | 0.282 lbs/in3 7 .80 g/cm3 | 2700 – 2790 °F (1488 – 1530 °C) | At 70 °F (21 °C): 343.0 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 416 Hex Bars find extensive use in industries where great machinability and moderate strength are key. In the automotive and aerospace fields, they serve as components for gears, shafts, and fasteners. Machine shops and OEMs rely on them for crafting high-speed parts like spindles, screws, bushings, and pump components. Their sulfur-enhanced makeup makes them perfect for CNC and automatic machining processes. Although they are less resistant to corrosion compared to other stainless grades, 416 is well-suited for dry or controlled industrial environments. George Metals also offers custom-cut hex bars tailored to precision specifications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
