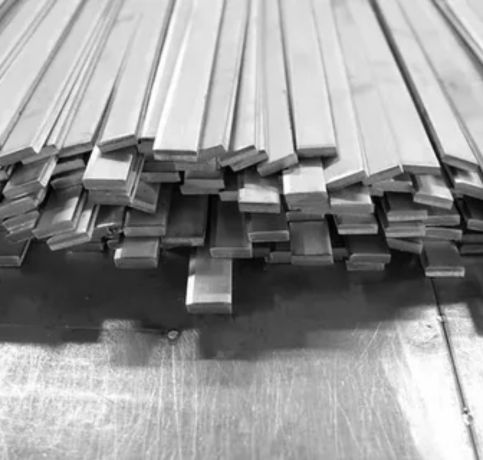

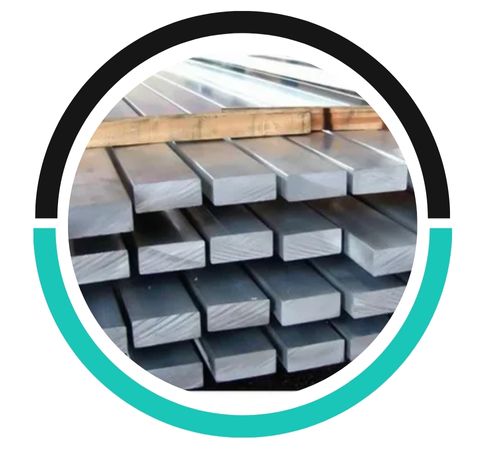

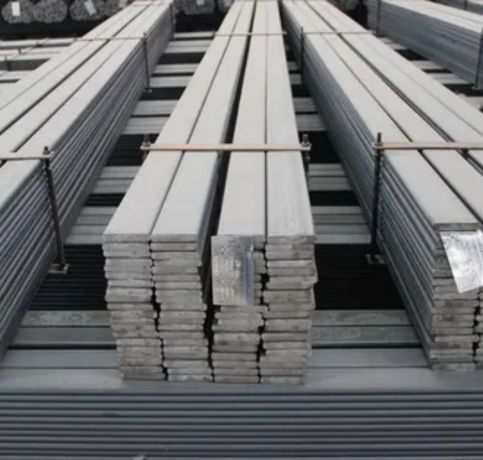

Stainless Steel 416 Flat Bars are among the premium stainless steel products that George Metals, a reputable manufacturer and supplier with its headquarters located in Houston, USA, offers. George Metals, which is well-known for its excellent metallurgical performance and machining skills, supplies flat bars to meet the demands of mechanical engineering, aerospace, and automotive industries. In order to ensure dependability in every application, their stainless steel 416 flat bars are meticulously finished and manufactured in accordance with ASTM and international standards. George Metals remains the go-to partner for stainless steel solutions in both domestic and international markets thanks to its emphasis on prompt delivery, affordable prices, and customer satisfaction.
The martensitic stainless steel alloy known as Stainless Steel 416 Flat Bar is free-machining and has 0.15% carbon, 12–14% chromium, and additional sulphur to improve machinability. It has good mechanical qualities, such as a tensile strength of up to 760 MPa and, when hardened, a hardness of about 35–43 HRC. 416 can be heat treated for greater strength and hardness and provides moderate corrosion resistance, particularly in non-aggressive environments. It is perfect for high-speed production because of its exceptional machinability, particularly for parts that need precise machining and reliable tolerances.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M

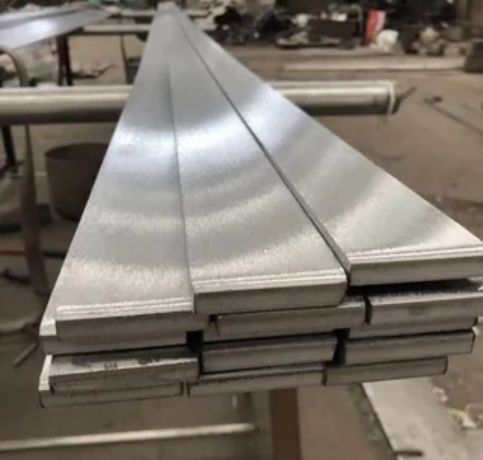

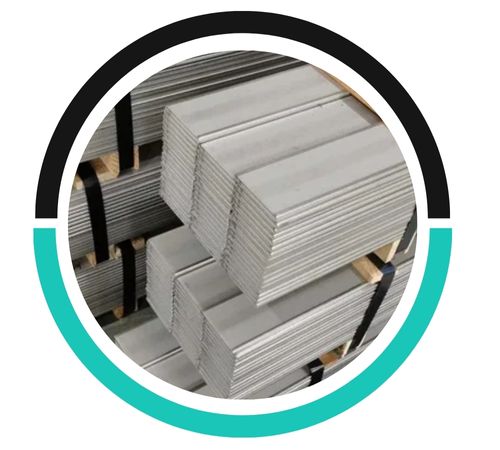

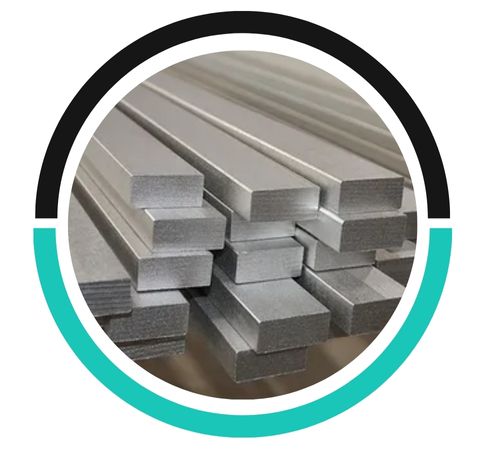

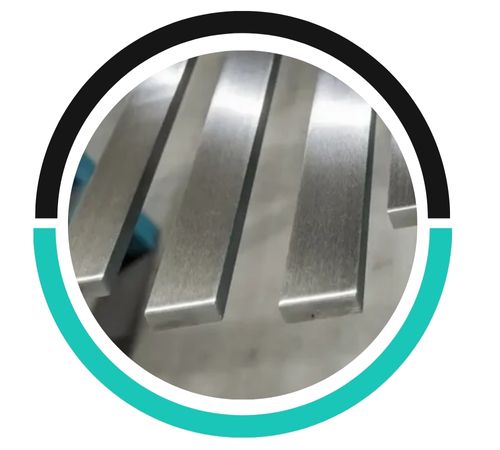

Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Range : Range – 3.17mm to 350mm dia
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 416 | 0.15 | 14.0 – 12.0 | 1.25 | – | 0.06 | 0.15 | 1 |
| Element | Density, lb/in3 | Melting Point | Electrical Resistivity |
| SS 416 | 0.282 lbs/in3 7 .80 g/cm3 | 2700 – 2790 °F (1488 – 1530 °C) | At 70 °F (21 °C): 343.0 |
| Flat Bar | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.49 | 1.60 |
| 18 | 0.62 | 2.02 |
| 20 | 0.76 | 2.49 |
| 22 | 0.92 | 3.02 |
| 25 | 1.19 | 3.90 |
| 28 | 1.49 | 4.89 |
| 28 | 1.49 | 4.89 |
| 30 | 1.71 | 5.61 |
| 32 | 1.95 | 6.38 |
| 36 | 2.46 | 8.08 |
| 38 | 2.74 | 9.00 |
| 40 | 3.04 | 9.97 |
| 45 | 3.85 | 12.62 |
| 50 | 4.75 | 12.62 |
| 56 | 8.96 | 19.55 |
| 60 | 6.84 | 22.44 |
| 65 | 8.03 | 26.34 |
| 70 | 9.31 | 30.54 |
| 75 | 10.69 | 35.06 |
| 80 | 12.16 | 39.89 |
| 90 | 15.39 | 50.49 |
| 100 | 19 | 62.34 |
The main uses for stainless steel 416 flat bars are in applications that call for remarkable machinability and moderate resistance to corrosion. They are widely used in the automotive, appliance, and aerospace industries and are perfect for producing screws, motor parts, shafts, gears, and fasteners. Because of its ease of machining, the alloy can be used to produce precision parts on high-speed and CNC machines. It is also utilised in food processing equipment, pumps, and valves where good strength and moderate corrosion resistance are crucial. While not recommended for highly corrosive environments, 416 flat bars offer a cost-effective and reliable solution for many mechanical and structural applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
