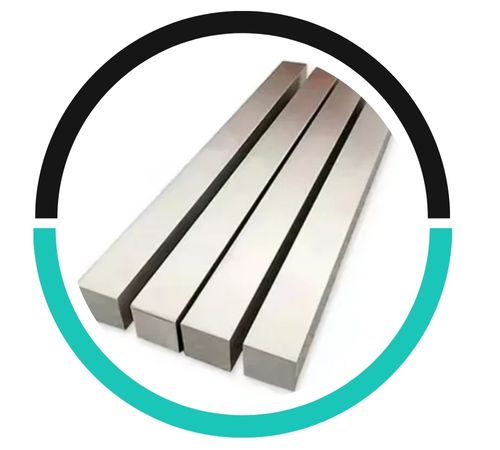

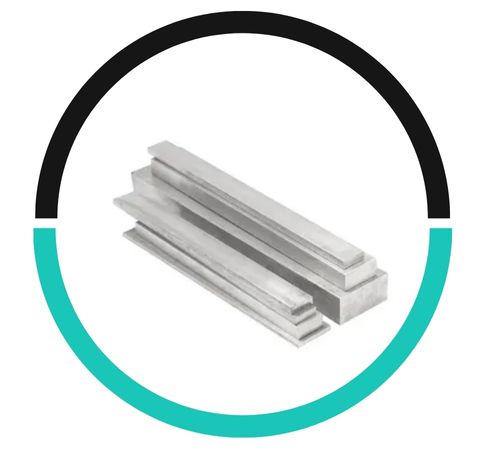

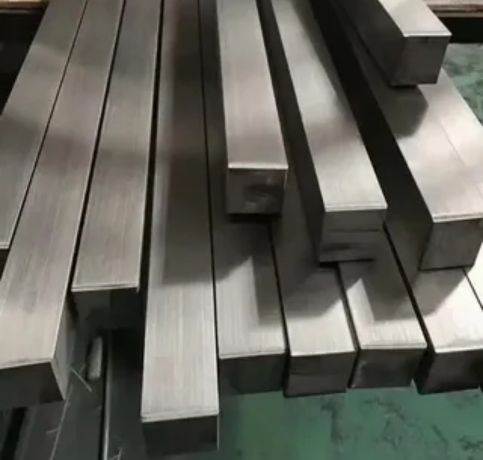

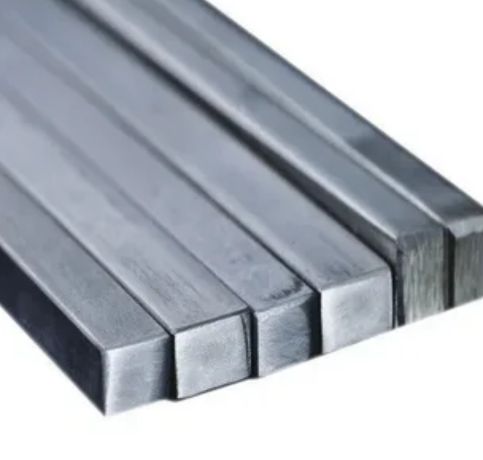

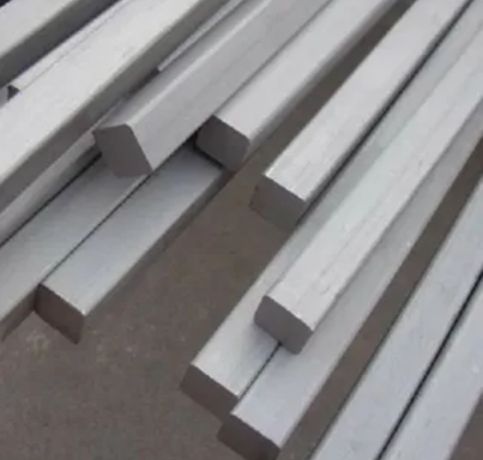

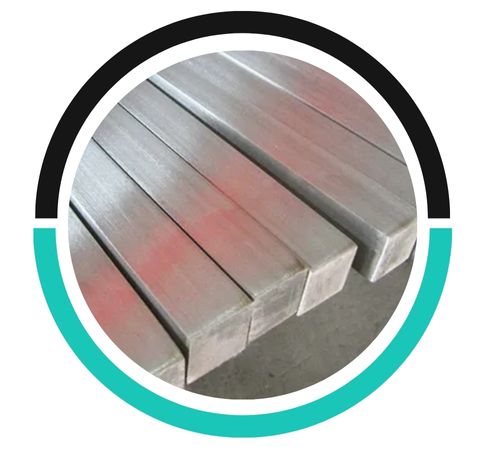

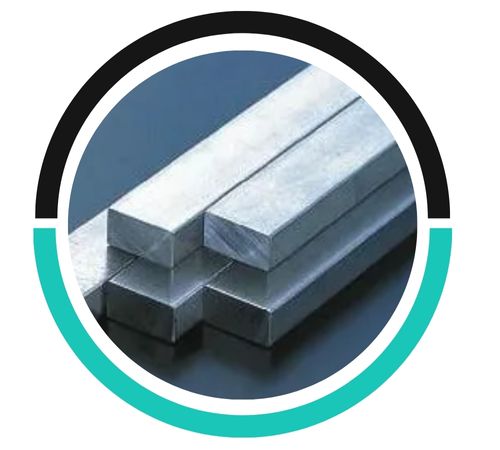

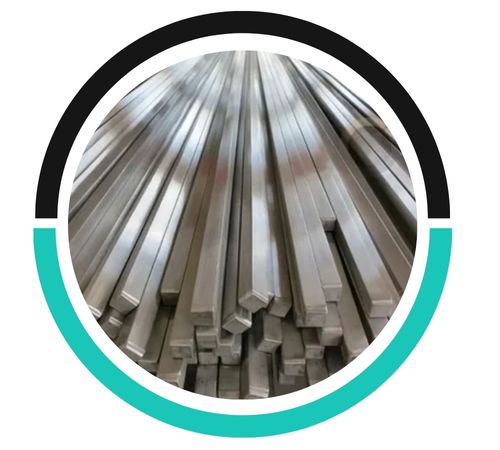

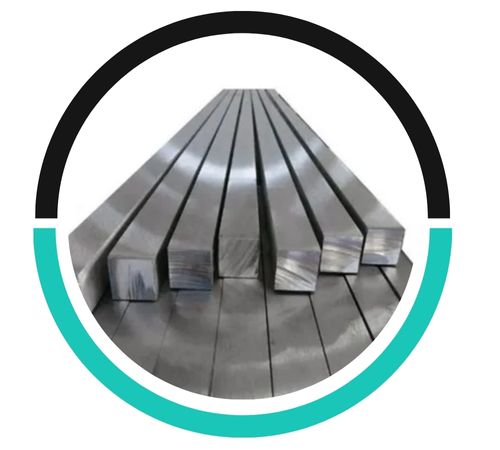

Serving customers from Houston, the United States, and beyond, George Metals is a top producer and supplier of stainless steel 410 square bars and rods. George Metals is known for providing long-lasting and reasonably priced stainless steel products to a variety of industries, such as engineering, petrochemical, food processing, and construction. Their 410 square bars and rods of stainless steel are produced strictly in accordance with international quality standards, guaranteeing excellent mechanical qualities and accurate dimensions. These bars are perfect for high-temperature and structural applications because of their hardness and resistance to corrosion. George Metals prioritises prompt delivery, affordable prices, and first-rate customer service.
About 11.5–13.5% chromium, 0.75% nickel, 0.15% carbon, and trace amounts of manganese, silicon, and sulphur make up stainless steel 410 square bars and rods. 410 is a martensitic stainless steel that can be heat-treated for increased mechanical strength and has a moderate resistance to corrosion. When hardened, it demonstrates a hardness of up to 50 HRC and a tensile strength of approximately 480–690 MPa. These bars are appropriate for general-purpose engineering and industrial applications because they also exhibit good ductility and impact resistance under annealed conditions.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 410 | 0.15 | 11.5-13.5 | 1.00 | 0.75 | 0.040 | 0.030 | 1.00 |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50 mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed * | 480 min | 275 min | 16 min | – | – |
| 204 | 1475 | 1005 | 11 | 400 | 30 |
| 316 | 1470 | 961 | 18 | 400 | 36 |
| 427 | 1340 | 920 | 18.5 | 405 | # |
| 538 | 985 | 730 | 16 | 321 | # |
| 593 | 870 | 675 | 20 | 255 | 39 |
| 650 | 300 | 270 | 29.5 | 225 | 80 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 410 | 1.4006 | S41000 | SUS 410 | 410S21 | – | – | 56A |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Applications requiring moderate mechanical strength, wear resistance, and corrosion resistance frequently use stainless steel 410 square bars and rods. Fasteners, parts for pumps and valves, shafts, bolts, nuts, and screws are among the frequently used items. They are also present in gas turbines, kitchenware, and auto parts. 410 is perfect for heat exchangers, steam turbine components, and petrochemical equipment because it can maintain its mechanical qualities at high temperatures. 410 is appropriate for both commercial and industrial applications where strength and mild corrosion resistance are crucial because of its magnetic properties and hardness after heat treatment.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
