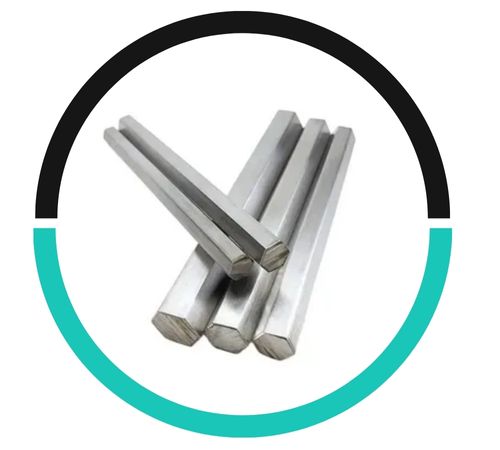

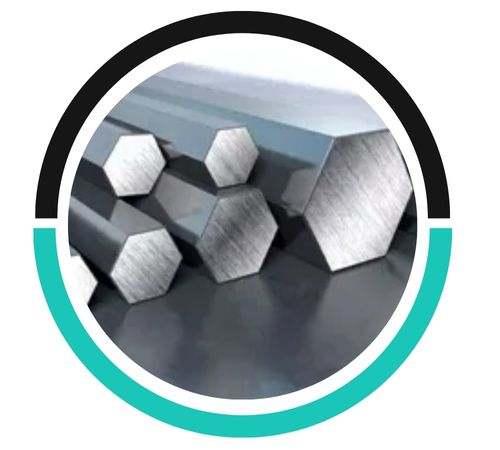

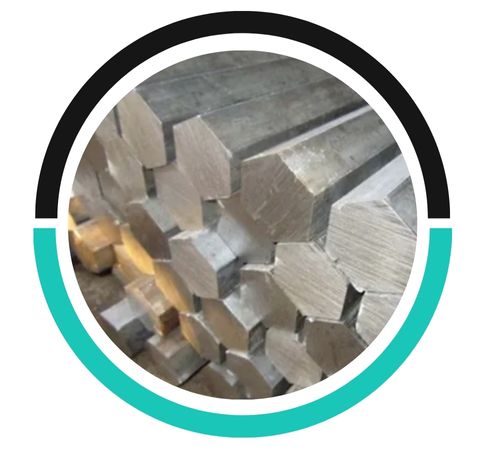

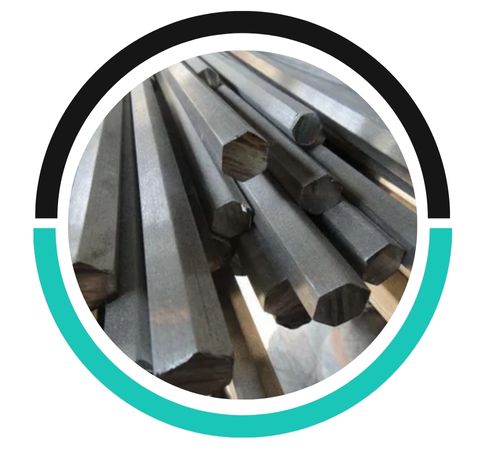

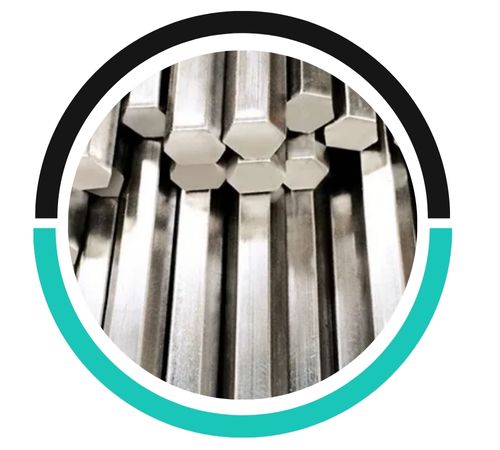

Premium-grade stainless steel 317L hex bars and rods are available from George Metals, a reputable manufacturer and supplier in Houston, USA, and are designed to satisfy the changing needs of the commercial and industrial sectors. George Metals is renowned for their dedication to quality and accuracy, producing goods that satisfy exacting global requirements. Low-carbon stainless steel 317L is perfect for chemical processing, marine applications, and food-grade applications because it offers improved corrosion resistance and weldability. As a preferred partner for stainless steel hex bars and rods across industries, George Metals guarantees on-time delivery, competitive pricing, and technical support through a strong distribution network and customer-centric approach.
About 18–20% Chromium, 11–15% Nickel, 3–4% Molybdenum, and a maximum of 0.03% Carbon make up stainless steel 317L Hex Bars/Rods, which improve corrosion resistance and lessen carbide precipitation during welding. The alloy has good elongation and formability, with tensile strength of about 515 MPa and yield strength of about 205 MPa. Additionally, it offers better protection against pitting and crevice corrosion, particularly in environments that are acidic and chloride-rich. It is perfect for use in extremely corrosive environments because of its low carbon content, which enhances weldability and reduces intergranular corrosion.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 317l | 0.03 max. | 18.0 – 20.0 | 2.00 max. | 11.0 – 14.0 | 0.045 max. | 0.03 max. | 1.00 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 317l | 8 | 1450 ℃ | 515 | 205 | 40 | 217 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Industries that need exceptional corrosion resistance and strength in harsh conditions frequently use stainless steel 317L Hex Bars/Rods. Pulp and paper production, marine engineering, pharmaceutical systems, food processing facilities, and equipment for chemical and petrochemical processing are some of the main uses. Because of their exceptional resistance to sulphides and chlorides, these rods are also used in condensers, heat exchangers, and pollution control devices. They are perfect for fabricated structures because of their low carbon content, which guarantees little carbide precipitation during welding. Furthermore, 317L hex bars are employed in architectural and structural settings where both mechanical robustness and visual appeal are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
