Varun Sheets and Plates is a reputable manufacturer and supplier of high-quality stainless steel products in Dubai, UAE, providing excellent materials specifically designed to cater to the demanding requirements of contemporary industry. Among their specialized product range is the **Stainless Steel 317 Hex Bar/Rod**, specifically designed with superior corrosion resistance and strength for highly aggressive conditions. Through state-of-the-art production facilities and stringent quality standards as per the global standards, Varun Sheets and Plates caters to major industries such as chemical processing, marine, pharmaceuticals, and food processing in the Middle East and overseas.

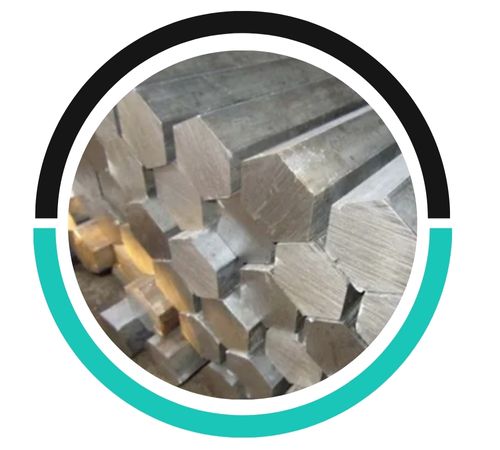

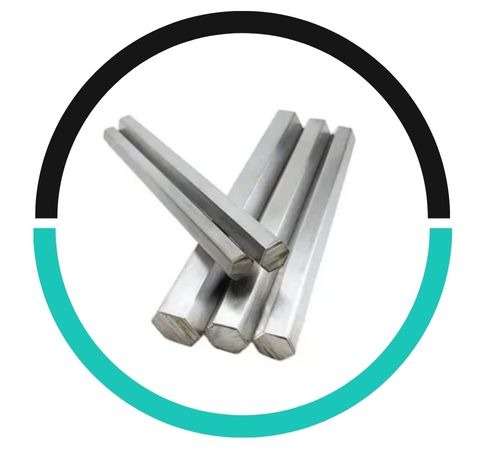

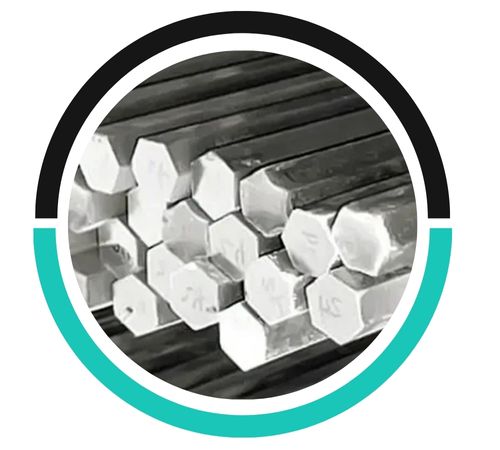

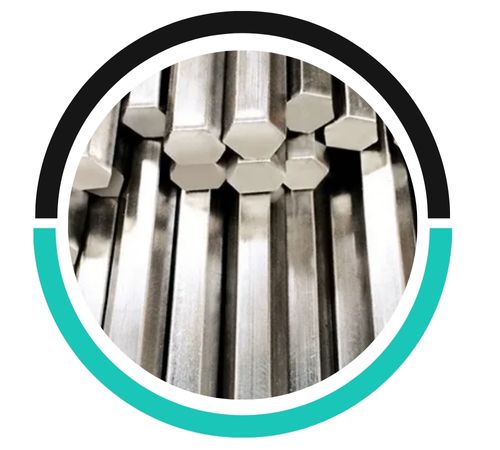

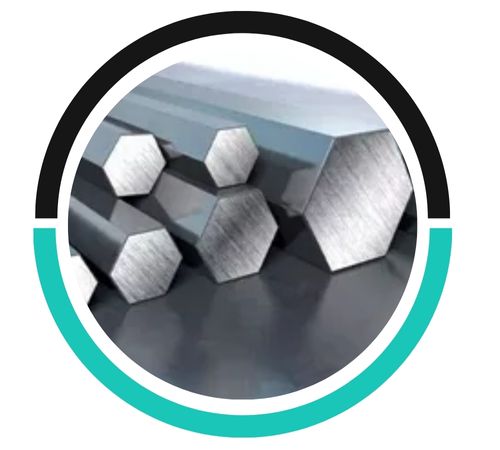

**Stainless Steel 317 Hex Bar/Rod** is an austenitic stainless steel alloy of 18–20% chromium, 11–15% nickel, and 3–4% molybdenum content, which offers improved resistance to pitting, crevice corrosion, and chemical attack. It provides a tensile strength of around 515 MPa and a yield strength of 205 MPa. The hexagonal structure offers greater grip and strength for fastening and machining purposes. Stainless Steel 317 Hex Bar/Rod is highly regarded for excellent weldability, formability, and performance in extreme corrosion and high-temperature conditions.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 317 | 0.08 max. | 18.0 – 20.0 | 2.00 max. | 11.0 – 14.0 | 0.045 max. | 0.03 max. | 1.00 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 317 | 8 | 1454 ℃ | 515 | 205 | 40 | 217 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
