Varun Sheets and Plates is a trusted and reputed stainless steel manufacturer and supplier company in Dubai, UAE. Among its wide array of products, the **Stainless Steel 316L Square Bars/Rods** are particularly noteworthy for their superior corrosion resistance and high quality. Produced to international quality standards, the square bars/rods find extensive applications in harsh industries like marine, chemical processing, pharmaceuticals, and food manufacturing. With an emphasis on strength, accuracy, and on-time delivery, Varun Sheets and Plates is a reliable business partner for high-performance stainless steel solutions in the Middle East and beyond.

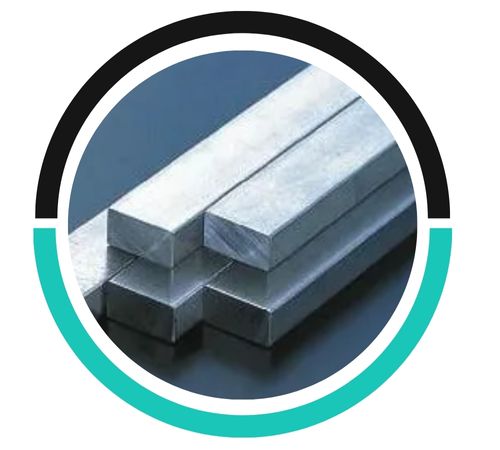

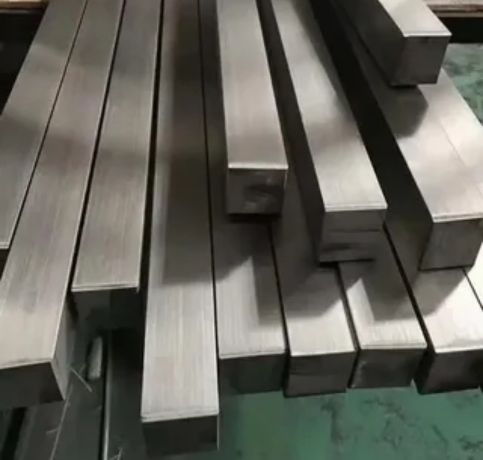

**316L Stainless Steel Square Bars/Rods** are fabricated using a low-carbon form of 316 stainless steel, which has 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. The reduced carbon content enhances weldability and reduces the chance of carbide precipitation when welding. These bars provide tensile strength of approximately 485 MPa and yield strength of 170 MPa. Famous for having great resistance to pitting, crevice corrosion, and chloride environments, Stainless Steel 316L Square Bars/Rods also possess robust mechanical properties and high durability.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 316l | 0.08 | 18.0 | 2.00 | 14.0 | 0.045 max | 3.00 max | 0.10 max |
| Element | Density, lb/in3 | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316l | 8.0 g/cm3 | 1400 °C (2550 °F) | 485 Min | 170 Min | 40% Min |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316l | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
