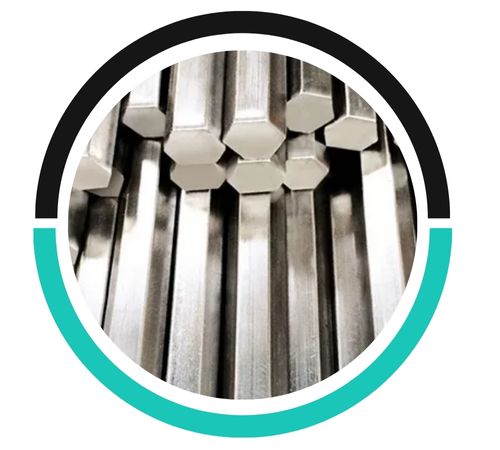

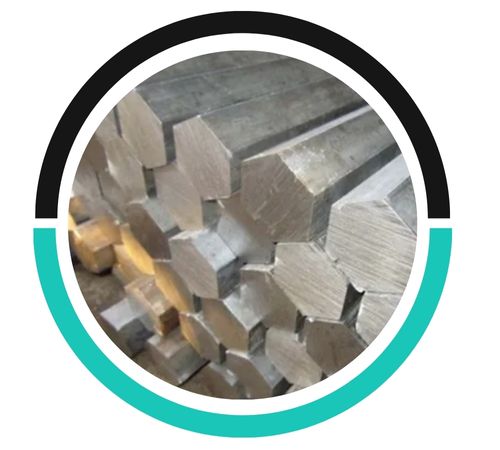

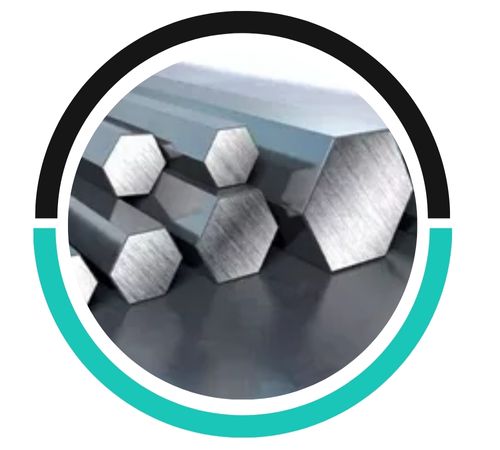

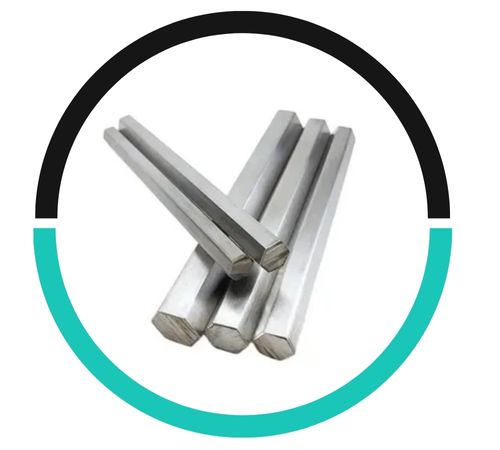

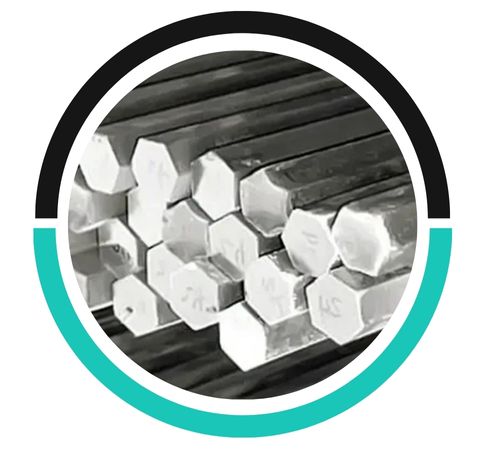

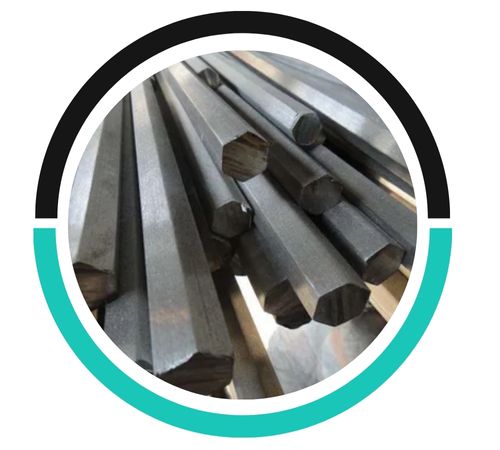

George Metals, a leading manufacturer and supplier based in Houston, USA, specializes in top-quality Stainless Steel 310S Hex Bars and Rods, designed for high-temperature and oxidizing environments. As a low-carbon version of 310, 310S enhances weldability while still offering impressive heat and corrosion resistance. These hex bars and rods are produced in accordance with ASTM A276 and other international standards, ensuring they are known for their precise dimensions, strength, and ability to withstand thermal fatigue. George Metals supplies 310S hex bars to various industries, including heat treatment, petrochemical, power generation, and furnace manufacturing, guaranteeing reliable performance even in extreme conditions
Stainless Steel 310S Hex Bars and Rods consist of 24–26% Chromium, 19–22% Nickel, and a maximum of 0.08% Carbon. This alloy is exceptional for oxidation resistance and maintains structural stability at temperatures reaching 1100°C. With a tensile strength ranging from 520–750 MPa, it holds up well under thermal cycling. The austenitic structure provides excellent ductility, weldability, and corrosion resistance. George Metals ensures a consistent grain structure, accurate dimensions, and smooth surface finishes, delivering 310S hex bars that meet rigorous mechanical and metallurgical standards for high-performance industrial applications.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 310s | 0.08 max | 24.0 – 26.0 | 2.00 max | 19.0 – 22.0 | 0.045 max. | 0.03 max. | 1.50 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 310s | 8 | 1400 ℃ | 515 MPa | 205 | 40 – 50 | 217 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 310S Hex Bars and Rods are perfect for extreme heat and corrosive settings. In the petrochemical and chemical processing sectors, they are used in furnace components, heat exchanger tubes, and high-temperature piping systems. Power plants rely on them for boilers, superheaters, and exhaust ducts. They also find applications in incinerators, kilns, and thermal processing equipment due to their resistance to oxidation and thermal fatigue. Marine and offshore structures benefit from their ability to resist chlorides. George Metals offers custom-sized 310S hex bars tailored to meet specific project needs
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
