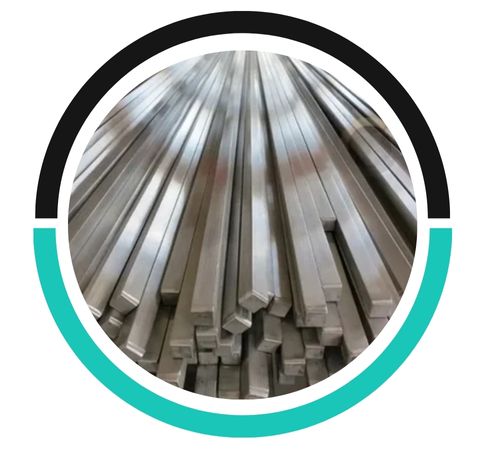

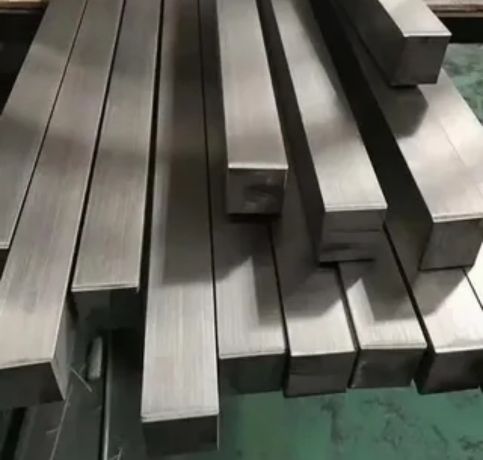

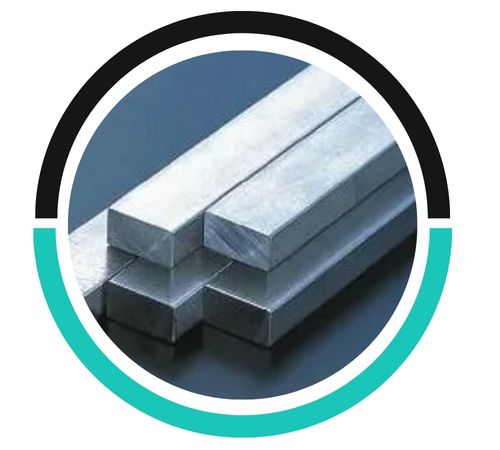

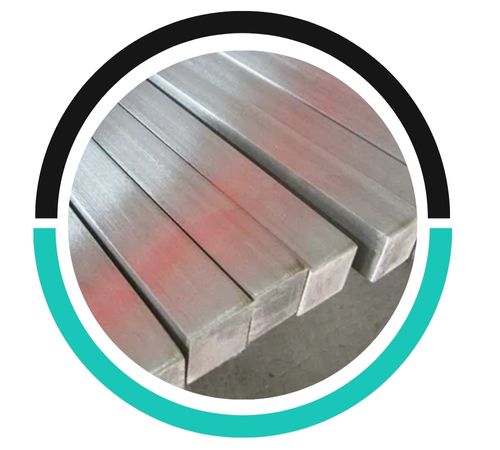

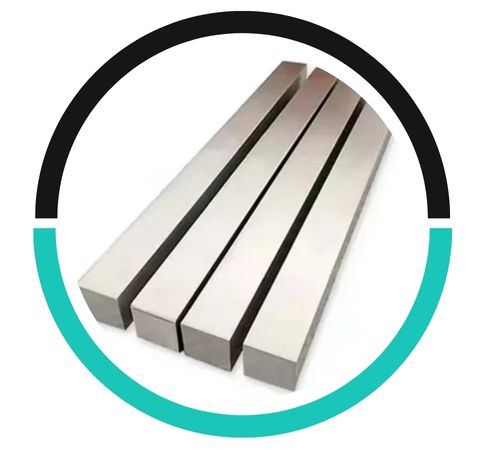

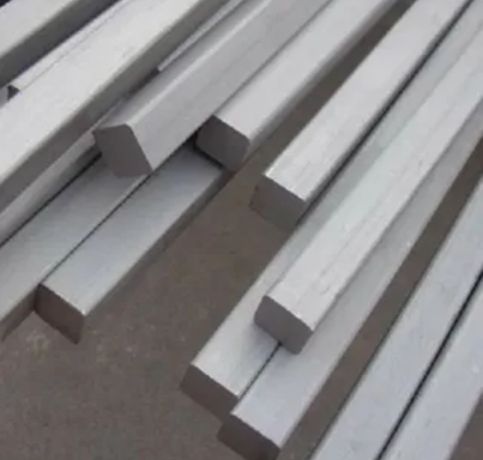

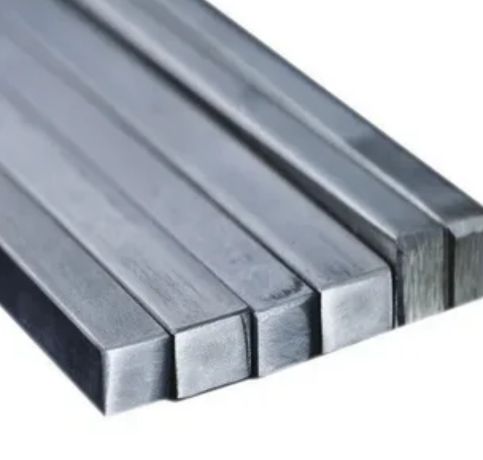

George Metals, located in Houston, USA, stands out as a top manufacturer and supplier of Stainless Steel 304 Square Bars and Rods. Known for their remarkable strength, resistance to corrosion, and flawless finish, these products are designed to meet a variety of industrial needs. With a strong commitment to providing high-quality solutions, George Metals caters to sectors such as construction, transportation, and heavy equipment manufacturing. Their Stainless Steel 304 Square Bars and Rods are meticulously engineered for durability and performance, making them the go-to choice for anyone in need of premium stainless steel.
The Stainless Steel 304 Square Bars and Rods are made up of chromium (18-20%), nickel (8-10.5%), and carbon (up to 0.08%), which together offer outstanding corrosion resistance and mechanical properties. These bars boast a tensile strength of at least 515 MPa, a yield strength of 205 MPa, and an elongation of 40%, ensuring they can be relied upon even under stress. They are known for being non-magnetic and easily formable, maintaining their integrity across a wide temperature range, which makes them ideal for demanding applications.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 304 Square Bars and Rods are incredibly versatile and are widely used in industries that require excellent corrosion resistance and mechanical strength. You’ll find them in structural components, frameworks in construction, and as supports for heavy machinery. They’re also popular in the manufacturing of kitchen equipment, storage tanks, and automotive parts, thanks to their hygienic and non-reactive qualities. Plus, their durability and visual appeal make them perfect for decorative uses and architectural installations, ensuring they find a place in a variety of industrial, commercial, and residential projects.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
