George Metals is a prominent high-performance metal alloys manufacturer and supplier company headquartered in Houston, USA, and deals specifically in premium-grade Nitronic 50 Bars and Rods. Known for providing corrosion-resistant, high-strength materials, George Metals caters to critical industries such as marine, chemical processing, aerospace, and oil & gas. The organization is recognized for its precision engineering, international quality standards, and on-time deliveries. Supported by technical know-how and customer-oriented strategy, George Metals offers reliable solutions to fulfill stringent industrial applications throughout the United States and international markets.

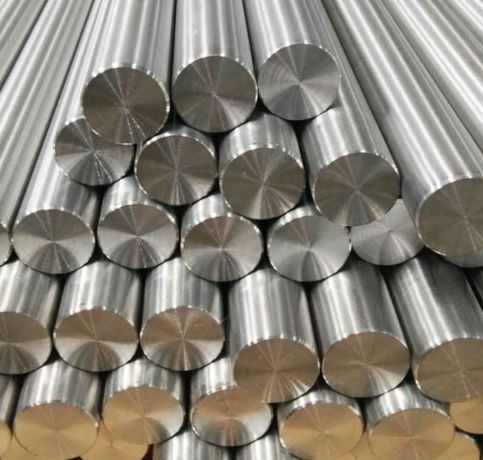

Nitronic 50 Bar and Rod is a nitrogen-strengthened austenitic stainless steel alloy that has around 20–23.5% chromium, 11–13% nickel, 4–6% manganese, and minor additions of molybdenum and nitrogen. It provides almost double the yield strength of 316 stainless steel with superior toughness and corrosion resistance. The product-Nitronic 50 Bar and Rod-offers tensile strength of up to 690 MPa and superior resistance to pitting, crevice corrosion, and chloride stress corrosion cracking. It is available in different conditions and can be used in corrosive and high-load environments.
| Grade | Nitronic Alloy 50 / XM-19 (UNS No. S20910) |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

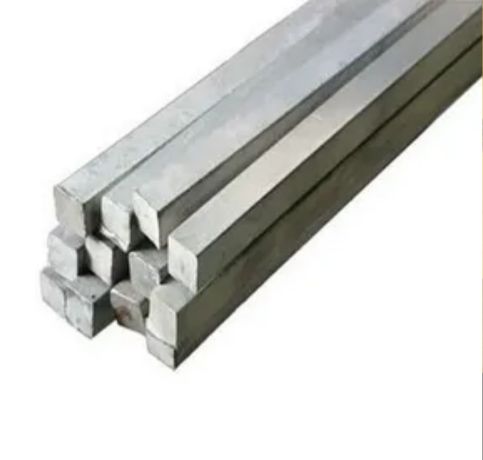

| Nitronic 50 Square bar size | 4 to 100mm |
| Nitronic Alloy 50 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic Alloy UNS S20910 Hex Bar size | 2-100mm A/F |
| Nitronic 50 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Nitronic Alloy 50 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic Alloy UNS S20910 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 50 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 50 Section | 3.0 to 12.0mm thickness |
| Nitronic Alloy UNS S20910 Round bar size | Diameter: 3-~800mm |
| Nitronic 50 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 50 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 50 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 50 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic Alloy UNS S20910 Technique | Nitronic 50 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 50 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 50 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 50 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 50 | .06 | .10 | 0.03 | 1.00 | 0.20 – 0.40 | 11.50 – 13.50 | 20.50 – 23.50 |
| Hardness MAX, Brinell | 241 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 50 | S20910 | 1.3964 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
