Brian Fasteners, a Houston, USA-based manufacturer and supplier of Nitronic 40 bars and rods, is a trusted name in manufacturing high-quality Nitronic 40 bars and rods. The company uses precision metallurgical and fabrication technology to produce high-integrity Nitronic 40 alloy products. Due to its excellent mechanical and corrosion characteristics, Nitronic 40 is suitable for severe environments. Brian Fasteners maintains dimensional specification consistency, surface finish, and material traceability. Operating in industries such as chemical processing, oil & gas, and general engineering, Brian Fasteners offers customized machining, on-time fulfillment, and comprehensive technical support. Brian Fasteners‘ Nitronic 40 bars and rods are a testament to its commitment to specialty alloys of high performance in industrial-grade applications.
Nitronic 40 is an austenitic stainless steel alloy that contains 20–22% chromium, 9–11% manganese, 0.1–0.25% nitrogen, and trace nickel. No molybdenum content is there. Tensile strength is between 800 to 1,200 MPa, yield strength from 500 to 900 MPa and elongation from 30–60%. Due to high nitrogen and manganese content, Nitronic 40 exhibits enhanced strength, toughness, and resistance to corrosion, especially in reducing acid and brine solution environments. The alloy exhibits performance at high temperatures, up to a level of around 600 °C, and provides adequate stress corrosion cracking resistance.
| Grade | Nitronic alloy 40 Round Bar bars |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

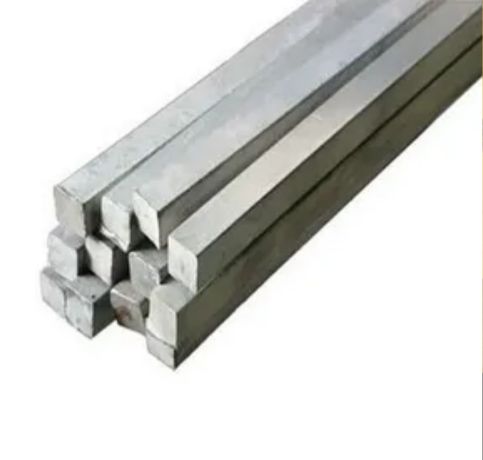

| Nitronic 40 Square bar size | 4 to 100mm |
| Nitronic Alloy 40 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| 40 Nitronic Alloy Hex Bar size | 2-100mm A/F |
| Nitronic 40 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Nitronic Alloy 40 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| 40 Nitronic Alloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 40 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 40 Section | 3.0 to 12.0mm thickness |
| 40 Nitronic Alloy Round bar size | Diameter: 3-~800mm |
| Nitronic 40 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 40 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 40 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 40 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| 40 Nitronic Alloy Technique | Nitronic 40 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 40 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 40 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 40 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 40 | 0.08 | 10.0 – 8.0 | 0.030 | 1.00 | 0.40 – 0.15 | 7.50 – 5.50 | 21.50 – 19.00 |
Ultimate Tensile, min. | Yield Strengtd (0.2% OS) min. | Elong. in 2 in., or 50mm, min., % | R/A | Hardness, max. | |
Min | 95 KSi | 48 KSi | 35 |
| |
Max | 241 Brinell | ||||
Min | 655 MPa | 330 MPa | |||
Max | 100 Rockwell B |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 40 Round Bars | S21900 | – |
Nitronic 40 bars are available in both rough and smooth finishes, depending on the manufacturing process and customer requirements. Smooth finishes are typical for applications needing better aesthetics or precision.
Nitronic 40 rods are available in sizes ranging from 3mm to 300mm diameter. Finishes include bright, polished, black, and rough-turned, catering to industrial and decorative applications.
Yes, Nitronic 40 bar can be welded using standard methods like TIG, MIG, and shielded metal arc welding. Preheating is not required, and post-weld annealing ensures optimal properties.
Brian Fasteners‘ rods and bars of Nitronic 40 are used for chemical processing equipment, such as reactor internals, valves, and piping, because of their acid and chloride resistance. In the oil and gas industry, they perform downhole components, pump parts, and wellheads that are exposed to sour or saltwater environments. Due to their toughness and strength, they can be applied in high-stress structural and mechanical components. They are also applied in marine fittings and desalination equipment. Nitronic 40‘s durability and flexibility guarantee Brian Fasteners‘ bars meet performance requirements in industries that need corrosion resistance and mechanical strength.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
