George Metals is a reliable manufacturer and supplier of top-notch nickel alloys in Houston, USA, which provides superior **Nimonic 115 Bars and Rods**. Due to its high strength, oxidation resistance, and stability even at high and low temperatures, Nimonic 115 products are designed for demanding applications in the aerospace, turbine, and industrial sectors. George Metals provides precise manufacturing, stringent quality checks, and accordance with international standards. Servicing industries like aerospace, power generation, and defense, the company stands well-known in the USA and worldwide for providing superalloy materials that operate effectively in the most exacting high-temperature conditions.
**Nimonic 115 Bars and Rods** are produced from a nickel-chromium-cobalt alloy with around 58% nickel, 24% chromium, 5% cobalt, 1.4% aluminum, and 4.9% titanium. This mix offers superior high-temperature strength and resistance to thermal fatigue and oxidation. The product—**Nimonic 115 Bars and Rods**—provides tensile strengths of over 1000 MPa and structural integrity up to 1000°C (1832°F). These bars, supplied in different diameters and lengths, are generally supplied in solution-treated or age-hardened states for maximum performance under high-stress, high-temperature conditions.
| Grade | Nimonic 115 – UNS |
|---|---|
| Standard | ASTM, ASME, API, GB, AISI, DIN, EN, SUS, UNS |

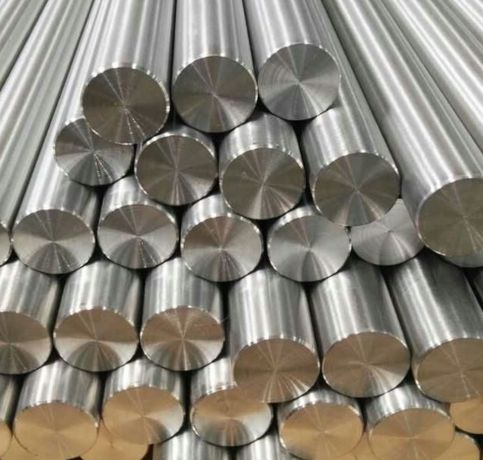

| Nimonic 115 Round bar size | Diameter: 3mm~800mm |
| Nimonic 115 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

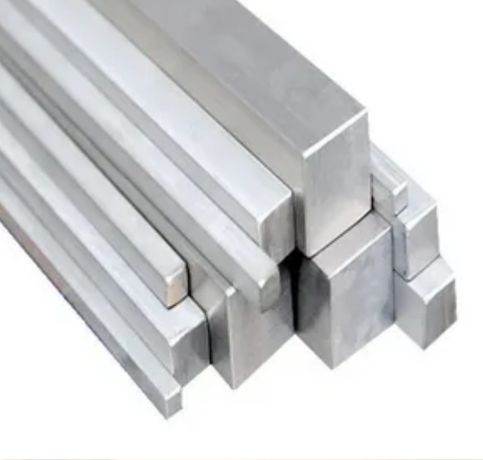

| Nimonic 115 Square bar size | 4mm*4mm~100mm*100mm |
| Nimonic 115 Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |
| Nimonic 115 Hex Bar size | 2mm~100mm |
| Nimonic 115 Billet Size | 1/2″ to 495mm Diameter |

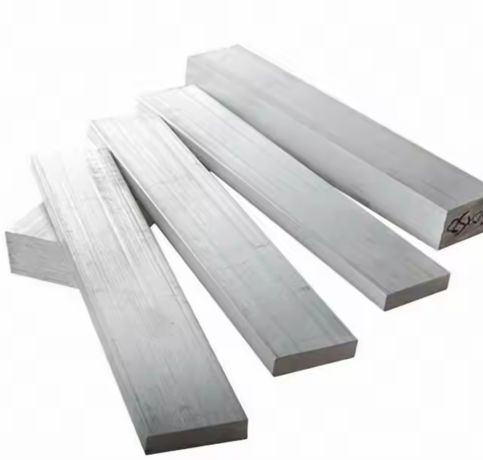

| Nimonic 115 Rectangles Size | 33mm x 30mm to 295mm x 1066mm |
| LENGTHS | 12 RANDOM LENGTHS AND LONG BARS:15 20 RANDOM LENGTHS |
| Nimonic 115 Round Bar Standard Dimensions | Diameter / Height:As the customer required |
| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Nimonic 115 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Element | Content (%) |
|---|---|
| Nickel, Ni | 54 |
| Chromium, Cr | 14.0-16.0 |
| Cobalt, Co | 13.0-15.5 |
| Aluminum, Al | 4.50-5.50 |
| Molybdenum, Mo | 3.0-5.0 |
| Titanium, Ti | 3.50-4.50 |
| Iron, Fe | 1.0 |
| Manganese, Mn | 1.0 |
| Silicon, Si | 1.0 |
| Copper, Cu | 0.20 |
| Zirconium, Zr | 0.15 |
| Carbon, C | 0.12-0.20 |
| Sulfur, S | 0.015 |
| Boron, B | 0.010-0.025 |
| Tensile Strength | Min 185KSI | Min 1277MPA |
| Yield Strength | Min 141KSI | MIN 973MPA |
| Elongation | Min 38% |
| Alloy Name | Trade Name | UNS No. | British Specs | American Specs | German Specs | French Specs |
|---|---|---|---|---|---|---|
| Alloy 115 | Nimonic 115 | BS HR4 | WS 2.4636 | AFNOR NCK 15ATD |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
George Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Houston, USA
