Houston, USA-based George Metals is a reliable manufacturer and supplier of Nickel Alloy 200 Bars and Rods that provide high-quality nickel products for applications in severely corrosive and high-temperature environments. Renowned for their precise manufacturing and adherence to stringent ASTM and ASME standards, George Metals provides Nickel 200 materials that fulfill the high demands of chemical processing, marine, and power generation industries. Their Nickel Alloy 200 Bars and Rods stand out for their purity, superior mechanical properties, and resistance to corrosion. With stable customer service, quality control, and prompt delivery, George Metals is the go-to for nickel alloy solutions.
Nickel Alloy 200 Bars and Rods consist of 99.0% minimum pure nickel with traces of iron (≤0.4%), manganese (≤0.35%), carbon (≤0.15%), and copper (≤0.25%). This commercially pure nickel alloy has superior corrosion resistance, especially in caustic alkali conditions. Its mechanical properties are tensile strength of around 380–450 MPa, yield strength of around 100 MPa, and elongation of around 40–45%. Nickel 200 has superior thermal and electrical conductivity, low gas content, and high ductility. Nickel 200 also sustains performance when used at cryogenic temperatures and is extremely formable and weldable, and therefore it can be suitably used in various industrial applications.
| Standard | ASTM B160, ASME SB160 |

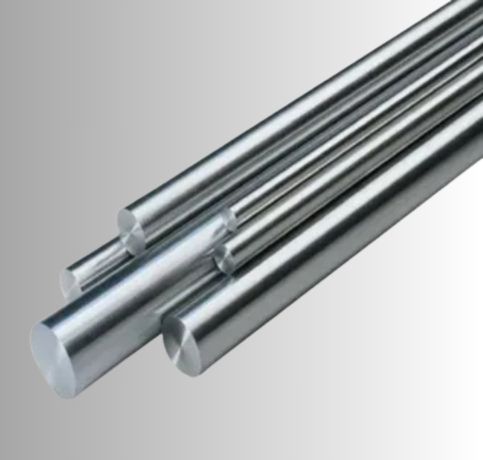

| Round Bar Size | 3mm~ 800mm |

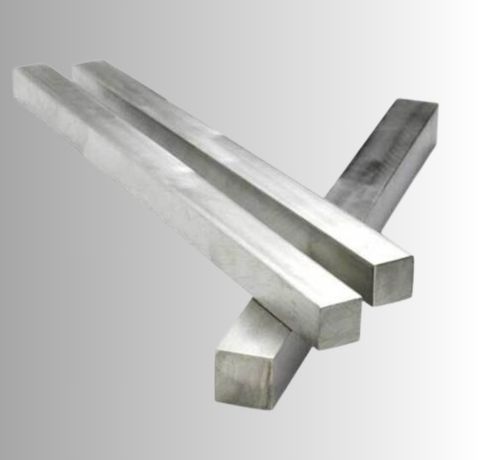

| Square Bar Size | 4mm* 4mm ~100mm* 100mm |

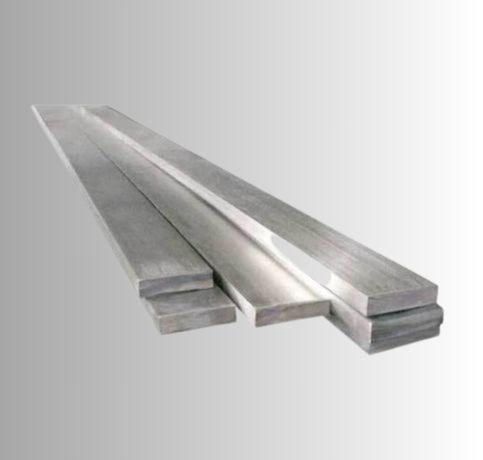

| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 2000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | UNS | WNR. | JIS | EN |
|---|---|---|---|---|
| Nickel 200 | N02200 | 2.4066 | NW 2200 | Ni 99.2 |
Nickel Alloy 200 Bars and Rods are commonly applied where there is a need for high corrosion resistance along with superior thermal and electrical conductivity. Within the chemical processing industry, they are utilized in equipment such as vessels, piping, and heat exchangers that treat caustic soda, hydrochloric acid, and other corrosive chemicals. They are utilized by the electronics industry in battery components, electrical conductors, and terminals because of their high conductivity. In marine and aeronautic uses, Nickel 200 is prized for corrosion resistance against saltwater and atmospheres. It is also used in food processing units, manufacture of synthetic fibers, and reactors where contamination is to be kept to a minimum.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
