Monel K500 Bars/Rods

Houston-based George Metals is a prominent producer and distributor of high-strength Monel K500 Bars and Rods used in industries requiring superior strength and corrosion resistance. With expertise in nickel-based alloys, George Metals produces precision-fabricated Monel K500 products for severe applications like marine, oil and gas, and chemical processing. With emphasis on quality, adherence to ASTM B865 standards, and sizes and finishes to order, George Metals provides assured and timely supply. With in-house expertise and state-of-the-art processing facilities, they are a partner of choice for mission-critical applications demanding heavy-duty and high-strength alloy materials.

Monel Alloy K500 Bars Supplier in USA, Monel UNS N05500 Hollow Rods Price List in Houston, Monel 2.4375 Rectangular Bars Supplier in Houston, Monel Alloy DIN 2.4375 Hexagonal Bars Exporter in West Houston, Monel K500 T-Bars Exporter in USA, Monel K500 Flat Rods Exporter in Texas, ASME SB865 Monel K500 Flat Bars USA, Monel UNS N05500 Hollow Round Bar Manufacturer in California, Monel K500 Round Bars Distributor in USA, Monel Alloy K500 Polished Rods Dealer in West Houston

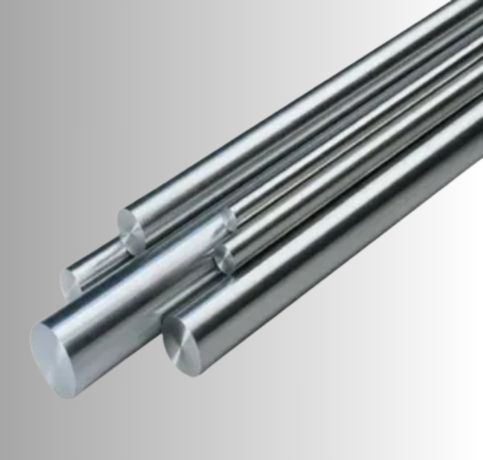

Monel K500 Round Bars

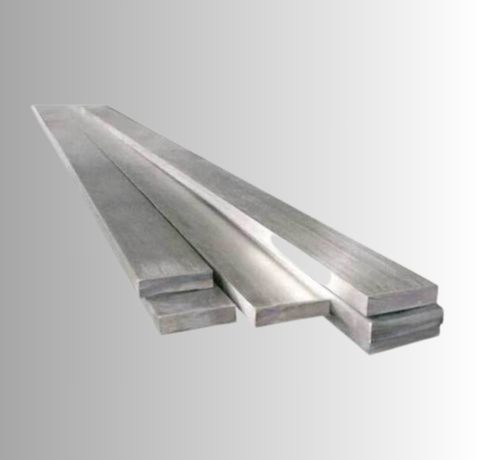

Monel Alloy K500 Rectangular Bars

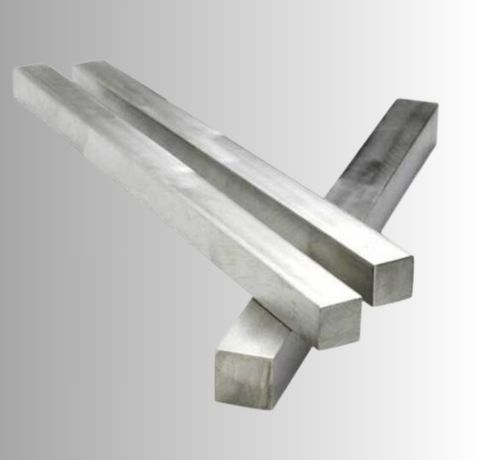

Monel K500 Square Rods

Monel K500 Rods and Bars contain about 63% nickel and 30% copper along with minor but significant amounts of aluminum (2.3–3.15%) and titanium (0.35–0.85%) as age-hardening additions. The alloy reconciles Monel 400’s superior resistance to corrosion with increased mechanical hardness and strength. It has a tensile strength of up to 965 MPa, yield strength of approximately 690 MPa, and elongation of around 20%. Monel K500 maintains toughness below sub-zero temperatures and is not magnetic even on aging. The alloy also shows excellent resistance to stress-corrosion cracking, erosion, and pitting in marine and chemical environments.

Monel K500 Rods Dealer in West Houston, Monel Alloy K500 Round Bars Manufacturer in West Houston, Monel DIN 2.4375 Square Bars Supplier in Texas, Monel K500 Flat Bars Price List in Houston, Monel K500 Rectangular Bars Supplier in California, Monel K500 Bars Price List in Texas, Monel K500 Round Bars Exporter Stockist in Houston, Stockist of Monel Alloy K500 Round Bars in Houston

Monel K500 Bars and Rods Specification

Standard	ASTM B865, ASME SB865
Round Bar Size	3mm~ 800mm
Square Bar Size	4mm* 4mm ~100mm* 100mm
Flat Bar Size	2mm ~ 100mm
Hex Bar Size	2mm ~ 100mm
Angle Size	3mm* 20mm* 20mm~ 12mm* 100mm* 100mm
Thickness	50 mm to 6000 mm Long
Length	1 To 6 Meters, Custom Cut Length
Form	Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc

Chemical Compositions of Monel K500 Rods

Grade	Ni	Fe	C	Mn	Si	Cu	Al	S	Ti
Monel K500	63.0 min	0.5 – 2	0.25 max	1.5 max	0.5 max	27.0 – 33.0	2.3 – 3.15	0.010 max	0.35 – 0.85

Monel Alloy K500 Bars Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.44 g/cm3	1350 °C (2460 °F)	Psi – 160000 , MPa – 1100	Psi – 115000 , MPa – 790	20 %

Monel Alloy K500 Bars and Rods Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Monel K500	2.4375	N05500

You Need Our Support, to Have Any Projects?

Test Certificate

Why George Metals?

Packaging

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

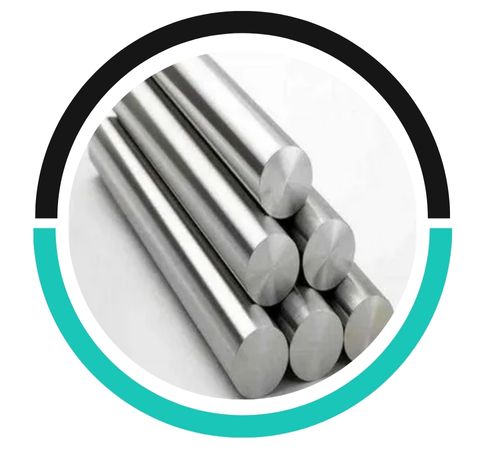

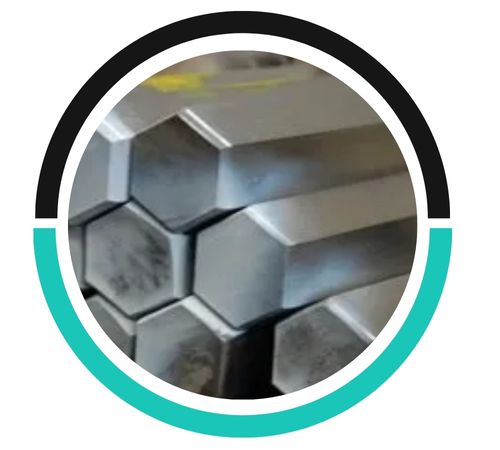

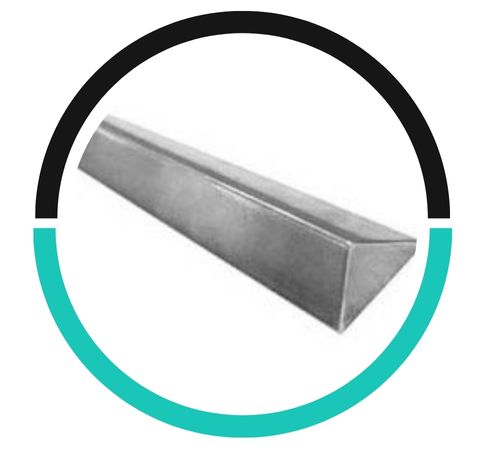

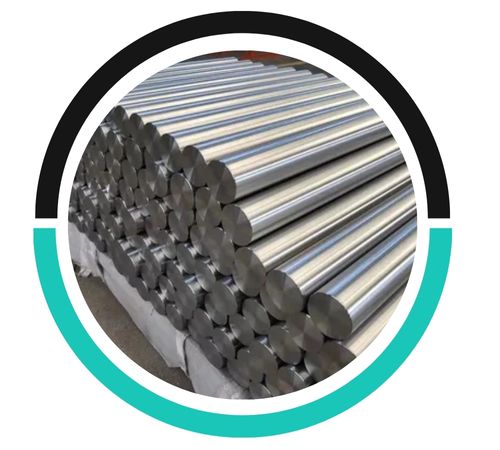

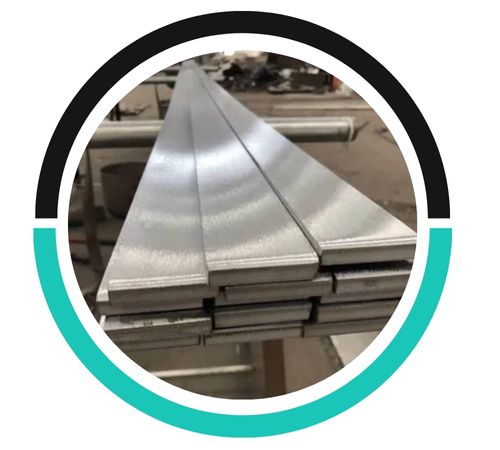

Monel Alloy K500 Bars and Rods Types

Monel Alloy K500 Rods Price in California, Monel Alloy K500 Round Bars USA, Monel DIN 2.4375 Rectangular Bars Supplier in Texas, ASTM B865 Monel K500 Rectangular Rods Exporter in USA, Monel 2.4375 Round Bars Stockist in Houston, Monel K500 Hex Bars Supplier in USA, Monel UNS N05500 Cold Drawn Round Bars Distributor in Texas, ASTM B865 Monel K500 Rods Stockist California

Monel K500 Bars and Rods Uses

Monel K500 Bars and Rods are extensively used in severe applications where strength and corrosion resistance are required to be high. In marine environments, they are particularly suitable for propeller shafts, pump shafts, fasteners, and seawater-exposed parts. The oil and gas sector applies them to non-magnetic collars for drilling, valve stems, downhole tools, and sour gas service components. Chemical processing utilizes Monel K500 in pumps, heat exchangers, and equipment that comes into contact with corrosive chemicals. Aerospace and military uses are advantaged by its high strength-to-weight ratio and stress-durability. Electronic components, springs, and pressure-sensitive devices that need extended reliability also use it.

Our Products

Other Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
