George Metals stands out as a top-notch manufacturer and supplier located in Houston, USA, focusing on high-quality Monel Bars and Rods that are designed to offer exceptional corrosion resistance and reliable strength, even in the toughest conditions. Crafted to meet rigorous ASTM, ASME, and international standards, these nickel-copper alloys come in various grades, including Monel 400 and Monel K500, catering to a wide array of industrial requirements. With a diverse selection of diameters, lengths, and finishes, Monel Bars and Rods provide excellent machinability, toughness, and thermal conductivity. Industries like marine, chemical processing, oil and gas, and aerospace trust George Metals for their consistent quality and dependable supply.
Monel Bars and Rods are nickel-copper alloys that typically consist of about 63% nickel and 30–34% copper, along with trace amounts of iron, manganese, carbon, and silicon. Monel 400 boasts a tensile strength of around 550 MPa while maintaining impressive ductility and toughness across a wide temperature range. On the other hand, Monel K500, which is precipitation-hardened with aluminum and titanium, achieves a tensile strength that exceeds 965 MPa. These alloys are known for their outstanding resistance to seawater, hydrofluoric acid, alkalis, and stress corrosion cracking. Their unique blend of strength, weldability, and corrosion resistance ensures reliable performance in challenging environments.

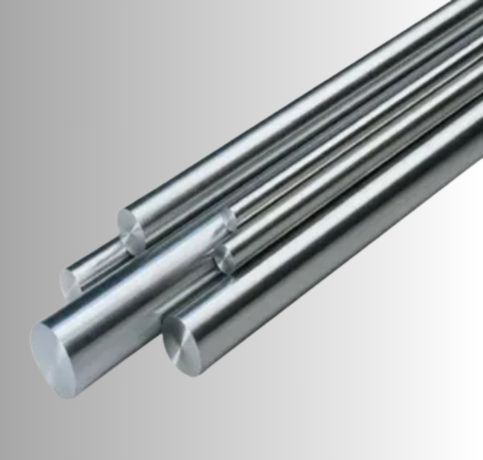

Monel Round Bar Specification : ASTM B164 / A479, ASME SB164 / A479
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 14mm-300mm
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length

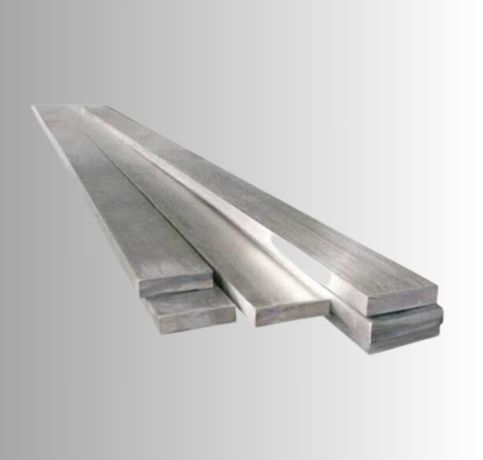

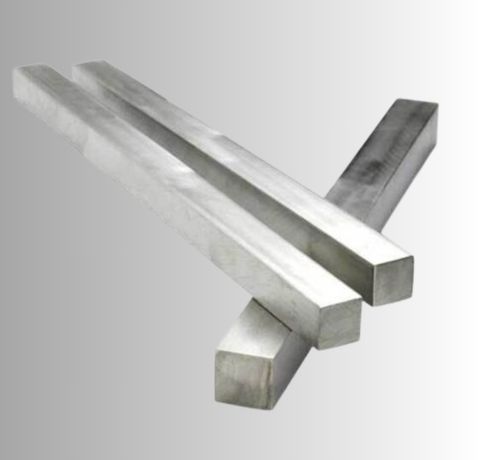

Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | Ti | S |
|---|---|---|---|---|---|---|---|---|---|
| 400 | 63.0- 70.00 max | 2.50 max | 0.3 max | 2.00 max | 0.50 max | Remainder | – | – | 0.024 max |
| K500 | 63.0 min | 05 – 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 – 33.0 | 2.3 – 3.15 | 0.35 – 0.85 | 0.010 max |
| Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
|---|---|---|---|---|
| 400 | 75 to 90 | 25 to 50 | 60 to 35 | 60 to 80 |
| K500 | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15,000 , MPa – 790 | 20 % | – |
| STANDARD | UNS | WNR. | JIS | EN |
|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | NW 4400 | NiCu30Fe |
| Monel K500 | N05500 | 2.4375 | – | – |
Monel Bars and Rods find extensive use in industries that demand remarkable corrosion resistance and mechanical strength. In marine settings, they are commonly used for propeller shafts, seawater pump components, and fasteners that are exposed to saltwater. In the oil and gas sector, you’ll find them in valves, downhole equipment, and processing systems that deal with sour gas and corrosive fluids. Chemical processing plants depend on Monel for safely handling hydrofluoric and sulfuric acids. Aerospace manufacturers specify these materials for fuel system components and structural parts that need to withstand thermal cycling. Additionally, the power generation and defense industries utilize Monel for various applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
