Monel 400 Forgings

Houston-based George Metals is a reliable producer and supplier of Monel 400 Forgings, providing corrosion-resistant and high-strength parts for applications in some of the most abrasive industrial conditions. With state-of-the-art forging facilities and thorough compliance with international standards like ASTM B564, George Metals guarantees that every Monel 400 product is stringent in performance and dimension. Their Monel 400 forgings find universal application in marine, chemical, and oil & gas industries because of their strong resistance to seawater, acids, and alkalis. Precision-forged solutions by George Metals are supported by skilled technical assistance and reliable delivery for high-stakes applications.

Monel 400 Open Die Hammer Forging Supplier in Houston, Monel Alloy N04400 Press Forgings in West Midland, Monel DIN 2.4360 Open Die Hammer Forging Stockist in Midland, ASTM A182 Monel N04400 Forging Price List West Midland, Monel N04400 Impression Die Forging Distributor in Texas, Monel Alloy UNS N04400 Cold Forging Stockist California, UNS N04400 Monel 400 Open Die Forging Exporter in USA, Monel UNS N04400 Compression Forging Price in California, 2.4360 Monel Upset Forging Dimensions, UNS N04400 Monel Forgings Supplier in Texas

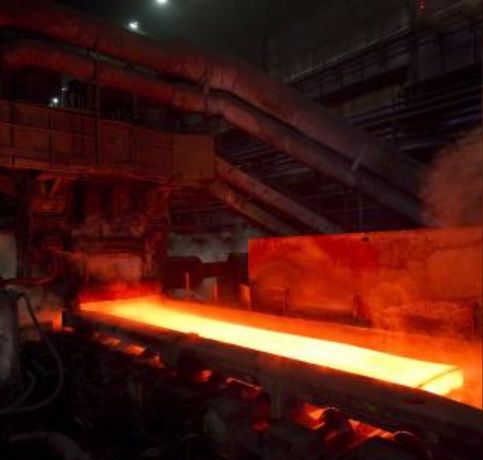

Monel 400 Hot Forging

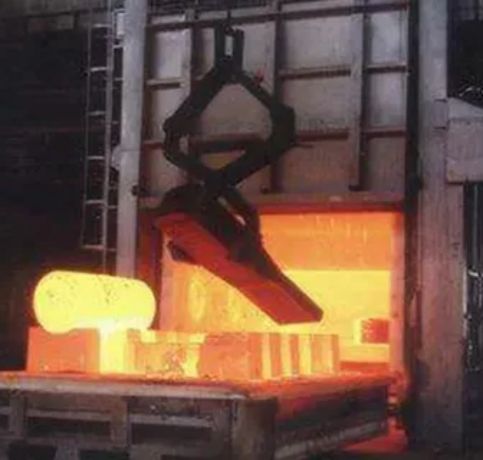

Monel 400 Open Die Forging

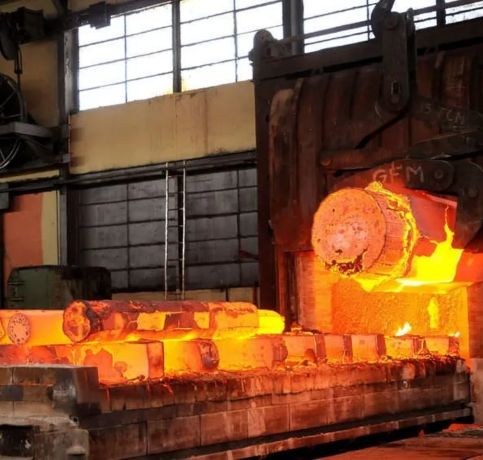

Monel 400 Closed Die Forging

What is Monel 400 Forgings?

Monel 400 Forgings consist mainly of about 63% nickel and 30–34% copper, with trace elements of iron, manganese, silicon, and carbon. This solid-solution alloy has a wonderful resistance to corrosion in broad environments, such as seawater and acidic media. Monel 400 has tensile strength of about 480–620 MPa, yield strength of about 170–275 MPa, and elongation of 30–40%. The alloy has good toughness at sub-zero temperatures and has wonderful weldability and thermal conductivity. Monel 400 does not age harden and is hardened by cold working only.

Monel 400 Compression Forging Texas, Monel N04400 Impression Die Forging Size Chart, Monel 2.4360 Upset Forging Dealer in Texas, ASTM B564 Monel 400 Forgings Price in Texas, Stockist of Monel UNS N04400 Forgings in Houston, Monel Alloy 400 Closed Die Forging Price List in Midland, Monel UNS N04400 Open Die Forging Weight Chart, Monel UNS N04400 Closed Die Hammer Forging Supplier in USA, Monel Alloy 400 Press Forging Manufacturer in West Midland

Monel 400 Forgings Specification

Specifications ASTM B564 / ASME SB564

Flat bar blocks up to 27″ width and 15,000 lbs.

Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length

Discs and hubs up to 50″ diameter and 20,000 lbs.

Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length

Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.

Grades Monel 400 Forging UNS (N04400), DIN (2.4360)

Chemical Compositions of Monel Alloy 400 Forgings

Grade	Ni	C	Al	Mn	Si	Fe	Cu	S
Monel 400	63.0 min	0.3 max	0.50 max	2.0 max	0.5 max	1.0 – 2.5	28.0 – 34.0	0.02 max

You Need Our Support, to Have Any Projects?

Test Certificate

Why George Metals?

Packaging

Monel 400 Forgings Mechanical Properties

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.8 g/cm3	1350 °C (2460 °F)	Psi – 35,000 , MPa – 240	Psi – 80,000 , MPa – 550	40 %

Monel Alloy 400 Forgings Physical Properties

Density		Melting Range		Curie Temperature		Electricity Resistivity
g/cm³	lb/in³	°F	°C	°F	°C	µΩ·m
8.8	0.318	2370-2460	1300-1350	70-120	21-49	547

Monel 400 Forgings Equivalent Grades

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST
Monel 400	N04400	2.4360	NU-30M	NiCu30Fe	NW 4400	NA 13	МНЖМц 28-2,5-1,5

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Monel 400 Forgings Types

Monel 2.4360 Compression Forging Size Chart in Texas, Monel 400 Open Die Forging Stockist in Houston, ASTM B564 Monel 400 Forgings Supplier in USA, ASME SB564 Monel N04400 Hot Forging Exporter in Texas, Monel 400 Forgings Manufacturer in California, N04400 Monel Industrial Forgings Distributor Exporter in USA, Monel UNS N04400 Seamless Rolled Forging Supplier in Houston, UNS N04400 Monel Cold Forging Size Chart in Midland

Monel 400 Forgings Uses

Monel 400 Forgings find extensive applications in those applications that require resistance to aggressive and corrosive environments. In marine engineering, they are best suited for valve and pump components, propeller shafts, and fasteners exposed to seawater. In petrochemical and chemical applications, Monel 400 forgings are applied in sulfuric acid, hydrofluoric acid, and other corrosive chemicals handling heat exchangers, pressure vessels, piping, and reactor parts. They find applications in offshore structures, components for sour gas service, and downhole instruments in the oil and gas industry. Their ability to be resistant to corrosion, toughness, and non-magnetic features also qualifies them to be used in aerospace, defense, and power generation systems.

Our Products

Other Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
