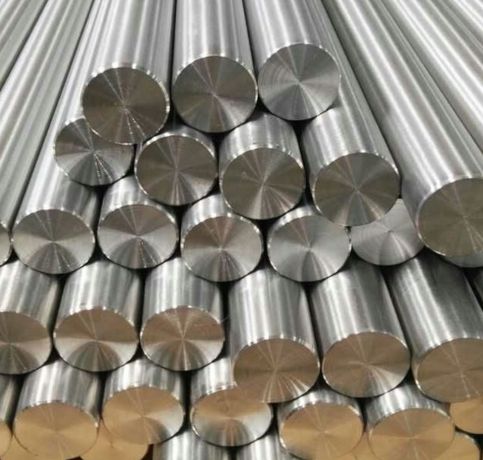

George Metals, a prominent manufacturer and supplier located in Houston, USA, specializes in high-quality Maraging Steel Bars and Rods designed for applications that demand exceptional strength, toughness, and dimensional stability. These bars are crafted using cutting-edge metallurgy techniques to ensure outstanding hardenability, machinability, and resistance to thermal distortion. Available in various grades like 18Ni (250, 300, 350), George Metals’ maraging steels find extensive use in critical components across industries such as aerospace, defense, tooling, and high-performance engineering. Renowned for their excellent aging response and weldability, these bars and rods promise a long service life and reliable performance in challenging load-bearing situations.
Maraging Steel is a low-carbon, ultra-high-strength alloy primarily made up of iron, 18–20% nickel, and trace amounts of cobalt, molybdenum, and titanium, with very little carbon content. These steels boast impressive tensile strengths ranging from 1400 MPa to over 2100 MPa, along with remarkable toughness, fatigue resistance, and minimal dimensional distortion post-heat treatment. Maraging steels are celebrated for their excellent machinability in the annealed state and can be precipitation hardened to achieve maximum strength. Their low thermal expansion and stable microstructure make them perfect for precision components that endure high stress and cyclic loading.
| Standard : | AMS, AMS, API |
| Specification : | ASTM A538, AMS 6512, Mil-S-46850D, BS S162, DTD 5212, MSRR 6551, MAT 102, MIA 101 |
| Size : | 20mm x 1200 x 500 |
| Specialize Sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Grade : | Maraging Steel 250/ 300 / 350 (UNS-K92890, K93120, S35000) |
| Grade | C | Mn | Si | Co | Fe | Ni | Mo | Ti | Al |
| Maraging C250 | .03max max | .10max max | .10max max | 7.50 max | Bal | 18.50 min | 4.80 max | .40 max | .10 max |
| Maraging C300 | .03max max | .10max max | .10max max | 9.0 max | Bal | 18.50 min | 4.80 max | .60 max | .10 max |
| Maraging C350 | .03max max | .10max max | .10max max | 12.0 max | Bal | 18.50 min | 4.80 max | 1.40 max | .10 max |
| Grade | Density | Average Coefficient of Thermal Expansion | Modulus of Elasticity |
| Maraging 250 | .289 lbs./cu.in | 5.6 x 10-6 in./ in./ ºF | 5.6 x 10-6 in./ in./ ºF |
| Maraging 300 | .289 lbs./cu.in | .289 lbs./cu.in | 292 lbs./cu.in |
| Maraging 350 | .289 lbs./cu.in | 6.3 x 10-6 in./ in./ ºF | 29.0x 10-6 psi |
| STANDARD | UNS | Material No | AMS | ASTM | Mil-S | BS | DTD | MSRR |
| Maraging Steel | K92890, K93120, S35000 | – | 6512 | A538 | 46850D | S162 | 5212 | 6551 |
Maraging Steel Bars and Rods are extensively utilized in aerospace landing gear, rocket motor casings, missile systems, nuclear components, and high-performance tooling, thanks to their ultra-high tensile strength, toughness, and thermal stability. In the automotive and motorsports sectors, they are employed for drive shafts, gears, and other high-stress components. When it comes to mold and die making, maraging steel provides excellent dimensional stability and wear resistance, making it a top choice for precision tooling. These bars also play a crucial role in defense and industrial applications, showcasing their versatility and reliability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
George Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Houston, USA
