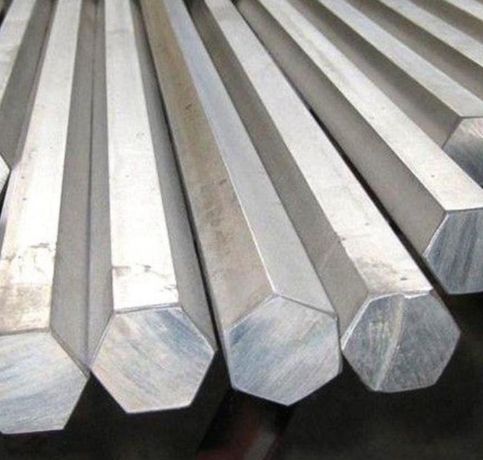

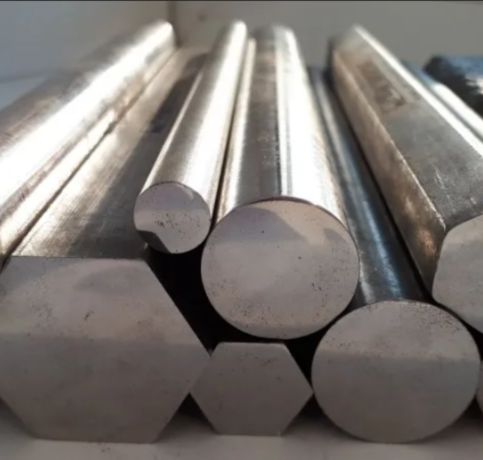

George Metals, a top-notch manufacturer and supplier based in Houston, USA, specializes in premium Inconel Hex Bars that are perfect for high-performance applications demanding exceptional strength, corrosion resistance, and thermal stability. Inconel, a superalloy made from nickel and chromium, is known for its reliability in extreme conditions, whether it’s high temperatures or chemically aggressive environments. George Metals offers a variety of Inconel hex bars, including grades 600, 625, and 718, all crafted to meet ASTM B166 and international quality standards. Renowned for their precision machining, tight tolerances, and excellent metallurgical integrity, these hex bars are perfect for aerospace, marine, chemical, and power generation sectors.
Inconel Hex Bars are typically made up of high Nickel (58–72%), Chromium (14–21%), along with Molybdenum, Iron, and Niobium, depending on the specific grade. These elements provide outstanding oxidation resistance and mechanical strength. For example, Inconel 625 boasts a tensile strength of over 827 MPa and impressive fatigue and creep resistance at high temperatures. The bars are non-magnetic, resistant to corrosion across a wide range of media, and maintain their structural integrity even under thermal cycling. George Metals guarantees that each hex bar is precision-forged and finished to exact specifications, making them ideal for machining, forming, and high-stress environments.
| Size range | 12 mm – 46 mm (1/2 inch- 1 ¾ inch) |
| Flat Hex Size Range | Thickness: 2 -100mm / Width: 10 to 500mm |

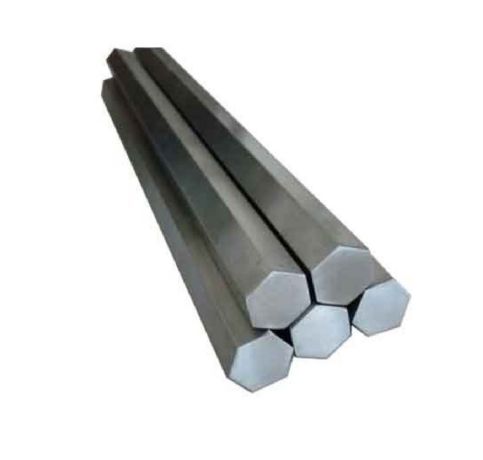

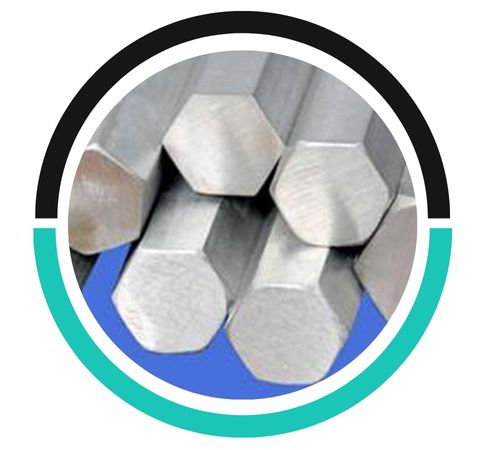

| Manufacturing Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged |
| Crack Test | Magnetic Particle Inspection (MPI) |
| Length | 2 meters to 7.5 meters ( 8 feet to 24 feet), or Custom Length as per Requirement |
| Size Tolerances | h10 and h11 |
| Chamfering | Available in 30°, 45° & 60° through fully automatic, both-end chamfering machine |

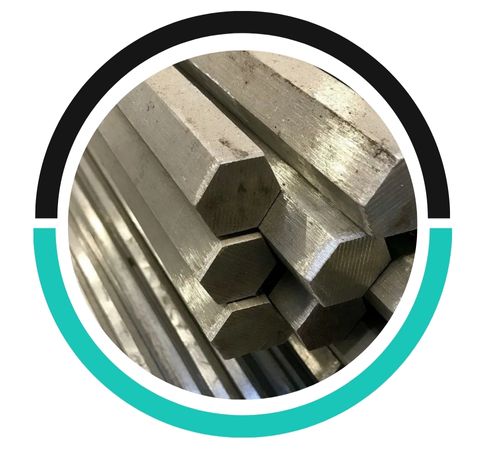

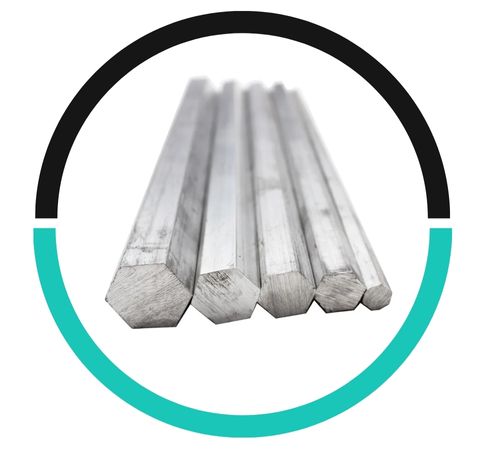

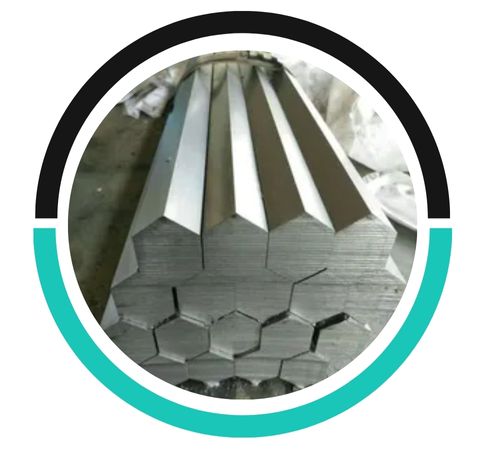

| Surface Finish | Cold (bright) drawn, hot rolled, centreless ground, peeled, Rough Turned, hot rolled annealed, smooth turned, Bright, slit rolled edge, Polish, Grinding, Centreless Ground & Black |

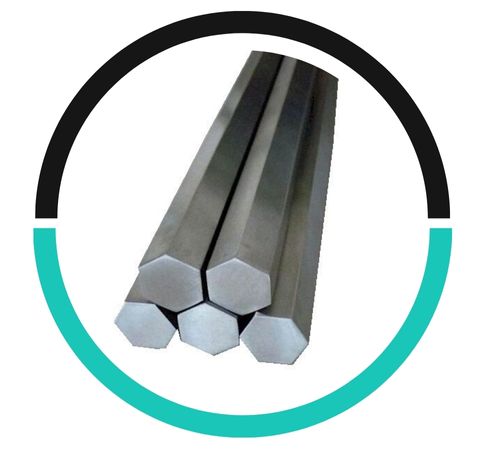

| Heat Treatment | Annealed, Solution Annealed |
| Tolerance | H8, H10, H9, H11, H12, K10, H13K9, K12 K11 or as per clients’ requirements |
| Ni | Cr | Fe | Mo | Nb+Ta | C | Mn | Si | Ph | S | Al | Ti | Co | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | Bal | 20 | – | 8 | 3.15 | – | – | – | – | – | – | – | – |
| Max | – | 23 | 5 | 10 | 4.15 | 0.10 | 0.50 | 0.50 | 0.015 | 0.015 | 0.40 | 0.40 | 1.0 |
| 0.2% Proof Stress | Tensile Strength | Elongation | Reduction of area | Hardness |
|---|---|---|---|---|
| MPA | MPA | % | % | HRB |
| Min | Min | Min | Min | Min |
| 414 | 827 | 30 | 40 | 145 |
Inconel Hex Bars are perfect for demanding applications in industries where strength and corrosion resistance are non-negotiable. In aerospace, they find their place in jet engines, exhaust systems, and structural components that face heat and pressure. The chemical industry utilizes them in reactors, heat exchangers, and piping systems that handle aggressive acids and solvents. In marine and offshore settings, Inconel hex bars are used for hardware, fasteners, and pump shafts that need to withstand seawater corrosion. Power generation facilities depend on them for steam lines and turbine components, ensuring reliability in critical operations.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
