Inconel Flat Bars

Houston, USA-based George Metals is a well-established Inconel Flat Bars manufacturer and supplier, providing high-performance nickel-chromium alloy products ideal for utilization under extreme temperature conditions and highly corrosive environments. ASTM B166 and associated specifications-compliant, George Metals’ Inconel Flat Bars offer excellent strength, oxidation resistance, and workability. Coming in grades including Inconel 600, 625, 718, and X-750, these bars find extensive application in aerospace, marine, chemical processing, and power generation industries. George Metals provides custom sizes, close tolerances, and technical assistance from experienced professionals to achieve the highest quality and performance levels.

Inconel Flat Rods Exporter in USA, Alloy Flat Bars Stockist in Houston, Inconel Flat Bar Supplier in USA, Inconel Cold Drawn Flat Bars Distributor in Texas, Alloy Flat Rods Stockist California Inconel Flata Bars Price in California, Inconel Flat Bar & Rods Houston, Inconel Bright Flat Bars Weight Calculator in Texas, Inconel Alloy Flat Bar Supplier in Houston, Alloy Cold Drawn Flat Rods Exporter in West Houston

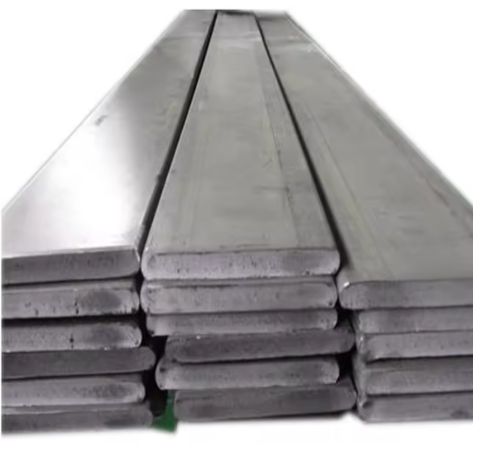

Custom-Finished Inconel Flat Bars

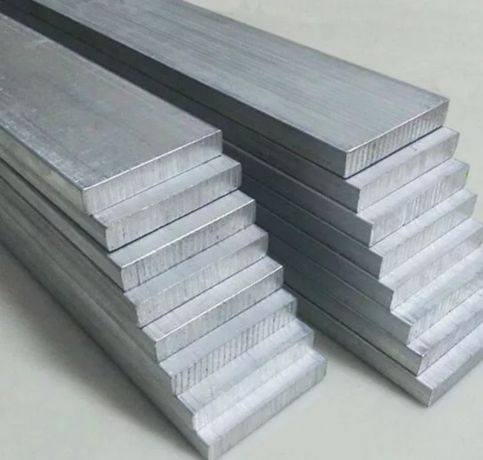

Black Inconel Alloy Flat Bars

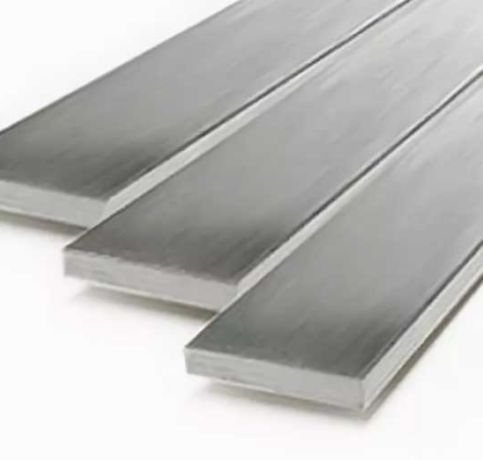

Ground Inconel Alloy Flat Rods

What is Inconel Hex Bars?

Inconel Flat Bars consist usually of 58–72% nickel, 14–23% chromium, and other constituents like molybdenum, cobalt, iron, niobium, and titanium, based on the grade of the alloy. These bars have superior mechanical properties such as tensile strengths between 690 MPa and more than 1240 MPa, good creep strength, and very good fatigue resistance. Inconel’s resistance to maintaining its mechanical strength at high temperatures (up to 1000 °C+) and corrosion from acidic, alkaline, and saline systems makes it suitable for extreme engineering applications. These flat bars also exhibit good weldability, machinability, and surface stability under high stress levels.

Inconel Polished Flat Bars Size Chart in USA, Inconel Bright Flat Rods Exporter in Texas, Alloy Flat Bar Manufacturer in California, Inconel Flat Bars Distributor in USA, Inconel Alloy Flat Rods Dealer in West Houston, Inconel Flat Bars Supplier in Texas, Inconel Flat Bars Stockist in Houston

Inconel Flat Bars Specifications

Size range	12 mm – 46 mm (1/2 inch- 1 ¾ inch)
Flat Bar Size Range	Thickness: 2 -100mm / Width: 10 to 500mm
Manufacturing Technique	Hot Rolled, Cold Drawn, Cold Rolled, Forged
Crack Test	Magnetic Particle Inspection (MPI)
Length	2 meters to 7.5 meters ( 8 feet to 24 feet), or Custom Length as per Requirement
Size Tolerances	h10 and h11
Chamfering	Available in 30°, 45° & 60° through fully automatic, both-end chamfering machine
Surface Finish	Cold (bright) drawn, hot rolled, centreless ground, peeled, Rough Turned, hot rolled annealed, smooth turned, Bright, slit rolled edge, Polish, Grinding, Centreless Ground & Black
Heat Treatment	Annealed, Solution Annealed
Tolerance	H8, H10, H9, H11, H12, K10, H13K9, K12 K11 or as per clients’ requirements

You Need Our Support, to Have Any Projects?

Test Certificate

Why George Metals?

Packaging

Inconel Flat Bars Chemical Composition

	Ni	Cr	Fe	Mo	Nb+Ta	C	Mn	Si	Ph	S	Al	Ti	Co
Min	Bal	20	–	8	3.15	–	–	–	–	–	–	–	–
Max	–	23	5	10	4.15	0.10	0.50	0.50	0.015	0.015	0.40	0.40	1.0

Inconel Flat Bars Mechanical Properties

0.2% Proof Stress	Tensile Strength	Elongation	Reduction of area	Hardness
MPA	MPA	%	%	HRB
Min	Min	Min	Min	Min
414	827	30	40	145

Inconel Flat Bar Sizes

Flat Size	KG’s per Metre	Standard Length (m)
10 x 3	0.24	6.0
13 x 3	0.31	6.0
13 x 5	0.46	6.0
16 x 3	0.38	6.0
16 x 5	0.64	6.0
16 x 8	1.03	6.0
20 x 3	0.48	6.0
20 x 5	0.81	6.0
20 x 6	0.97	6.0
20 x 10	1.61	6.0
25 x 3	0.60	6.0
25 x 5	1.01	6.0
25 x 6	1.21	6.0
25 x 8	1.61	6.0
25 x 10	2.01	6.0
25 x 12	2.41	6.0
32 x 3	0.77	6.0
32 x 5	1.29	6.0
32 x 6	1.55	6.0
32 x 8	2.06	6.0
32 x 10	2.58	6.0
32 x 12	3.09	6.0
40 x 3	0.97	6.0
40 x 5	1.61	6.0
40 x 6	1.93	6.0
40 x 8	2.58	6.0
40 x 10	3.22	6.0
40 x 12	3.86	6.0
40 x 16	5.15	6.0
40 x 20	6.14	6.0
50 x 3	1.21	6.0
50 x 5	2.01	6.0
50 x 6	2.41	6.0
50 x 8	3.22	6.0
50 x 10	4.02	6.0
50 x 12	4.83	6.0
50 x 16	6.44	6.0
50 x 20	8.05	6.0
50 x 25	10.1	6.0
65 x 3	1.57	6.0
65 x 5	2.62	6.0
65 x 6	3.14	6.0
65 x 8	4.18	6.0
65 x 10	5.23	6.0
65 x 12	6.28	6.0
65 x 16	8.37	6.0
65 x 20	10.5	6.0
65 x 25	13.1	6.0
75 x 5	3.02	6.0
75 x 6	3.62	6.0
75 x 8	4.83	6.0
75 x 10	6.04	6.0
75 x 12	7.24	6.0
75 x 16	9.66	6.0
75 x 20	12.1	6.0
75 x 25	15.1	6.0
75 x 40	24.1	6.0
90 x 5	3.62	6.0
90 x 6	4.35	6.0
90 x 8	5.79	6.0
90 x 10	7.24	6.0
90 x 12	8.69	6.0
100 x 5	4.02	6.0
100 x 6	4.83	6.0
100 x 8	6.44	6.0
100 x 10	8.05	6.0
100 x 12	9.66	6.0
100 x 16	12.9	6.0
100 x 20	16.1	6.0
100 x 25	20.1	6.0
100 x 50	40.2	6.0
110 x 6	5.31	6.0
110 x 8	7.08	6.0
110 x 10	8.85	6.0
110 x 12	10.6	6.0
130 x 5	5.23	6.0
130 x 6	6.28	6.0
130 x 8	8.37	6.0
130 x 10	10.5	6.0
130 x 12	12.6	6.0
130 x 16	16.7	6.0
130 x 20	20.9	6.0
130 x 25	26.2	6.0
150 x 5	6.04	6.0
150 x 6	7.24	6.0
150 x 8	9.66	6.0
150 x 10	12.1	6.0
150 x 12	14.5	6.0
150 x 16	19.3	6.0
150 x 20	24.1	6.0
150 x 25	30.1	6.0
150 x 50	60.4	6.0
180 x 5	7.24	6.0
180 x 6	8.69	6.0
180 x 10	14.5	6.0
180 x 12	17.4	6.0
180 x 16	23.2	6.0
180 x 20	29.0	6.0
180 x 25	36.2	6.0
200 x 6	9.66	6.0
200 x 8	12.9	6.0
200 x 10	16.1	6.0
200 x 12	19.3	6.0
200 x 16	25.7	6.0
200 x 20	32.2	6.0
200 x 25	40.3	6.0
250 x 6	12.1	6.0
250 x 8	16.1	6.0
250 x 10	20.1	6.0
250 x 12	24.1	6.0
250 x 16	32.2	6.0
250 x 20	40.2	6.0
250 x 25	50.3	6.0
300 x 6	14.5	6.0
300 x 8	19.3	6.0
300 x 10	24.1	6.0
300 x 12	29.0	6.0
300 x 16	38.6	6.0
300 x 20	48.3	6.0
300 x 25	60.4	6.0

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Inconel Flat Bars and Rods Types

Inconel Flat Rods Dealer in West Houston, Inconel Flat Bars Manufacturer in West Houston, Inconel Cold Drawn Flat Bar Supplier in Texas, Inconel Flat Bars Size Chart, Inconel Rods Price in California, Stockist of Inconel Flat Bars in Houston, Weight Calculator of Flat Rods Supplier in USA, Alloy Flat Bar Price List in Houston

Inconel Flat Bars Uses

Inconel Flat Bars have applications in numerous processes that need optimum resistance to heat and corrosion. They find applications in aerospace for the application to turbine blades, exhaust systems, and structural brackets. In the chemical and petrochemical industries, they are used in heat exchangers, reactors, and piping systems subjected to aggressive media. The marine and offshore industry uses Inconel in components in saltwater conditions, such as fasteners and support structures. They are applied in power generation in steam turbines and nuclear reactor components. Their high strength, toughness, and resistance to thermal cycling qualify Inconel Flat Bars for the most demanding and corrosive industrial applications.

Our Products

Other Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
