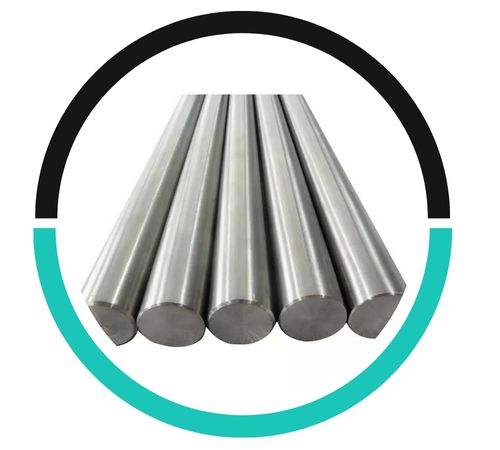

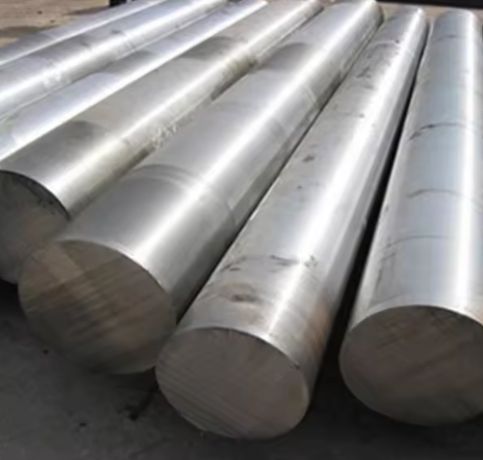

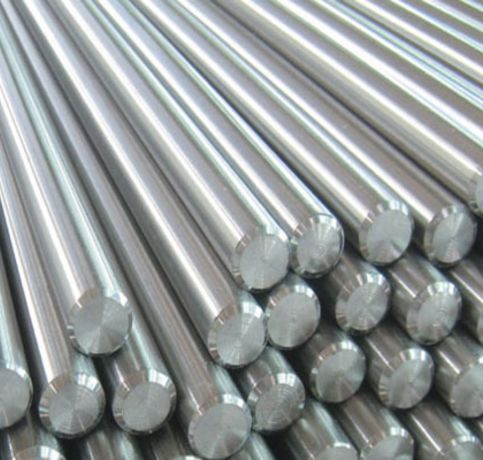

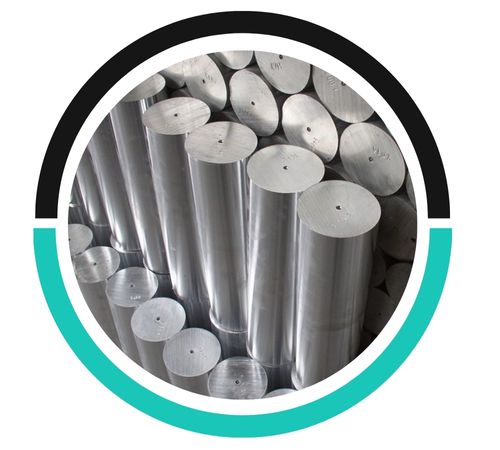

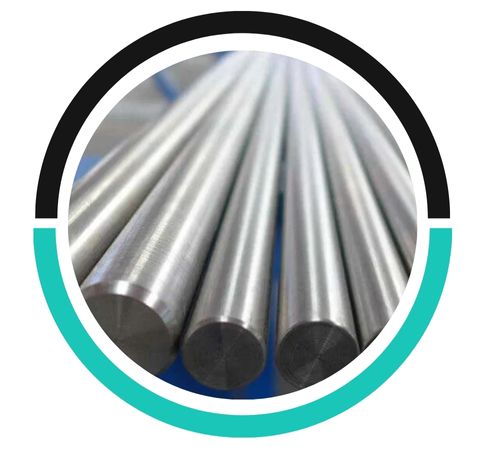

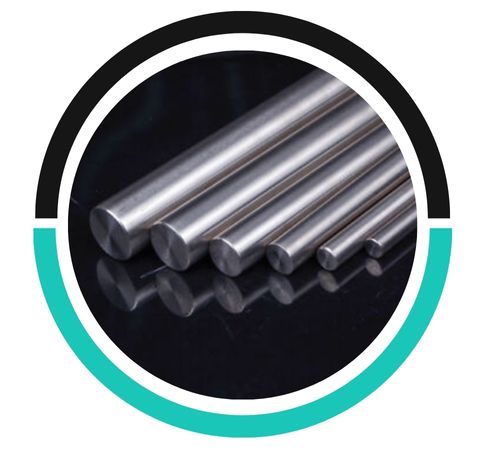

George Metals, a well-respected manufacturer and supplier located in Houston, USA, specializes in providing high-quality Incoloy Bright Bars that are engineered for outstanding performance in tough industrial settings characterized by corrosive elements, high temperatures, and significant stress. Crafted with meticulous attention to detail, these bars boast a bright surface finish, impressive dimensional accuracy, and remarkable mechanical properties. They come in various grades, including Incoloy 800, 825, and 925, each offering superior resistance to oxidation, carburization, and acid corrosion. George Metals caters to a diverse clientele across sectors like chemical processing, oil & gas, marine, aerospace, and power generation, where long-lasting reliability and resistance to wear are essential for maintaining system efficiency and safety.
Incoloy Bright Bars are mainly made up of nickel (30–46%), iron, and chromium (19–23%), with certain grades incorporating molybdenum, titanium, copper, and aluminum to enhance their corrosion resistance and strength. These bars demonstrate tensile strength between 550–850 MPa, along with excellent yield strength and resistance to stress rupture, particularly at high temperatures. Known for their outstanding oxidation and pitting resistance, Incoloy alloys are perfect for use in acidic and chloride-rich environments. Their good weldability, thermal stability, and mechanical toughness make Incoloy bright bars suitable for both structural and pressure-retaining applications.
| Dimensions | BS, DIN, EN, AISI, JIS, ASME, ASTM |
|---|---|
| Size of Round Bars | Thickness: 2 milimeter-100 milimeter |
| Surface | Bright, Hot Rolled Pickled, Hairline, Cold Drawn, Sand Blasting Finished, Polished |
| Processing | cutting to 650 milimeter |
| Tolerance | H9, K9, H8, H12, K12, H11, H13, K10, K11, H10, or as per need |
| Finish | centreless ground, Cold (bright) drawn, smooth turned, hot rolled, slit rolled edge, peeled, Rough Turned, hot rolled annealed, Polish, Bright, Centreless Ground, Grinding & Black |
| Method | Cold Drawn, Hot Rolled, Cold Rolled Rod, Forged Round Bars |
| Condition | annealed, Hardened & tempered |
| Density | g/cm3 | 7.94 | |
|---|---|---|---|
| lb/in.3 | 0.287 | ||
| Melting Range | °F | 2475 – 2525 | |
| °C | 1357 – 1385 | ||
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|---|
| MPa, min | MPa, min | %, min | %, min | Rockwell, max | |
| Hot worked, as-hot-worked | 550 | 240 | 25 | … | … |
| Cold-worked and hot-worked, annealed | 515 | 205 | 30 | … | … |
| US Bar | Metric | Japanese | Canadian/ASTM | ||||
|---|---|---|---|---|---|---|---|
| Diam. (Inch) | Bar Size | Diam. (mm) | Bar Size | Diameter (mm) | Bar Size | Diameter (mm2) | Bar Size |
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | ||
| 1.375 | #11 | 14 | 14 | 35 | 35 | ||
| 1.500 | #12 | 16 | 16 | 38 | 38 | ||
| 1.625 | #13 | 18 | 18 | 41 | 41 | ||
| 1.750 | #14 | 20 | 20 | 44 | 44 | ||
| 1.875 | #15 | 22 | 22 | 48 | 48 | ||
| 2.000 | #16 | 25 | 25 | 51 | 51 | ||
| 2.250 | #18 | 28 | 28 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Size | kilogram / Meter | kilogram / Foot | Size | kilogram / Meter | kilogram / Foot | Size | kilogram / Meter | kilogram / Foot |
|---|---|---|---|---|---|---|---|---|
| 1/8″ | 0.062 | 0.019 | 22mm | 2.979 | 0.908 | 3-1/4″ | 41.996 | 12.800 |
| 3mm | 0.055 | 0.017 | 20mm | 2.470 | 0.753 | 3″ | 35.762 | 10.900 |
| 4mm | 0.098 | 0.030 | 24mm | 3.543 | 1.080 | 3-3/4″ | 55.780 | 17.001 |
| 5/32″ | 0.095 | 0.029 | 7/8″ | 3.038 | 0.926 | 3-1/2″ | 48.772 | 14.850 |
| 5mm | 0.154 | 0.047 | 1″ | 3.970 | 1.210 | 4-1/4″ | 72.249 | 21.908 |
| 3/16″ | 0.141 | 0.043 | 25mm | 3.871 | 1.180 | 4″ | 63.340 | 19.306 |
| 6mm | 0.223 | 0.068 | 27mm | 4.490 | 1.368 | 4-3/4″ | 90.249 | 27.366 |
| 7/32″ | 0.190 | 0.058 | 26mm | 4.170 | 1.271 | 4-1/2″ | 80.340 | 24.4487 |
| 7mm | 0.298 | 0.091 | 30mm | 5.548 | 1.691 | 5-1/2″ | 121.000 | 36.690 |
| 1/4″ | 0.249 | 0.076 | 1-1/8″ | 5.033 | 1.534 | 5″ | 99.940 | 30.461 |
| 8mm | 0.398 | 0.120 | 32mm | 6.314 | 1.894 | 6-1/2″ | 167.630 | 51.093 |
| 5/16″ | 0.387 | 0.118 | 1-1/4″ | 6.349 | 1.924 | 6″ | 143.900 | 43.860 |
| 3/8″ | 0.557 | 0.170 | 35mm | 7.553 | 2.390 | 7-1/2″ | 225.000 | 68.226 |
| 9mm | 0.498 | 0.152 | 1-3/8″ | 7.550 | 2.303 | 7″ | 196.000 | 59.432 |
| 11mm | 0.748 | 0.228 | 38mm | 8.903 | 2.792 | 10″ | 397.140 | 121.048 |
| 10mm | 0.620 | 0.189 | 36mm | 7.999 | 2.438 | 8″ | 254.55 | 77.586 |
| 12mm | 0.889 | 0.271 | 40mm | 9.872 | 3.009 | |||
| 7/16″ | 0.761 | 0.232 | 1-1/2″ | 8.951 | 2.715 | |||
| 13mm | 1.043 | 0.318 | 1-3/4″ | 12.179 | 3.712 | |||
| 1/2″ | 0.994 | 0.303 | 1-5/8″ | 10.449 | 3.200 | |||
| 9/16″ | 1.256 | 0.383 | 1-7/8″ | 13.977 | 4.260 | |||
| 14mm | 1.207 | 0.368 | 45mm | 12.555 | 3.807 | |||
| 5/8″ | 1.551 | 0.473 | 50mm | 15.414 | 4.698 | |||
| 15mm | 1.391 | 0.424 | 48mm | 14.205 | 4.330 | |||
| 17mm | 1.791 | 0.543 | 2-1/8″ | 17.963 | 5.475 | |||
| 16mm | 1.578 | 0.481 | 2″ | 15.906 | 4.848 | |||
| 18mm | 2.001 | 0.610 | 60mm | 22.205 | 6.768 | |||
| 11/16″ | 1.880 | 0.573 | 2-1/4″ | 20.128 | 6.135 | |||
| 3/4″ | 2.237 | 0.682 | 2-3/8″ | 22.435 | 6.838 | |||
| 2-1/2″ | 24.856 | 7.576 | ||||||
| 2-5/8″ | 27.409 | 8.354 | ||||||
| 2-3/4″ | 30.083 | 9.169 | – | – | – |
Incoloy Bright Bars find extensive applications in chemical processing, nuclear reactors, marine hardware, oil & gas platforms, heat exchangers, and power generation systems, thanks to their impressive corrosion resistance and stability at high temperatures. These bars are perfect for piping systems, valve components, pump shafts, fasteners, furnace trays, and reactor vessels that are exposed to acidic, oxidizing, or chloride-rich conditions. In the aerospace and marine sectors, the mechanical strength and oxidation resistance of Incoloy ensure that these components can withstand demanding environments, making them a reliable choice for critical applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
