Brian Fasteners, based in Houston, USA, offers top-grade Hastelloy Bars and Rods for challenging industrial conditions. Hastelloy is a high-performance nickel-based alloy known for its strong resistance to chemical corrosion, pitting, and stress corrosion cracking. Available in grades like C276, C22, B2, and B3, these bars and rods are made to meet the strict demands of chemical processing, marine, and aerospace applications. With precise machining, tight tolerances, and full material certification, Brian Fasteners guarantees high quality and reliability for customers seeking corrosion-resistant metal solutions.
Hastelloy alloys usually consist of nickel (up to about 60%), molybdenum (up to about 30%), chromium (15% to 20%), and small amounts of iron, cobalt, and tungsten. Based on the grade, they provide tensile strengths from around 690 to 850 MPa, yield strength of approximately 300 to 400 MPa, and elongation up to 40%. Hastelloy gives excellent resistance to both oxidizing and reducing agents, including strong acids like hydrochloric and sulfuric acid. These bars stay strong in high-temperature and high-stress conditions, making them suitable for extreme situations.
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|
| Hastelloy Round Bar size | Diameter: 3-~800mm |

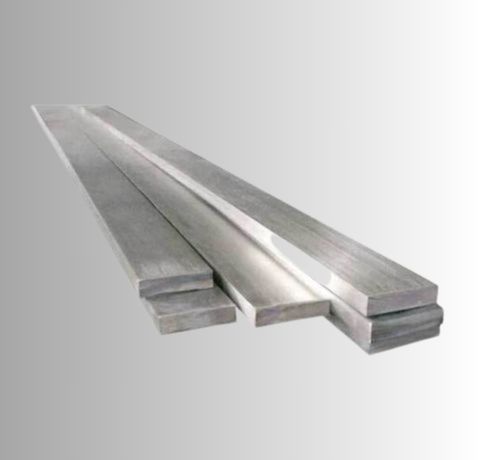

| Hastelloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Hastelloy Bar Angle size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Dimensions | Diameter / Height |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Stainless Steel Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |

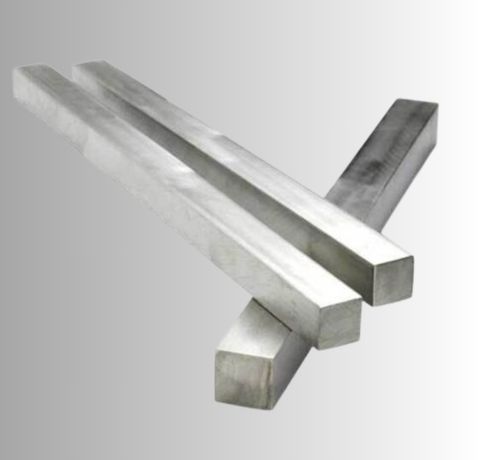

| Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
| Grade | UNS | Cr | Mo | Fe | C≤ | Si≤ | Co≤ | Mn≤ | P≤ | S≤ |
| B2 | N10665 | 1.0max | 26.0-30.0 | 2.0max | 0.02 | 0.10 | 1.0 | 1.0 | 0.04 | 0.03 |
| B3 | N10675 | 1.0-3.0 | 27.0-32.0 | 1.0-3.0 | 0.01 | 0.10 | 3.0 | 3.0 | 0.03 | 0.01 |
| X | N06002 | 20.5-23.0 | 8.0-10.0 | 17.0-20.0 | 0.05-0.15 | 1.0 | 0.5-2.5 | 1.0 | 0.04 | 0.03 |
| C22 | N06022 | 20.0-22.5 | 12.5-14.5 | 3.0-6.0 | 0.015 | 0.08 | 2.5 | 0.5 | 0.02 | 0.02 |
| C2000 | N06200 | 22.0-24.0 | 15.0-17.0 | 3.0max | 0.01 | 0.08 | 2.0 | 0.5 | 0.025 | 0.01 |
| C276 | N10276 | 14.5-16.5 | 15.0-17.0 | 4.0-7.0 | 0.01 | 0.08 | 2.5 | 1.0 | 0.04 |
| Mechanical properties | Tensile, min, ksi[MPa] | Yield, min, ksi[MPa] | Elongation, %(min) |
| B2 | 110[760] | 51[350] | 40 |
| B3 | 110[760] | 51[350] | 40 |
| X | 100[690] | 40[276] | 35 |
| C22 | 100[690] | 45[310] | 45 |
| C2000 | 100[690] | 45[310] | 45 |
| C276 | 100[690] | 41[283] | 40 |
Yes, Hastelloy Bars are highly corrosion-resistant, making them ideal for harsh environments, including chemical processing and marine applications. They resist pitting, crevice corrosion, and stress corrosion cracking effectively.
Yes, Hastelloy Rods can be customized in size and length to meet specific industry requirements. Their versatility ensures suitability for diverse applications.
Hastelloy bars perform exceptionally in high-temperature environments, offering thermal stability, oxidation resistance, and strength retention. They are ideal for demanding applications like chemical processing and aerospace.
Hastelloy Bars and Rods are widely used in chemical reactors, nuclear reactors, heat exchangers, scrubbers, and marine hardware. Their exceptional resistance to corrosion makes them suitable for harsh environments like hot concentrated acids, chlorine gas, and brine. In aerospace and power generation, they serve in parts that face high stress and temperature. Brian Fasteners provides Hastelloy rods designed for performance in highly corrosive and mechanically demanding environments, ensuring safe and efficient operations in the chemical, marine, and energy sectors.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
