Copper Nickel 90/10 Bars and Rods

Brian Fasteners, based in Houston, USA, produces and distributes Copper‑Nickel 90/10 rods and bars through accurate alloy melting and hot forming techniques. The 90/10 Cu‑Ni alloy provides superior resistance to seawater corrosion. Brian Fasteners inspects every bar to rigorous dimension and surface finish specifications. Supplying marine, offshore, desalination, and heat-exchanger industries, the company offers custom lengths, guaranteed delivery, and technical assistance. With provision of consistent, high-integrity Copper Nickel 90/10 bars and rods, Brian Fasteners reinforces its position as a supplier of corrosion-resistant copper alloys for stringent industrial applications.

Cupro Nickel 90/10 Bars Exporter in California, Cupro Nickel 90/10 Square Bar Stockist in Houston, DIN 2.0872 Hex Bar Supplier in USA, ASME SB111 Cupro Nickel 90/10 Rectangular Rod Distributor in Texas, Copper Nickel 90/10 Hex Rod Stockist in Texas ,Cupro Nickel 90/10 Square Rod Price in California, Cu-Ni 90/10 Bars in USA, UNS C70600 Forged Bar Manufacturer in Houston, Cu-Ni 90/10 Polish Flat Bar Supplier in Texas, 90/10 CuNi Cold Drawn Round bar Supplier in United kingdom

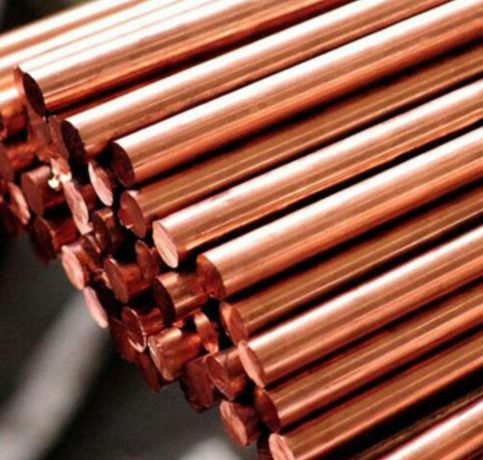

Copper Nickel 90/10 Cold Drawn Bars

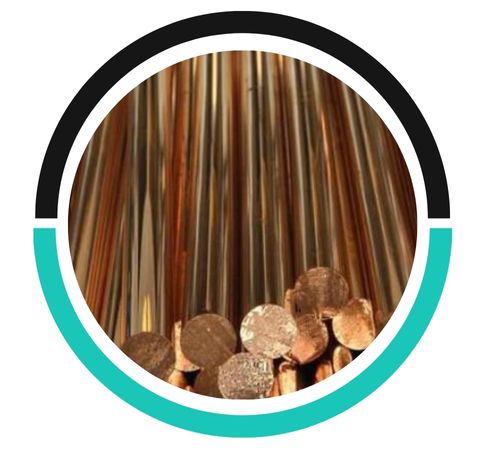

Cu-Ni 90/10 Bright Rods

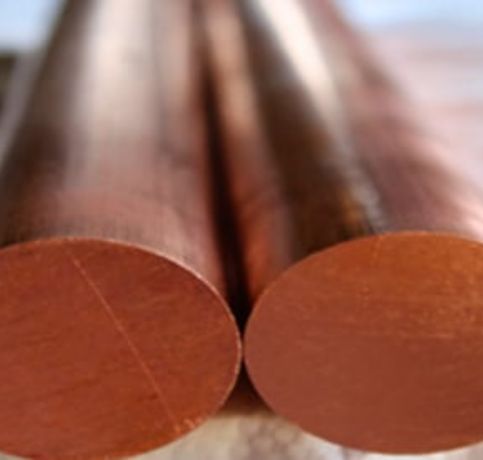

90/10 Cu-Ni Threaded Rods

Copper‑Nickel 90/10 is made up of about 90% copper and 10% nickel, with manganese at about 1%; there is trace iron and zinc. It has tensile strength of 300–450 MPa, yield strength of about 150–250 MPa, and elongation of 20–40%. The alloy possesses very good seawater corrosion resistance, biofouling, and erosion resistance. It also has moderate thermal and electrical conductivities, high formability, and weldability. Its balance makes the 90/10 Cu‑Ni alloy suitable for marine and heat-exchanger use.

Cupro Nickel UNS C70600 Bright Bar in Houston, ASME SB 111 Cupro Nickel 90/10 Flat Bar Supplier in USA, 90/10 Cu-Ni Flat Bar Price List in Houston, Stockist of Copper Nickel 90/10 Square Bar in Houston, Cu-Ni 90/10 Bars and Rods Exporter in West Houston, Cu-Ni 90/10 Rectangular Bar Exporter in USA, Cu-Ni 90/10 Hot Rolled Round Bar Exporter in Texas, Cu-Ni 90/10 Cold Drawn Bars Manufacturer in California, Cu-Ni 90/10 Black Bar Stockists in USA, High Quality Copper Nickel 90/10 Rods Dealer in West Houston

Copper Nickel 90/10 Bars and Rods Specification

Standard	ASTM B111, ASME SB111
Round Bar Size	3mm~ 800mm
Square Bar Size	4mm* 4mm ~100mm* 100mm
Flat Bar Size	2mm ~ 100mm
Hex Bar Size	2mm ~ 100mm
Angle Size	3mm* 20mm* 20mm~ 12mm* 100mm* 100mm
Thickness	50 mm to 6000 mm Long
Length	1 To 6 Meters, Custom Cut Length
Form	Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc

Chemical Compositions of Copper Nickel 90/10 Bars and Rods

Grade	Cu	Mn	Pb	Ni	Fe	Zn
Cu-Ni 90-10	88.6 min	1.0 max	.05 max	9-11 max	1.8 max	1 max

Copper Nickel 90/10 Bars and Rods Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.89 g/cm3	2260 F	50000 psi	20000 psi	30 %

Copper Nickel 90/10 Bars and Rods Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Copper Nickel 90 / 10	2.0872	C70600

You Need Our Support, to Have Any Projects?

Test Certificate

Why George Metals?

Packaging

Copper Nickel 90/10 Bars and Rods Sizes

Metric		US Rods		ASTM/ Canadian		Japanese
Rods Size	Diam. (mm)	Rods Size	Diam. (Inch)	Rods Size	Diam. (mm2)	Rods Size	Diam. (mm)
5	5	#2	0.250	10M	100	6	6
5.5	5.5	#3	0.375	15M	200	10	10
6	6	#4	0.500	20M	300	13	13
7	7	#5	0.600	25M	500	16	16
8	8	#6	0.750	30M	700	19	19
9	9	#7	0.875	35M	1000	22	22
10	10	#8	1.000	45M	1500	25	25
11	11	#9	1.125	55M	2500	29	29
12	12	#10	1.250			32	32
14	14	#11	1.375			35	35
16	16	#12	1.500			38	38
18	18	#13	1.600			41	41
20	20	#14	1.750			44	44
22	22	#15	1.875			48	48
25	25	#16	2.000			51	51
28	28	#18	2.250			57	57
32	32
36	36
40	40
44	44
50	50

Weight Chart of Copper Nickel 90/10 Bars and Rods

Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr
3mm	0.017	0.055	20mm	0.753	2.470	3″	10.900	35.762
1/8″	0.019	0.062	22mm	0.908	2.979	3-1/4″	12.800	41.996
5/32″	0.029	0.095	7/8″	0.926	3.038	3-1/2″	14.850	48.772
4mm	0.030	0.098	24mm	1.080	3.543	3-3/4″	17.001	55.780
3/16″	0.043	0.141	25mm	1.180	3.871	4″	19.306	63.340
5mm	0.047	0.154	1″	1.210	3.970	4-1/4″	21.908	72.249
7/32″	0.058	0.190	26mm	1.271	4.170	4-1/2″	24.4487	80.340
6mm	0.068	0.223	27mm	1.368	4.490	4-3/4″	27.366	90.249
1/4″	0.076	0.249	1-1/8″	1.534	5.033	5″	30.461	99.940
7mm	0.091	0.298	30mm	1.691	5.548	5-1/2″	36.690	121.000
5/16″	0.118	0.387	1-1/4″	1.924	6.349	6″	43.860	143.900
8mm	0.120	0.398	32mm	1.894	6.314	6-1/2″	51.093	167.630
9mm	0.152	0.498	1-3/8″	2.303	7.550	7″	59.432	196.000
3/8″	0.170	0.557	35mm	2.390	7.553	7-1/2″	68.226	225.000
10mm	0.189	0.620	36mm	2.438	7.999	8″	77.586	254.55
11mm	0.228	0.748	38mm	2.792	8.903	10″	121.048	397.140
7/16″	0.232	0.761	1-1/2″	2.715	8.951
12mm	0.271	0.889	40mm	3.009	9.872
1/2″	0.303	0.994	1-5/8″	3.200	10.449
13mm	0.318	1.043	1-3/4″	3.712	12.179
14mm	0.368	1.207	45mm	3.807	12.555
9/16″	0.383	1.256	1-7/8″	4.260	13.977
15mm	0.424	1.391	48mm	4.330	14.205
5/8″	0.473	1.551	50mm	4.698	15.414
16mm	0.481	1.578	2″	4.848	15.906
17mm	0.543	1.791	2-1/8″	5.475	17.963
11/16″	0.573	1.880	2-1/4″	6.135	20.128
18mm	0.610	2.001	60mm	6.768	22.205
3/4″	0.682	2.237	2-3/8″	6.838	22.435
			2-1/2″	7.576	24.856
			2-5/8″	8.354	27.409
			2-3/4″	9.169	30.083

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Copper Nickel 90/10 Bars and Rods Types

Cu-Ni DIN 2.0872 Hex Bar Dealer in Houston, AISI 90/10 Hex Bar Supplier in Houston, 90/10 Copper Nickel Hex Bar Manufacturer in West Houston, ASTM B151 90/10 Copper Nickel Forged Rods Supplier in Texas, Cupronickel 90/10 Rectangle Bar Size Chart, Copper Nickel 90/10 Solid Rod Price in California, UNS C70600 90/10 Copper Nickel Square Bars and Rods Supplier in Texas, ASME SB151 90/10 Cu Ni Half Round Bars Stockist in West Houston, Cupronickel 2.0872 Threaded Bar Supplier in Houston

Frequently Asked Questions (FAQ)

How Are Copper Nickel 90/10 Bars and Rods Sized?

Copper Nickel 90/10 bars and rods are sized by diameter, length, and cross-sectional dimensions, typically measured in millimeters or inches, conforming to ASTM, ASME, or international standards.

What Are The Considerations For Installing Copper Nickel 90/10 Bars and Rods?

Considerations for installing Copper Nickel 90/10 bars and rods include proper alignment, avoiding contamination, ensuring corrosion resistance in marine environments, and using compatible tools and fittings for secure connections.

Are Copper Nickel 90/10 Bars and Rods Suitable For Hygienic And Sanitary Applications?

Yes, Copper Nickel 90/10 bars and rods are suitable for hygienic and sanitary applications due to their corrosion resistance, antimicrobial properties, and ability to withstand harsh cleaning processes, ensuring cleanliness and durability.

Copper Nickel 90/10 Bars and Rods Uses

Brian Fasteners‘ 90/10 Copper Nickel bars/rods are employed in marine piping, seawater heat exchangers, condenser tubes, and fittings for hulls. They are utilized in offshore platforms in desalination equipment, marine fasteners, and corrosion-resistant structural components. Power generating plants use them for saltwater-exposed cooling systems. Their anti-fouling and erosion-resistance characteristics qualify them for marine hardware and pumps. Brian Fasteners provides stable supply and technical support to aid engineers employing Cu‑Ni 90/10 bars/rods in marine as well as corrosive industrial applications.
