Brian Fasteners, based in Houston, USA, is a reliable supplier and manufacturer of Copper Nickel 70/30 Forgings, specifically designed for harsh marine and chemical environments. The 70/30 alloy, made up of 70% copper and 30% nickel with added iron and manganese, offers strong seawater corrosion resistance, erosion, and biofouling. Brian Fasteners delivers custom-forged parts with high dimensional accuracy and excellent mechanical performance. These forgings are commonly used in high-pressure and high-temperature marine and industrial systems, where long-lasting corrosion resistance and structural stability are crucial.
Copper Nickel 70/30 alloy contains around 70% copper, 30% nickel, 0.4% to 1.0% iron, and 0.4% to 1.0% manganese. Mechanical properties include tensile strength between 400 and 500 MPa, yield strength from 150 to 220 MPa, and elongation between 30% and 40%. It provides outstanding resistance to corrosion and erosion in saltwater and brackish environments. This alloy is thermally stable and maintains performance across a wide temperature range. It is non-magnetic and offers good fabricability and weldability, making it ideal for marine and industrial applications.
| Standard | DIN, ASTM, BS and all International Standards |
|---|---|
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |

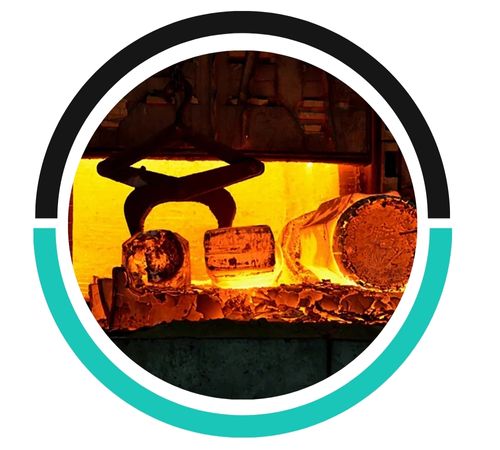

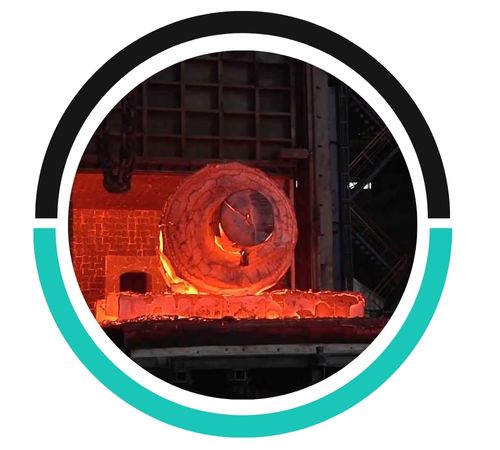

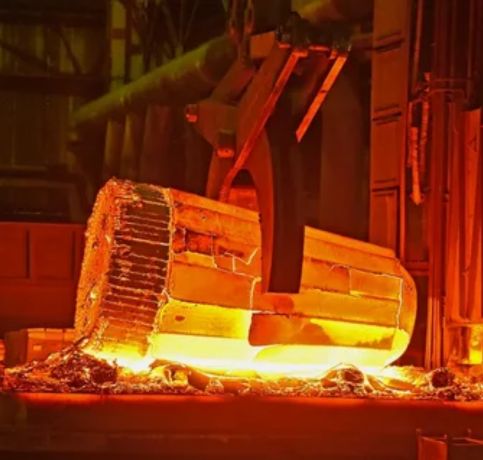

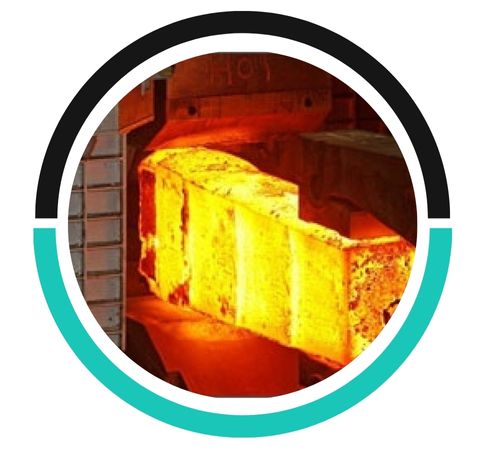

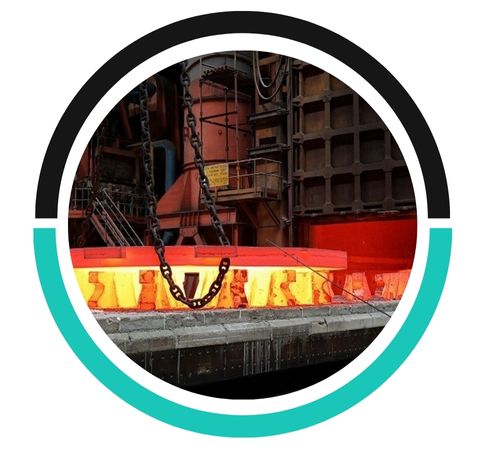

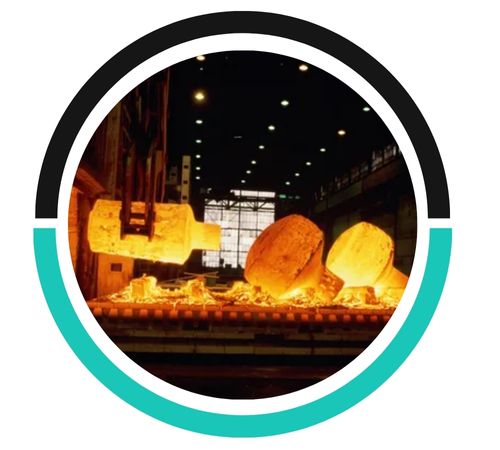

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni 70-30 | 65.0 min | 1 max | .05 max | 29-33 | 0.4-1.0 | 1 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Copper Nickel 70-30 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Copper Nickel 70/30 | 2.0882 | C71500 |
The durability of Copper Nickel 70/30 forgings is ensured by excellent corrosion resistance, high tensile strength, superior weldability, resistance to seawater, anti-biofouling properties, and consistent alloy composition for enhanced performance.
Copper Nickel 70/30 forgings offer superior strength, enhanced corrosion resistance, improved material utilization, reduced waste, better grain structure, and higher durability compared to machining, making them ideal for demanding applications.
Compatible welding processes for Copper Nickel 70/30 forgings include TIG (GTAW), MIG (GMAW), and shielded metal arc welding (SMAW), ensuring strong joints, excellent corrosion resistance, and minimal thermal distortion.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
