Brian Fasteners, a Houston, USA-based manufacturer and distributor, is a leading maker and supplier of Copper C10300 rods and bars. With the latest production methods and strict quality testing procedures, the organization produces high–quality C10300 products noted for their superior conductivity and strength. It focuses on accuracy rolling and finishing to have each bar achieve strict dimensional tolerances and surface quality specifications. Electrical, industrial, and architectural markets are served by the company, which is committed to delivering fast turnaround, technical support, and competitive pricing. With its position as a trusted partner for Copper C10300 uses, Brian Fasteners emphasizes its commitment to high-quality, reliable copper solutions in the American manufacturing environment.
Copper C10300 or oxygen-free electronic (OFE) copper has a minimum purity of 99.99% and contains almost no oxygen. This extremely pure grade offers electrical conductivity in the range 100–101% IACS and high thermal conductivity. Tensile strength is usually between 200 and 240 MPa, with yield strength approximating 70–90 MPa. It possesses significant ductility, with elongation mostly greater than 30%. The lack of oxygen reduces the embrittlement danger, making C10300 particularly desirable for use in cases that need high conductivity, improved corrosion resistance, and superior formability.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |

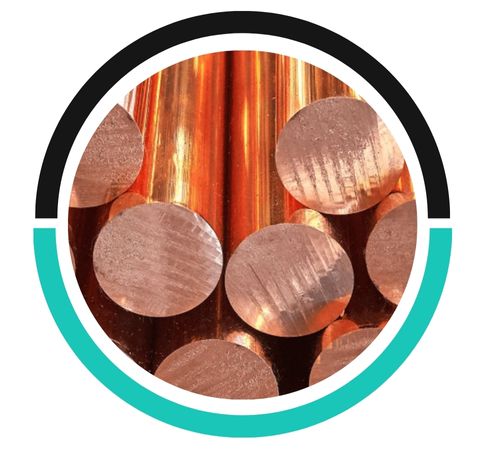

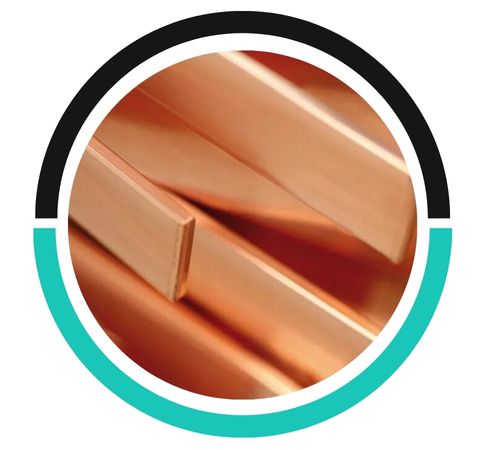

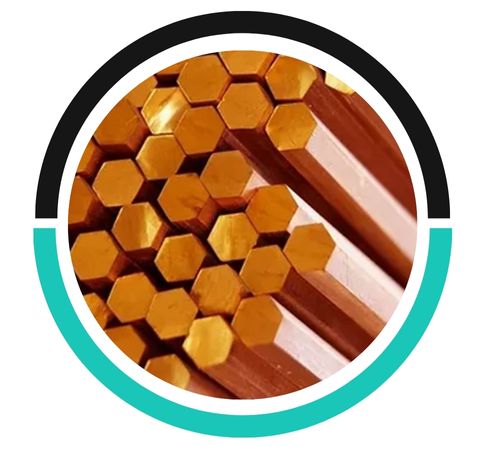

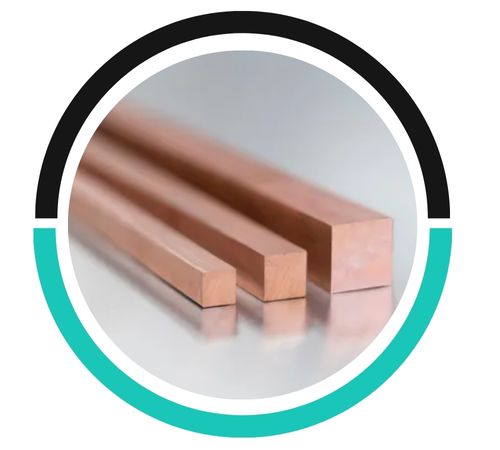

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Copper Grades | C10300 |
| Treatment | Maximum* | Minimum* |
|---|---|---|
| * Temperature is measured in Fahrenheit. | ||
| Hot Working Temperature | 1600 | 1400 |
| Annealing | 1200 | 700 |
| Alloy Designation | |
|---|---|
| DIN CEN/TS 13388 | CW021A |
| EN | Cu-HCP |
| UNS | C10300 |
| Typical values in annealed temper at 20 °C | |||
|---|---|---|---|
| Thermal expansion coefficient | 20 .. 300 °C | 16.9 | 10-6/K |
| Density | 8.92 g/cm³ | ||
| Thermal conductivity | 385 | W/(m·K) | |
| Modulus of elasticity | GPa | 130 | GPa |
| Specific heat capacity | 0.385 J/(g·K) | ||
| Electrical conductivity | IACS | 98 % | |
| Electrical conductivity | MS/m | 57 | MS/m |
| Thermal coefficient of electrical resistance | (0 .. 100 °C) | 3.7 | 10-3/K |
| Mechanical Properties (EN 1652) | ||||||
| Tensile Strength Rm | Hardness HV * | Temper | Yield Strength Minimum Rp0.2 | Elongation Minimum A50mm | Bending 90° gw bw rel. Bending Radius R/T | |
|---|---|---|---|---|---|---|
| MPa | HV | MPa % | Strip Thickness ≤ 0.50mm | |||
| ≥ 360 | ≥ 110 | R360 | 320 | 2 | 0 | 0.5 |
| 240 .. 300 | 65 .. 95 | R240 | 180 | 8 | 0 | 0 |
| 220 .. 260 | 40 .. 65 | R220 | ≤ 140 * | 33 | 0 | 0 |
| 290 .. 360 | 90 .. 110 | R290 | 250 | 4 | 0 | 0 |
To select the right Copper C10300 Bars and Rods, consider factors such as conductivity, corrosion resistance, strength requirements, and the specific environmental conditions of your application.
Yes, Copper C10300 Bars and Rods are fully recyclable, retaining their properties even after recycling, making them an eco-friendly option for sustainable industrial applications.
Yes, Copper C10300 Bars and Rods can be used for potable water applications due to their corrosion resistance, antimicrobial properties, and compliance with drinking water standards.
Copper C10300 bars and rods from Brian Fasteners find extensive applications in uses where ultra-high conductivity and purity are demanded. They are particularly suitable for precision electrical connectors, switchgear parts, and high-performance audio/video devices. In defense and aerospace, C10300 is used to provide consistent conductivity in communication and avionics systems. It finds application in semiconductor manufacturing equipment and vacuum systems because of low outgassing properties. Cold-workability of the material makes it applicable in custom–machined parts and complex architectural fittings. With purity and tight tolerances, Brian Fasteners‘ Copper C10300 bars find their application in critical usage in electronics, aerospace, and high-level industrial systems.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
