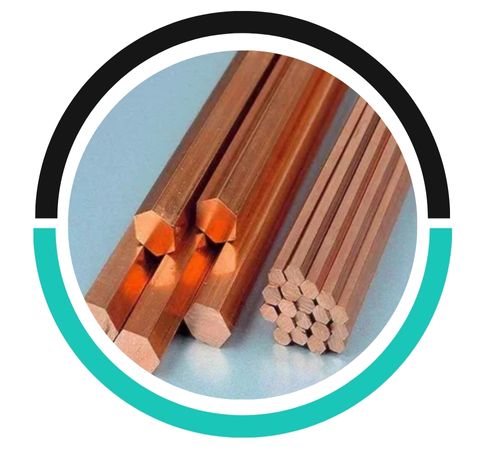

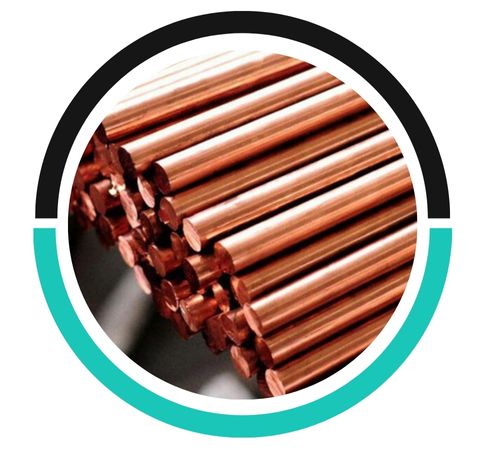

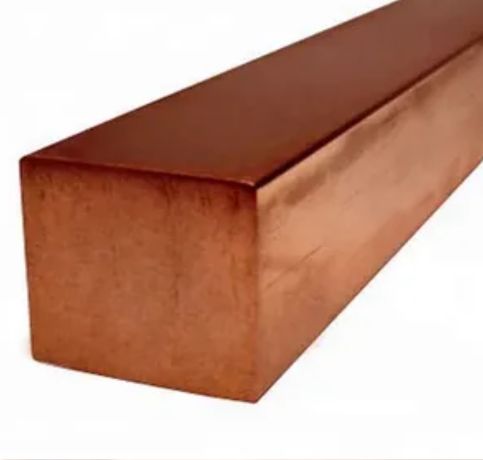

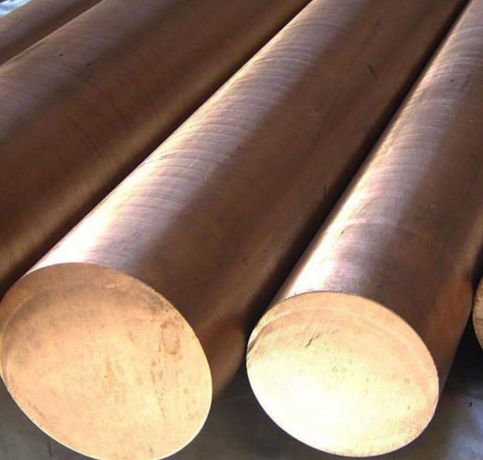

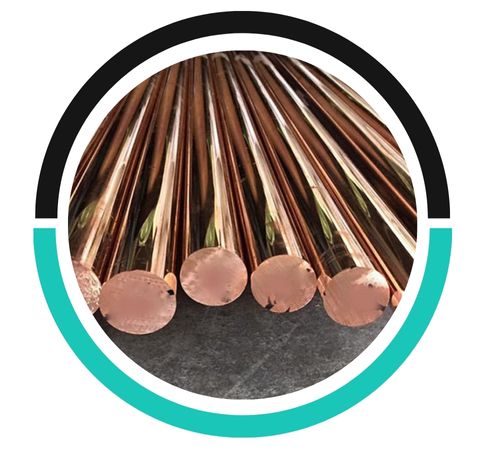

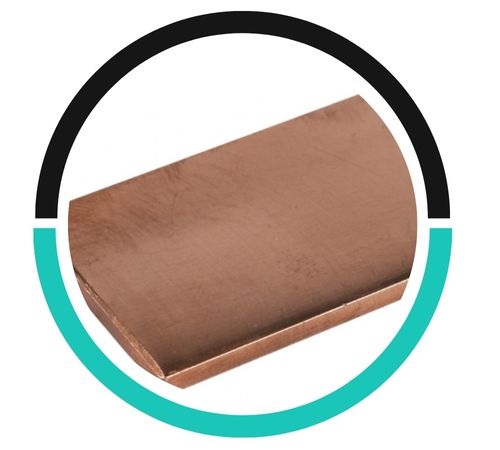

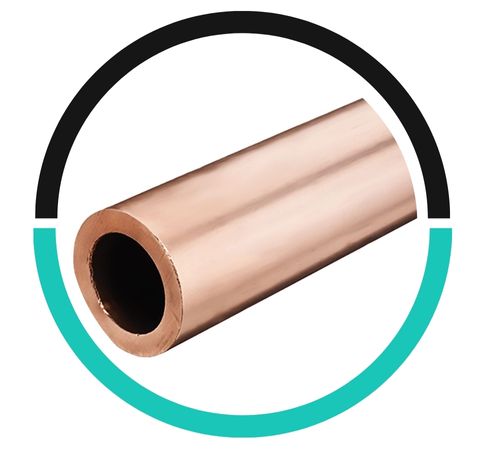

Brian Fasteners produces and distributes general-grade Beryllium Copper Bars and Rods from Houston, offering strength, conductivity, and corrosion resistance all in one solution. The alloys are intended for high-performance uses such as electrical, aerospace, and mechanical systems. Our beryllium copper inventory consists of high-strength and high-conductivity options in many tempers and finishes. They are offered in full accordance with ASTM standards, with every bar precision-engineered to client specifications. With improved formability and dimensional stability, our Beryllium Copper bars provide enduring performance in harsh environments.
Provided in high-conductivity (C17510/C17500) and high-strength (C17200/C17300) grades. Content of beryllium varies between 0.4–2.0% according to grade. Strength between 800 MPa to 1,400 MPa; conductivity between 20–60% IACS. Non-magnetic, wear-resisting, and age-hardening capable. Outstanding fatigue life, thermal resistance, and stability under cyclic stress.
| Specifications : | ASTM B441 / ASME SB196 |
| Dimensions : | : EN, DIN, JIS, ASTM, BS, ASME, AISI, ASTM, ASME |
| Thickness : | Range from .008″ to .0125″ |
| Length : | 9 – 12 metres |
| Form : | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Finish : | Cold drawn, Bright drawn, Centreless ground, Cold finished, Peeled and turned, Smooth turned, Slit rolled edge, Hot finished, Hot rolled, Rough turned/peeled, Peeled and reeled. |
| Temper : | solution heat-treated TB00 (A), TF00 (AT) and TH04 (HT), and cold-drawn hard TD04 (H). |
| Chemical Requirements | Grade I |
| Cu | 56 to 58 % |
| Pb | 2 to 3.50 % |
| Fe | 0.3% Max |
| Zn | Balance |
| Other Impurities excel Fe. | 0.75% Max |
| Element | Beryllium Copper Alloys |
| Tensile Strength (Min) | 1050 |
| Yield Strength (0.2%Offset) Min | 850 |
| Elongation %(Min) | 2 |
| Hardness HRC (Min) | 35 |
To select the right Beryllium Copper bars, consider factors like strength, conductivity, corrosion resistance, temperature range, and machining requirements based on your specific application needs and environmental conditions.
Yes, Beryllium Copper rods are customizable in terms of length, diameter, and specific alloy grades, catering to various industrial applications like electrical, mechanical, and aerospace needs.
Applied in bushings, seals, sensor housings, springs, contacts, and connectors. Commonly used in telecommunications, robotics, defense, and aerospace. Most suitable for resistance welding, load–bearing electrical components, and high–current applications. Brian Fasteners provides beryllium copper rods ready to be machined or used directly in any application where precision, conductivity, and mechanical strength are required.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
