Aluminium Hex Bar and Rods

George Metals, based in Houston, USA, stands out as a top manufacturer and supplier of Aluminum Hex Bars and Rods. Known for their commitment to high-quality standards and precision in manufacturing, George Metals offers aluminum products designed to meet the diverse needs of various industries. Aluminum Hex Bars and Rods are prized for their lightweight nature, resistance to corrosion, and impressive strength-to-weight ratio. Catering to sectors like aerospace, construction, and automotive, George Metals guarantees that its aluminum offerings adhere to strict quality standards, ensuring reliable performance across a wide range of applications.

Aluminum Hexagon Rod Supplier USA, Stockist of Aluminium Hex Rods In United kingdom, Aluminium Alloy Metric Hex Bar Houston, Aluminium Alloy Hex Rod Exporter West Houston, Aluminum Alloy Hexagon Bar Houston, Al Metric Hex Rod Texas, Aluminum Alloy Hex Bars Manufacturer California.

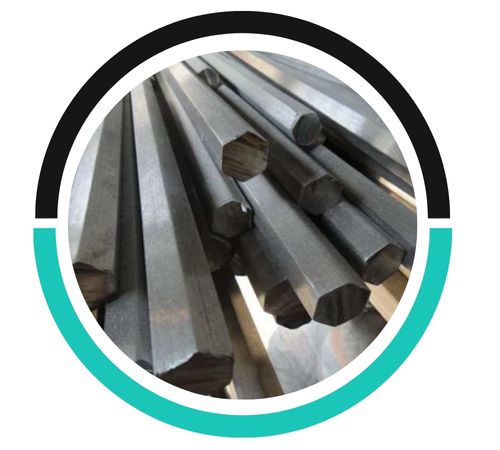

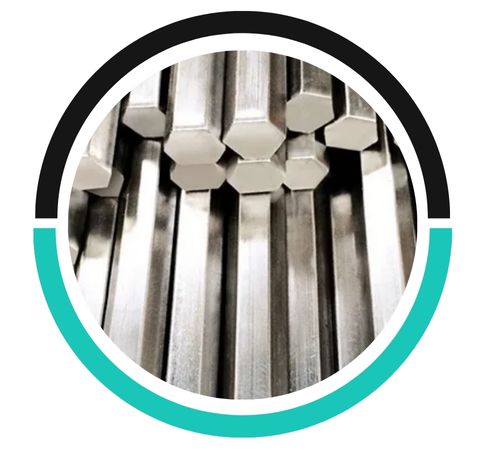

Aluminium Hex Bar

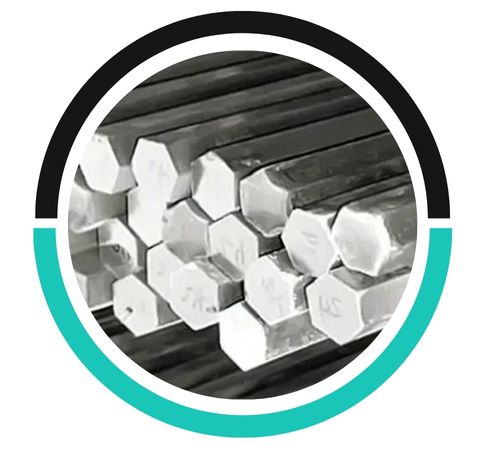

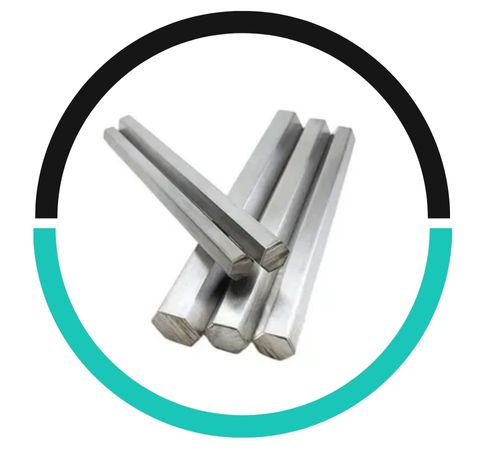

Aluminium Hexagonal Rod

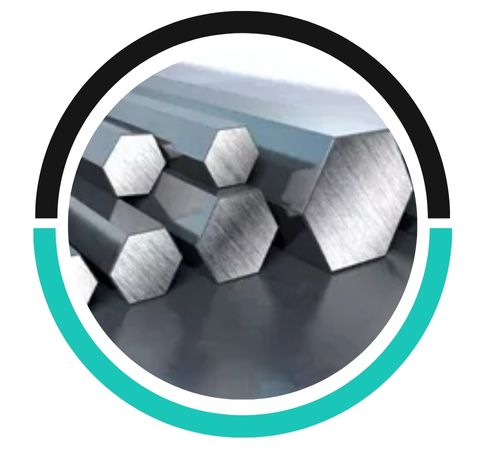

Aluminium Bright Hex Bar

Aluminum Hex Bars and Rods are usually made from premium aluminum alloys, such as 6061 or 7075. These alloys include elements like magnesium, silicon, and zinc, which boost their strength and resistance to corrosion. Depending on the alloy, these bars can have a tensile strength between 310 MPa and 570 MPa, along with excellent machinability and weldability. Their lightweight characteristics, paired with good thermal and electrical conductivity, make them ideal for both structural and functional uses in various industries.

Aluminum Metric Hex Bars Supplier USA, Aluminium Hex Bar Stockist United kingdom, Aluminium Alloy Hexagon Bar Exporter In Houston, Aluminum Alloy Hex Bar West Houston, Al Hexagon Bar Manufacturer Houston, Aluminium Alloy Hex Rod Texas, Aluminum Alloy Hex Rod Supplier In California.

Aluminium Hex Bar and Rods Specifications

Standards : ASTM B221, B211, B565, B316, AMS 4121 2014

Temper : O

Standard : ASTM, ASME, AMS, GB/T, JIS

Length : 1000-6000

Size : 5 mm To 500 mm

Diameter : 6-150

Finish : Bright, Polish & Black

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet

Chemical Compositions of Aluminium Hex Bar and Rods

Alloy	Fe	Si	Mg	Mn	Cu	Zn	Ti	Cr	Others	AI
1100 (min)	0.35	0.25	0.01	0.01	0.05	0.01	0.020	Trace	0.05 (each)	99.60%
1100 (max)	0.50	0.35	0.03	0.05	0.20	0.05	0.030	Trace	0.15 (total)	remainder
5083	0.40 max	0.40 max	4.0 / 4.90	0.40 / 1.0	0.10 max	0.25 max	0.15 max	0.05 / 0.25	0.05 max	Bal
6061	0.7	0.4-0.8	0.8-1.2	0.15	0.15-0.4	0.25	0.15	0.15-0.35	0.005/0.15	Remainder
6068	0.50 max	0.7 – 1.3	0.06-1.20	0.40-1.00	0.10 max	0.20 max	0.10 max	0.25 max	0.05 max	Bal
7075 min			2.10		1.20	5.10		0.18
7075 max	0.50	0.40	2.90	0.30	2.00	6.10	0.20	0.28	0.05

Aluminium Hex Bar and Rods Mechanical Properties

Alloy	Temper	UTS(Mpa)		% Elongation			Tensile Strength	Hardness Brinell	Proof Stress	Yield Strength (PSI)	Shear Strength (PSI)	Brinell Hardness
Alloy	Temper	Min	Max	0.5 mm -0.8 mm	0.81 mm – 1.30 mm	1.30 mm – above
1100	O	75	110	20	25	29
	H12	95	130	5	6	7
	H14	110	145	3	4	5
	H16	130	165	2	3	4
	H18	150	—	2	2	3
5083				12 Min %			275 – 350 MPa	75 HB	125 Min MPa
6061				–			45,000	12		40,000	31,000	95
6082				8			295	95	–	240	–	–
7075 T6, T651				11				83-572		73- 503		150
7075 T73, T7351				13				73-503		63-434		NA

You Need Our Support, to Have Any Projects?

Test Certificate

Why George Metals?

Packaging

Equivalent Grades Aluminium Hex Bar and Rods

Grade	UNS	USA	Japan	France	ISO	WNR	EN	DIN	ISO	BS (OLD)
1100	A91100	AA1100	JIS A1100P	NF 1100	Al 99.0 Cu.	–	–	–	–	–
6082	A96082	AA6082	–	–	–	3.2315	AW-6082	AlMgSi1	AlSi1MgMn	HE30
5083	A95083	5083	–	–	AlMg4,5Mn0,7	3.3547	AW-AlMg4,5Mn0,7	AlMg4,5Mn	–	–
6061	A96061	AA6061	–	–	–	3.3211	AW-AlMg1SiCu EN AW-6061	AlMgSiCu	AlMg1SiCu	HE20
7075	A97075		7075			3.4365	ENAW-AlZn5.5MgCu EN AW-7075	AlZnMgCu1.5	AlZn6MgCu	7075 L95 L96, V95

Sizes Chart of Aluminium Hex Bar and Rods

HEXAGONS
Size(mm)	WT PER FEET IN KGS	WT PER MTR IN KGS
16	0.55	1.79
18	0.69	2.27
20	0.85	2.80
22	1.03	3.39
25	1.33	4.38
28	1.67	5.49
30	1.92	6.30
32	2.19	7.17
36	2.77	9.07
38	3.08	10.11
40	3.41	11.20
45	4.32	14.18
50	5.34	17.50
56	–	–
60	–	–
65	–	–
70	–	–
75	–	–
80	–	–
90	–	–
100	–	–

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Aluminium Hex Bar and Rods Types

Aluminium Alloy Rectangular Bar Stockist USA, Aluminum Alloy Rod United kingdom, Best Price of Aluminium Rod Houston, Al Bars West Houston, SUS Aluminum Alloy Rod Houston, Aluminium Alloy Round Bar Texas, Al Hollow Bar California, Aluminium Rod Exporter in Houston, USA.

Aluminium Hex Bar and Rods Uses

Aluminum Hex Bars and Rods are widely utilized in industries where lightweight and corrosion-resistant materials are crucial. In the aerospace and automotive fields, they serve as structural components, shafts, and fittings. In construction, these bars are used in frameworks, railings, and architectural designs. Their superb machinability makes them perfect for crafting precision parts like fasteners and connectors. Moreover, they are also employed in the marine industry and electrical systems due to their non-corrosive nature and excellent conductivity, providing a versatile and reliable solution for a range of industrial applications.

Our Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
