Aluminium 5754 Bar and Rods

George Metals, based in Houston, USA, stands out as a top manufacturer and supplier of premium Aluminium 5754 Bars and Rods. These products are celebrated for their remarkable corrosion resistance, strength, and weldability. As a non-heat-treatable alloy from the 5000 series, Aluminium 5754 excels in resisting seawater, industrial pollutants, and wear. George Metals crafts 5754 bars and rods in a variety of diameters and lengths, adhering to ASTM B211 and other international standards. Their durability, formability, and ability to withstand tough environmental conditions make these products popular in marine, structural, automotive, pressure vessel, and food processing sectors.

Aluminum 5754 Rods Dealer in West Houston, Aluminium 5754 Round Bars Manufacturer in West Houston, Aluminium 5754 Alloy Square Bars Supplier in Texas, UNS A95754 Aluminum Alloy Flat Bars Size Chart, 5754 Al Rectangular Bars Supplier in California, Aluminum 5754 Bars Price List in Texas, Aluminium 5754 Round Bars Exporter Manufacturer in Houston, Stockist of 3.3535 Aluminium Alloy Round Bars in Houston

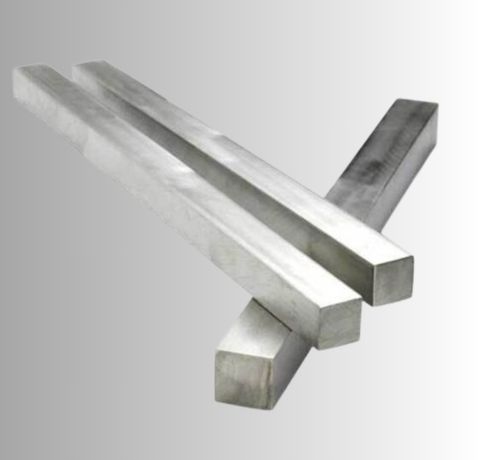

Aluminium 5754 Square Rods

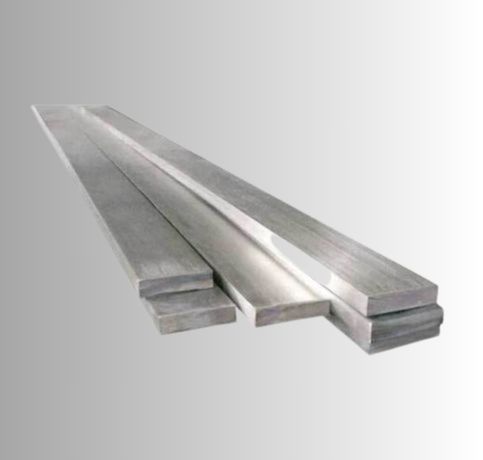

Aluminium 5754 Rectangular Bars

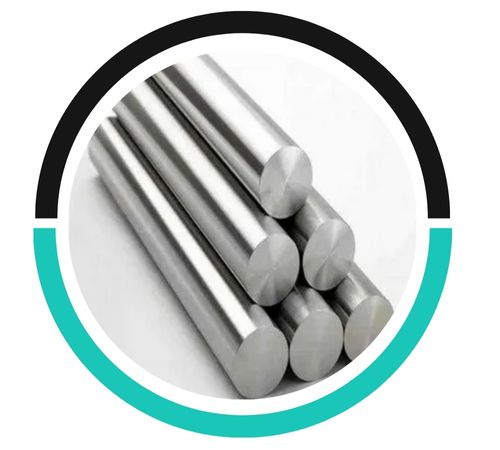

Aluminium 5754 Round Bars

What is Aluminium 5754 Bar and Rods?

Aluminium 5754 Bars and Rods from George Metals are mainly made up of aluminium (≥95%), along with 2.6–3.6% magnesium, and small amounts of chromium, iron, manganese, and silicon. This alloy strikes a balance between moderate to high strength and excellent corrosion resistance. Typical mechanical properties include a tensile strength ranging from 220–330 MPa, yield strength around 130–280 MPa, and elongation of up to 20%, depending on the temper. Available in O, H111, H22, and H32 tempers, these rods are non-heat-treatable but can be strengthened through cold working, making them perfect for high-fatigue and corrosive environments.

Aluminium Alloy 5754 Rectangular Bars Supplier in Texas, Aluminum Alloy 5754 Rods Exporter in USA, Aluminium 5754 Round Bars Stockist in Houston, UNS A95754 Aluminum Hex Bars Supplier in USA, DIN 3.3535 Al Cold Drawn Round Bars Distributor in Texas, Aluminium 5754 Rods Stockist California, Aluminum 5754 Rods Size Chart in California, Aluminium Alloy 5754 Solid Round Bars USA, 5754 Aluminium Square Bar Supplier in Texas

Aluminium 5754 Bar and Rods Specification

Aluminium Alloy	ASTM B211, B211, B565, B316 5082, AMS 4121
Standard	ASTM, ASME, AMS, GB/T, JIS
Aluminium Round Bar Temper	O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Aluminium Bar Form	Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish
Aluminium Round Bar Diameter	0.1-600mm,etc
Aluminium Hexagonal Bar	0.1-600mm,etc
Aluminium Angle Bar Size	0.5mm40mm40mm-20mm400mm400mm
Aluminium Flat Bar Thickness	0.1-600mm,etc
Aluminium Flat Bar Size	1-2500mm, etc
Aluminium Round Bar Length	1-12m, Random, Fix & Cut Length or as per clients’ requirement
Aluminium Bar	Bright, Polish & Black

Chemical Compositions of Aluminium 5754 Bar and Rods

Mg	Mn	Si	Cu	Fe	Cr	Zn	Ti	Cu	Other (Each)	Others (Total)	Al
2.60 – 3.60	0.0 – 0.50	0.0 – 0.40	0.0 – 0.40	0.0 – 0.30	0.0 – 0.20	0.0 – 0.15	0.0 – 0.10	0.0 – 0.05	0.0 – 0.05	0.0 – 0.15	Balance

Aluminium 5754 Bar and Rods Mechanical Properties

Proof Stress	Tensile Strength	Elongation at 50 mm	Hardness Brinell
80 Min MPa	190 – 260MPa	12 Min %	52 HB

Aluminium 5754 Bar and Rods Equivalent Grades

UNS	EN	DIN	ISO	USA	WNR
A95754	EN AW-5754	AlMg3	AlMg3	AA5754	3.3535

You Need Our Support, to Have Any Projects?

Test Certificate

Why George Metals?

Packaging

Aluminium 5754 Bar and Rods Size Chart

Size in mm	Average Weight
Size in mm	KG/MTR	KG/FT
10	0.62	0.18
12	0.90	0.30
14	1.20	0.40
16	1.60	0.50
18	2.00	0.60
20	2.50	0.80
22	3.00	0.90
24	3.56	1.08
25	3.90	1.20
28	4.80	1.50
30	5.55	1.69
32	6.30	1.90
34	7.14	2.18
36	8.00	2.44
40	9.90	3.00
45	12.49	3.81
50	15.40	4.70
56	19.34	5.89
60	22.20	6.80
63	24.47	7.46
63.5	24.86	7.58
65	26.05	7.94
70	30.20	9.20
73	32.86	10.00
75	34.72	10.58
78	37.51	11.43
80	39.50	12.00
83	42.47	12.95
85	44.55	13.58
90	50.00	15.20
92	52.19	15.91
93	53.39	16.27
95	55.65	16.95
100	61.66	18.79
105	67.98	20.72
110	74.60	22.74
115	81.64	24.88
125	96.34	29.36

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Aluminium 5754 Bar and Rods Types

Aluminum 5754 Flat Rods Exporter in Texas, Aluminium 5754 Flat Bars USA, 3.3535 Aluminum Hollow Bar Manufacturer in California, UNS A95754 Aluminium Alloy Round Bars Distributor in USA, Al 5754 Polished Rods Dealer in West Houston, 5754 Aluminum Bars Supplier in USA, Aluminium Alloy 5754 Hollow Rods Price List in Houston, Aluminum 5754 Rectangular Bars Supplier in Houston, Aluminium Alloy 5754 Hexagonal Bars Exporter in West Houston, Aluminium 5754 T-Bars Exporter in USA

Aluminium 5754 Bar and Rods Uses

George Metals’ Aluminium 5754 Bars and Rods find extensive applications in marine structures, shipbuilding, vehicle frames, flooring, pressure vessels, and chemical tanks, thanks to their outstanding corrosion resistance, particularly in saltwater and industrial settings. Their good formability and moderate strength make them ideal for automotive body panels, welded constructions, and cryogenic uses. Additionally, they are utilized in the food and beverage industry for lightweight and hygienic equipment. George Metals guarantees precision in dimensions and surface finish with every batch, ensuring that their Aluminium 5754 bars deliver reliable performance in both structural and industrial applications.
